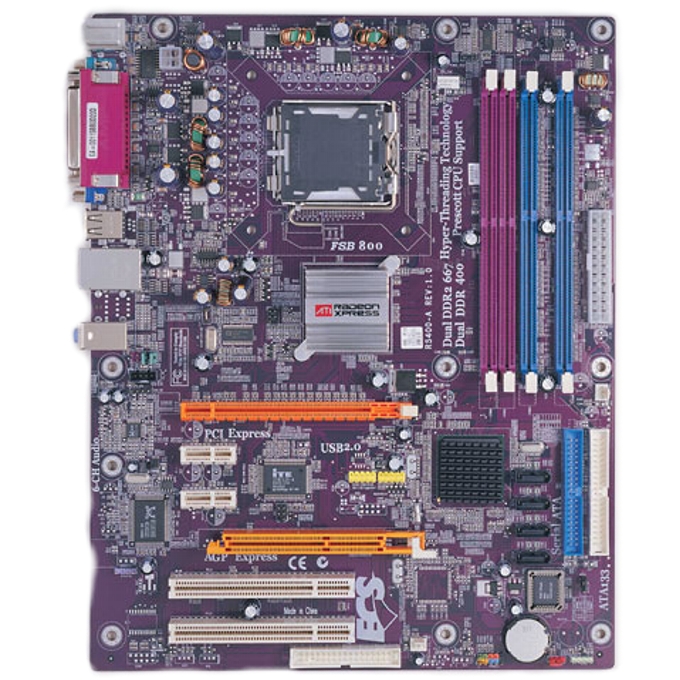

Specification
CPU
LGA775 socket for latest Intel Pentium 4 / Celeron D processor
FSB 800/533 MHz
Support Hyper-Threading Technology
CHIPSET
ATI® RS400 & SB400
North Bridge: ATI® RS 400
South Bridge: ATI® SB 400
GRAPHICS
On Chip (Radeon X300-based. 2D/3D graphic engine)
MEMORY
Dual-channel DDRI & DDR2 memory architecture
2 x 184-pin DDR DIMM or 2 x 240-pin DDR2 DIMM socket support up to 2 GB
Support DDR400/333 DDR SDRAM or DDR2 667/533/400 DDR2 SDRAM
EXPANSION SLOT
1 x PCI Express x16 slot
2 x PCI Express x1 slots
2 x PCI slots
1 x AGP Express slot
STORAGE
Supported by SB 400
-- 4 x Ultra DMA133/100/66/33 devices
-- 4 x Serial ATA devices
RAID0 & RAID1 configuration
AUDIO
Realtek ALC655 6-Channel audio CODEC
Compliant with AC'97 2.3 specification
LAN
Realtek RTL8100C 10/100 Mbps Fast Ethernet Controller
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x VGA port
1 x RJ45 LAN connector
1 x Parallel port (LPT)
1 x Serial port (COM1)
1 x Audio port (Line-in, Line-out, Mic-in)
INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector supports two 360K~2.88MB FDDs
2 x IDE connectors
4 x Serial ATA connectors
2 x USB 2.0 headers support additional 4 USB Ports
1 x Speaker header
1 x SPDIF out header
1 x Front panel switch/LED header
1 x Front panel audio header
1 x TV out header
CD in/ AUX in headers
CPUFAN/PWRFAN/SYSFAN connectors
SYSTEM BIOS
Award BIOS with 4Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR
ATX Size, 305mm*244mm
