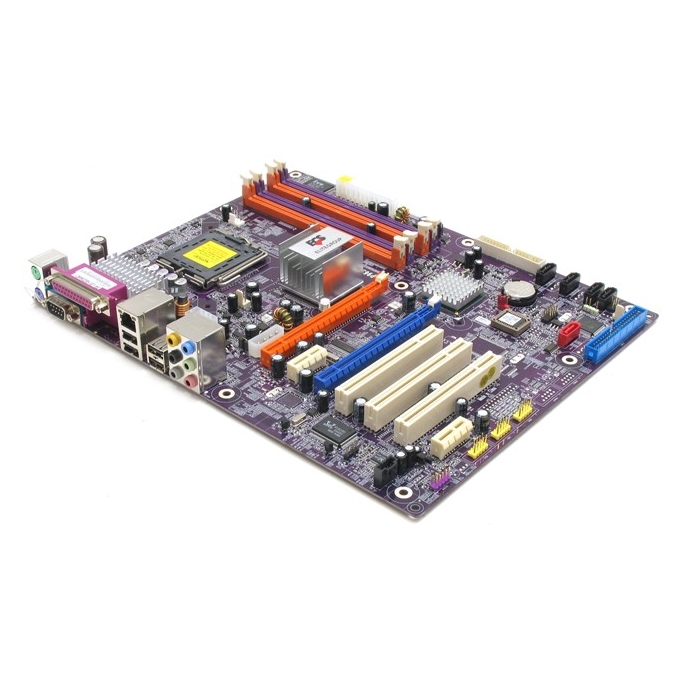

CPU
LGA775 socket for Intel® CoreTM2 Extreme / CoreTM2 Duo /Pentium 4 / Pentium D /Celeron D Processors
FSB 1066/800/533 MHz
Support Hyper-Threading Technology
CHIPSET
Intel® P965 & ICH8
North Bridge: Intel® P965
South Bridge: Intel® ICH8
MEMORY
4 x 240-pin DDR2 DIMM socket support up to 8 GB
Support DDR2 800/667/533 MHz DDR2 Memory
EXPANSION SLOT
2 x PCI Express x16 slot (Orange : x16 mode, Blue : x4 mode)
2 x PCI Express x1 slot (x1 or *diabled mode)
3 x PCI slots
*when use two PCI Express VGA card, this slot is disable
STORAGE
Supported by Intel® ICH8
4 x Serial ATAII 3.0Gb/s devices
Supported by JMicron® JMB361
2 x Ultra DMA133/100/66 devices
1xSATAII 3.0Gb/s devices
RAID0 & RAID1 configuration
AUDIO
Realtek ALC883 8-channel audio CODEC
LAN
Realtek RTL8110SC Giga LAN Controller
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
1 x Parallel port (LPT)
4 x USB ports
1 x RJ45 LAN connector
1 x Serial port (COM1)
1 x Audio port (Line-in,4x Line-out, Mic_in)
INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector
1 x Auxiliary 8-pin +12V connector
1 x IDE connector
1 x IrDA for SIR header
1 x Speaker header
3 x USB 2.0 headers support additional 6 USB ports
5 x Serial ATA connectors
1 x Front panel switch/LED header
1 x Front panel audio header
1 x CD in header
CPUFAN/NB_FAN/3x SYSFAN connectors
SYSTEM BIOS
Award BIOS with 4Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Full support for ACPI revision 2.0 specification
FORM FACTOR
ATX Size, 305mm*244mm
