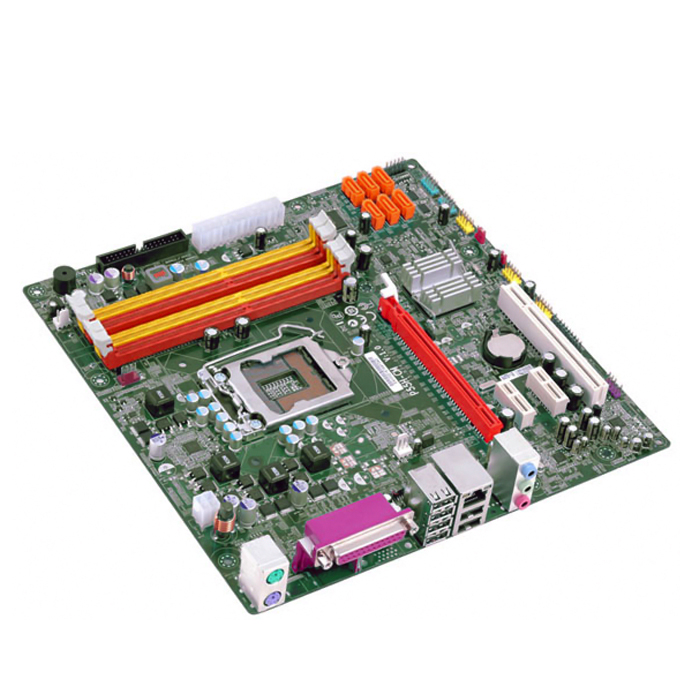

Elitegroup P55H-CM (V1.0)
ECS P55H-CM features Intel® innovative 2-chip architecture to provide great performance with Intel® LGA1156 for Core™ i7 & Core™ i5 processors and support Dual channel DDR3 1333 memory. Equipped with Intel Giga Lan chipset and PCI-E x 16 Gen 2.0 interface. P55H-CM is the best choice for your computing experience.
CPU
Support the Intel® LGA1156 Core™ i7 and Intel® Core™ i5 processors
CHIPSET
Featuring the Intel® P55 Express Chipset
MEMORY
Dual-channel DDR3 memory architecture
4 x 240-pin DDR3 DIMM socket support up to 16GB
Support DDR3 1333/1066/800 SDRAM
EXPANSION SLOT
1 x PCI Express x16 slot
2 x PCI Express x1 slots
1 x PCI slot
STORAGE
Support by Intel® P55
6 x Serial ATAII 3.0Gb/s devices
RAID0, RAID1, RAID5, RAID 10 configuration
AUDIO
Realtek ALC662 6-channel HD Audio codec (Realtek ALC888 8-channel HD Audio codec optional)
6 Channel High Definition Audio (Realtek ALC662 or VIA VT1708B)
LAN
Intel® 82578 Gigabit Lan Controller
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
6 x USB ports
1 x RJ45 LAN connector
1 x Audio port
1 x LPT port
INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply connector
1 x CPU_FAN connector
1 x SYS Fan header
1 x FDD connector
6 x Serial ATA 3Gb/s connectors
1 x PWR_FAN connector
1 x 4-pin ATX 12V connector
1 x Front panel switch/LED header
1 x Buzzer
2 x COM port header
1 x Front panel audio header
3 x USB 2.0 headers support additional 6 USB ports
SYSTEM BIOS
AMI BIOS with 16Mb SPI Flash ROM
Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Supports ACPI & DMI
Audio, LAN, can be disabled in BIOS
F11 hot key for boot up devices option
Support Page Up clear CMOS Hotkey
Supports ACPI 3.0 revision
FORM FACTOR
Micro-ATX Size, 244mm*244mm
