Дънна платка Elitegroup P55H-A2, P55, LGA1156, DDR3, PCI-E, SB5.1, Lan, SATA RAID 0,1,5,10, ATX

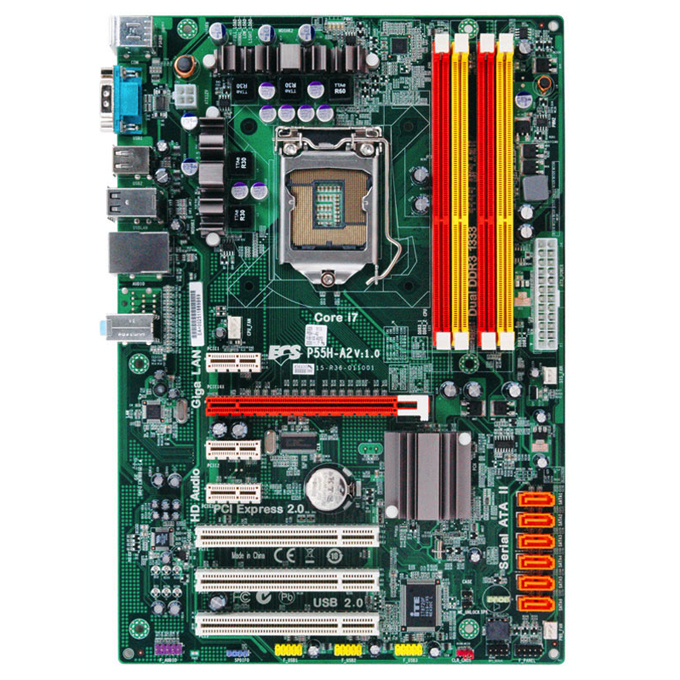

Elitegroup P55H-A2

CPU
Support the Intel® LGA1156 Core™ i7 and Intel® Core™ i5 processors

CHIPSET
Featuring the Intel® P55 Express Chipset

MEMORY
Dual-channel DDR3 memory architecture
4 x 240-pin DDR3 DIMM socket support up to 16GB
Support DDR3 800/1066/1333/1600(XMP)/2100(OC)

EXPANSION SLOT
1 x PCI Express x16 Gen2.0 slot
3 x PCI Express x1 slots
3 x PCI slots

STORAGE
Support by Intel® P55
6 x Serial ATAII 3.0Gb/s devices
RAID0, RAID1, RAID5, RAID 10 configuration

AUDIO
VIA® VT1705 6-channel audio CODEC

LAN
Realtek RTL8111DL PCIe GigaLAN controller (co-lay 10/100 LAN)

REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
1 x Serial port (COM1)
1 x Audio port (Line-in, Line-out, Mic-in)
8 x USB ports
1 x RJ45 LAN connector

INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply connector
1 x 4-pin 12V Connector
1 x 4-pin CPU_FAN connector
1 x 3-pin PWR_FAN connector (Optional)
1 x 3-pin SYS_FAN connector
1 x Speaker header
1 x Front panel switch/LED header
1 x Front panel audio header
1 x SPDIF out header
1 x Clear CMOS header
6 x Serial ATA 3Gb/s connectors
3 x USB 2.0 headers support additional 6 USB ports
1 x onboard Buzzer
1 x Chassis intrusion header
1 x Case Open header
1x 2-pin ME_UNLOCK header

SYSTEM BIOS
AMI BIOS with 16Mb SPI Flash ROM
Supports Plug and Play, STR(S3)/STD(S4), Hardware monitor, PCI interrupt selection, ACPI & DMI
F11 hot key for boot up devices option
Support over-clocking
Support eJIFFY
Support Page Up clear CMOS Hotkey
Supports ACPI revision 3.0 specification
Support ECS M.I.B II Utility
CPU voltage adjustable
Memory voltage adjustable
NB Chipset Voltage Adjustable
SB Chipset Voltage Adjustable
HT Voltage Adjustable
External Clock Adjustable
Multiple Frequency Adjustable by CPU

FORM FACTOR
ATX Size, 305mm*210mm
