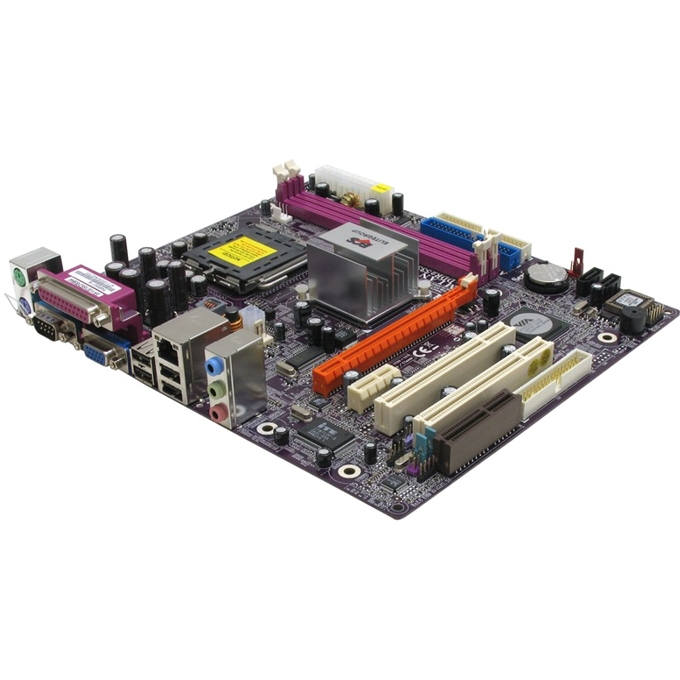

Elitegroup P4M890T-M
CPU
LGA775 socket for latest Intel® Core 2 Duo / Celeron D processor
FSB 1066/800/533 MHz
Support Hyper-Threading Technology
CHIPSET
VIA® P4M890 & VT8237A
North Bridge: VIA® P4M890
South Bridge: VIA® VT8237A
GRAPHICS
Integrated S3 UniChrome Pro 2D/3D Graphics
Share memory : 64MB
MEMORY
2 x 240-pin DDR2 DIMM socket support up to 4 GB
Support DDR2 533/400 DDR SDRAM
EXPANSION SLOT
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots
STORAGE
Support by VIA® VT8237A
4 x Ultra DMA133/100/66 devices
2 x Serial ATA devices
RAID0 & RAID1 configuration
AUDIO
Realtek ALC660 6-channel HD audio CODEC
LAN
VIA® VT6103L 10/100 Mbps Fast Ethernet PHY
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
1 x Parallel port (LPT1) (Optional)
1 x Serial port (COM1)
1 x VGA port
4 x USB ports
1 x RJ45 LAN connector
1 x Audio port (Line-in, Line-out, Mic-in)
INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector
2 x IDE connectors
2 x Serial ATA connectors
2 x USB 2.0 headers support additional 4 USB Ports
1 x Buzzer
1 x IrDA for SIR header
1 x Front panel switch/LED header
1 x Front panel audio header
AUX-in header
1 x CD in header
CPUFAN/SYSFAN connectors
SYSTEM BIOS
AMI BIOS with 4Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR
Micro-ATX Size, 244mm*210mm
