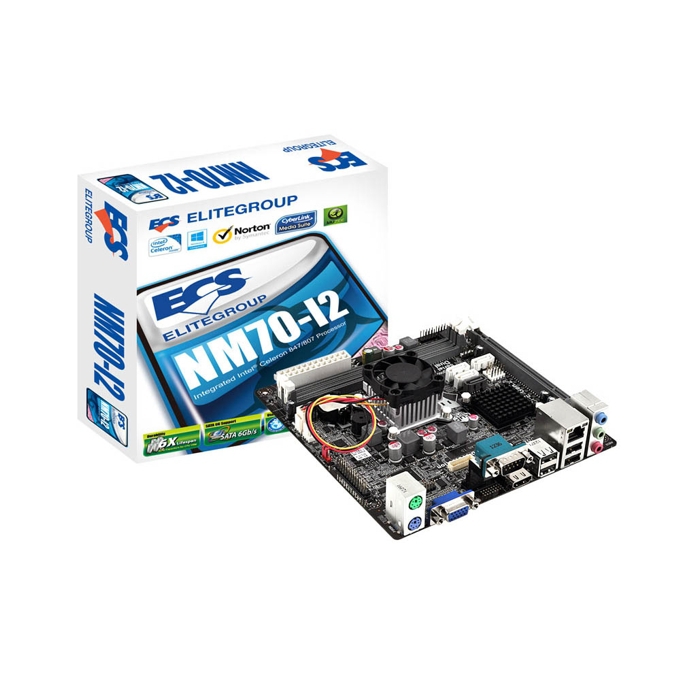

Дънна платка EliteGroup NM70-I2, NM70, вграден двуядрен Celeron 1037U 1.8 GHz, DDR3, PCI-E (DVI), SB5.1, Lan1000, 1x SATA 6Gb/s, Mini ITX

NM70-I2 (V1.0)

- Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
- ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
- Microsoft Windows 8 Certified
- ECS Intelligent EZ Utility : eBLU, eDLU, eSF

CPU

º Onboard Intel® Celeron 1037U processors
º Solid Capacitor for CPU side

CHIPSET

º Intel® NM70 Express Chipset

GRAPHICS

º Supports DirectX® 10.1

MEMORY

º Supports DDR3 1333/1066 non-ECC, Un-buffered SDRAM Memory
º 2 X 240-pin DDR3 DIMM socket

EXPANSION SLOT

º 1 X PCI Express X16 Gen 2.0 slot(s)

Storage

º Support by IntelNM70 Express Chipset
• 1 X Serial ATAIII 6Gb/s
• 3 X Serial ATAII 3Gb/s

Audio

º VIA 1705
‧VIA® VT1705 6-channel High Definition audio CODEC
‧Compliant with HD audio specification for a whole new immersive surround sound experience
‧3 DACs and 2 ADCs with High-performance ADCs with 100dB SNR, DACs with 100dB SNR
‧Low Power Consumption
‧Capability for “full rate” BluRay / DVD / HD DVD support.

LAN

º Realtek 8111E Gigabit Fast Ethernet Controller

USB

º Support by NM70 Express Chipset
• 8 X USB2.0 port(s) Up to 480 Mb/s
Back Panel 4 port(s)
Onboard 4 port(s)

REAR PANEL I/O

º 1 X PS/2 Keyboard & PS/2 mouse connectors
º 1 X Serial port (COM)
º 1 X Audio port (Line Out/Line In/Mic In)
º 1 X DVI-I port(s)
º 1 X D-Sub (VGA) port(s)
º 4 X USB2.0 port(s)

CONNECTORS & HEADERS

º 1 X 24-pin ATX Power Supply connector
º 1 X 3-pin SYS_FAN connector
º 1 X Front Panel switch/LED header
º 1 X Front panel audio header
º 1 X Onboard Buzzer
º 2 X USB 2.0 header
• Support additional 4 USB ports
º 1 X S/PDIF out header
º 1 X SATA III 6Gb/s connector(s)
º 3 X SATA II 3Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X Serial port header (COM)
º 1 X Parallel port header (LPT)
º 1 X Chassis intrusion header
º 1 X LVDS connector (optional)
º 1 X LDC header

SYSTEM BIOS

º AMI BIOS with 32 MB SPI Flash ROM
º Over-Clocking
º Multi-Language BIOS

FORM FACTOR

º Mini ITX Form Factor
º 170mm X 170mm

OS Support

º Windows XP 64-bit
º Windows 7 32-bit
º Windows 7 64-bit
º Windows 8 64-bit

Certifications

º CE/FCC Certification
º ErP/EuP Certification
º WHQL Certification
º WHCK Certification

Bundled Software

º ECS Intelligent EZ Utility : eBLU, eDLU, eSF
º Free Bundle: Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9, Muzee with trial version
