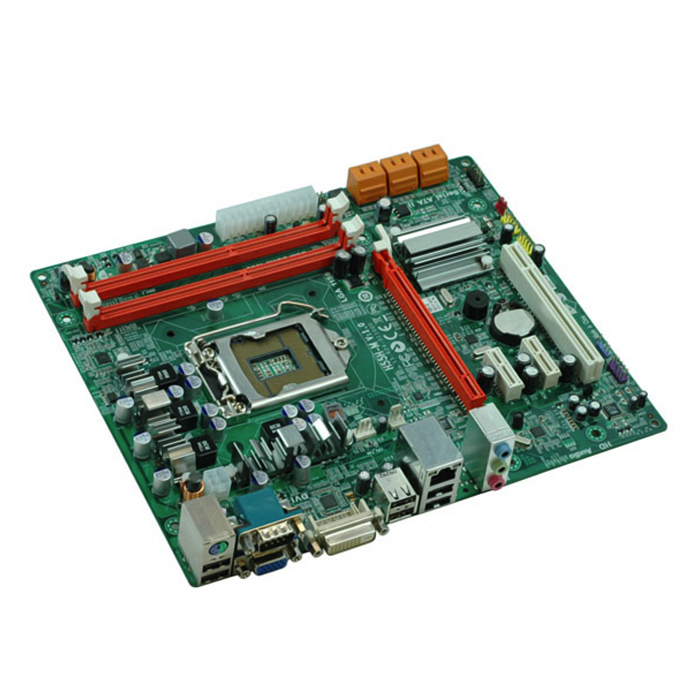

EliteGroup H55H-M (V1.0)
LGA1156 socket for Intel® Core™ i5 /Core™ i3 / Pentium® and Core™ i7-800 Processor Series, supporting dual-channel DDR3 1333 to deliver a highly-effective computing
H55H-M is ECS mATX borad based on LGA 1156 socket for Intel® Core™ i7-800, Core™ i5, Core™ i3 and Pentium® processors. It has 1 DVI port to deliver smooth blu-ray playback quality with Clarkdale's 32nm integrated graphics. The new generation Clarkdale system also gives a massive memory bandwidth for multi-task processing.
CPU
LGA1156 socket for latest Intel Core i7 / Core i5 / Core i3 high-end desktop processors
DMI 2.5GT/s
CHIPSET
Intel® H55 Express Chipset
MEMORY
Dual-channel DDR3 memory architecture
2 x 240-pin DDR3 DIMM socket support up to 8 GB
Support DDR3 1333/1066 SDRAM
EXPANSION SLOT
1 x PCI Express x16 slot
2 x PCI Express x1 slots
1 x PCI slot
STORAGE
Support by Intel® H55
6 x Serial ATAII 3.0Gb/s devices
AUDIO
VIA® VT1705 6-channel audio CODEC
LAN
Atheros AR8131M Gigabit Fast Ethernet Controller
REAR PANEL I/O
1 x PS/2 keyboard/mouse connector
6 x USB ports
1 x VGA port
1 x DVI Port
1 x COM Port
1 x RJ45 LAN connector
1 x Audio port (3 holes jack)
INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply Connector & 4-pin 12V Connector
6 x Serial ATA 3Gb/s connectors
2 x USB 2.0 headers support additional 4 USB Ports
1 x Buzzer
1 x Clear CMOS header
1 x Front panel audio header
1 x SPDIF out header
1 x Front panel header
1 x Chassis intrusion header
CPUFAN/SYSFAN connectors
SYSTEM BIOS
AMI BIOS with 16Mb SPI Flash ROM
Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
Supports ACPI revision 3.0 specification
CPU voltage adjustable
Memory voltage adjustable
FORM FACTOR
Micro-ATX Size, 244mm*200mm
Виж още Дънни платки за Intel процесори Elitegroup
Виж всички Дънни платки за Intel процесори в категорията
LGA1156 socket for Intel® Core™ i5 /Core™ i3 / Pentium® and Core™ i7-800 Processor Series, supporting dual-channel DDR3 1333 to deliver a highly-effective computing
H55H-M is ECS mATX borad based on LGA 1156 socket for Intel® Core™ i7-800, Core™ i5, Core™ i3 and Pentium® processors. It has 1 DVI port to deliver smooth blu-ray playback quality with Clarkdale's 32nm integrated graphics. The new generation Clarkdale system also gives a massive memory bandwidth for multi-task processing.
CPU
LGA1156 socket for latest Intel Core i7 / Core i5 / Core i3 high-end desktop processors
DMI 2.5GT/s
CHIPSET
Intel® H55 Express Chipset
MEMORY
Dual-channel DDR3 memory architecture
2 x 240-pin DDR3 DIMM socket support up to 8 GB
Support DDR3 1333/1066 SDRAM
EXPANSION SLOT
1 x PCI Express x16 slot
2 x PCI Express x1 slots
1 x PCI slot
STORAGE
Support by Intel® H55
6 x Serial ATAII 3.0Gb/s devices
AUDIO
VIA® VT1705 6-channel audio CODEC
LAN
Atheros AR8131M Gigabit Fast Ethernet Controller
REAR PANEL I/O
1 x PS/2 keyboard/mouse connector
6 x USB ports
1 x VGA port
1 x DVI Port
1 x COM Port
1 x RJ45 LAN connector
1 x Audio port (3 holes jack)
INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply Connector & 4-pin 12V Connector
6 x Serial ATA 3Gb/s connectors
2 x USB 2.0 headers support additional 4 USB Ports
1 x Buzzer
1 x Clear CMOS header
1 x Front panel audio header
1 x SPDIF out header
1 x Front panel header
1 x Chassis intrusion header
CPUFAN/SYSFAN connectors
SYSTEM BIOS
AMI BIOS with 16Mb SPI Flash ROM
Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
Supports ACPI revision 3.0 specification
CPU voltage adjustable
Memory voltage adjustable
FORM FACTOR
Micro-ATX Size, 244mm*200mm
Виж още Дънни платки за Intel процесори Elitegroup
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
| Процесор сокет: | LGA 1156 |
|---|
