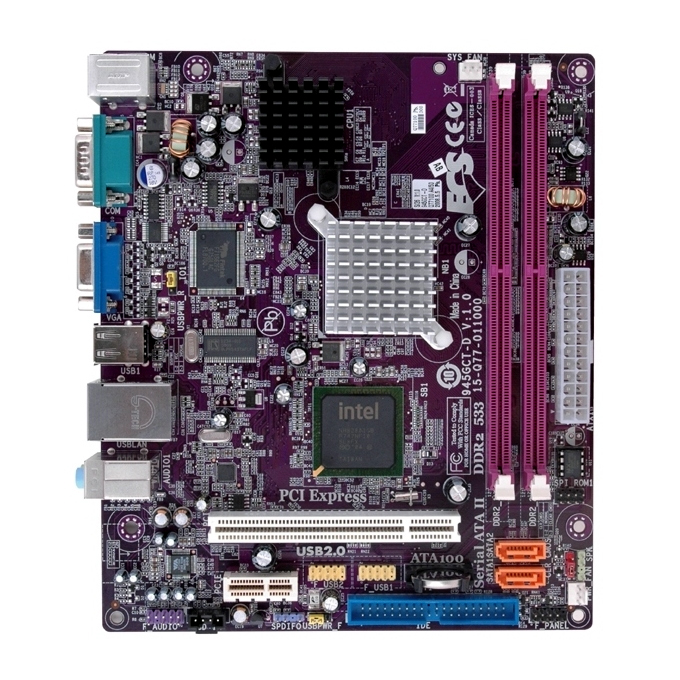

Elitegroup 945GCT-D
CPU
Onboard Intel Atom (Diamondville) single core FCBGA 437-pin
1.60Ghz CPU speed with 512KB cache
FSB 533MHz
CHIPSET
Intel® 945GC & ICH7
North Bridge: Intel® 945GC
South Bridge: Intel® ICH7
GRAPHICS
Integrated Intel® Graphics Media Accelerator 950 ( GMA950 )
Max Dynamic Video Memory up to 8MB
MEMORY
Single-channel DDR2 memory architecture
2 x 240-pin DDR2 DIMM socket support up to 2 GB
Support DDR2 533/400 DDR SDRAM
EXPANSION SLOT
1 x PCI Express x1 slot
1 x PCI slot
STORAGE
Supported by Intel®ICH7
1 x IDE channel support 2 Ultra DMA100/66 devices
2 x Serial ATAII 3.0Gb/s devices
AUDIO
VIA® VT1708B 6-channel High Definition audio CODEC
LAN
ATHEROS AR8112 10/100 Mbps PHY
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x RJ45 LAN connector
1 x Audio port (Line-in, Line-out, Mic-in)
1 x VGA port
1 x Serial port (COM1)
INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply connector
1 x PWR_FAN connector
1 x SYS Fan header
1 x IDE connector
1 x Speaker header
1 x SPDIF out header
2 x Serial ATA connectors
1 x Front panel switch/LED header
1 x Front panel audio header
1 x CD in header
2 x USB 2.0 headers support additional 4 USB Ports
SYSTEM BIOS
AMI BIOS with 4Mb SPI Flash ROM
Supports Plug and Play , ACPI& DMI
Supports STR/STD, Hardware monitor
Supports PCI interrupt selection
Audio, LAN, can be disabled in BIOS
F11 hot key for boot up devices option
FORM FACTOR
Mini-DTX 200x170mm
