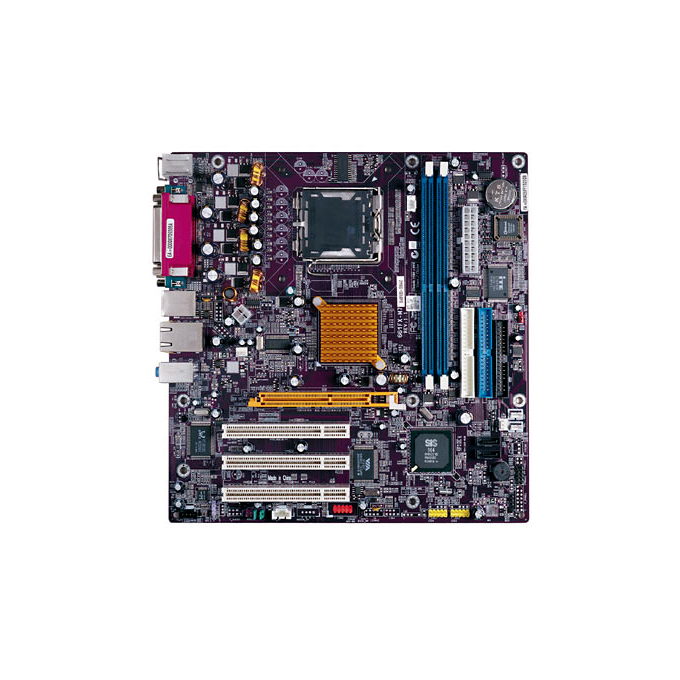

EliteGroup 661FX-M7
CPU
LGA775 socket for latest Intel Pentium 4 / Celeron D processor
FSB 800/533 MHz
Support Hyper-Threading Technology
CHIPSET
SiS® 661FX & 964
North Bridge: SiS® 661FX
South Bridge: SiS® 964
GRAPHICS
Integrated SiS Real256E Graphics
MEMORY
Single-channel DDR memory architecture
2 x 184-pin DDR DIMM socket support up to 2 GB
Support DDR400/333/266 DDR SDRAM
EXPANSION SLOT
1 x AGP 8X/4X slot
3 x PCI slots
STORAGE
Support by SiS® 964
4 x Ultra DMA133/100/66 devices
2 x Serial ATA devices
RAID0 & RAID1 configuration
AUDIO
Realtek ALC655 6-Channel audio CODEC
Compliant with AC'97 2.3 specification
LAN
Realtek RTL8201BL 10/100 Mbps Fast Ethernet PHY
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x RJ45 LAN connector
1 x VGA port
1 x Parallel port (LPT)
1 x Serial port (COM1)
1 x Audio port (Line-in, Line-out, Mic-in)
INTERNAL I/O CONNECTORS & HEADERS
1 x 20-pin ATX Power Supply Connector & 4-pin 12V Connector
1 x FDD connector supports two 360K~2.88MB FDDs
2 x IDE connectors
2 x Serial ATA connectors
2 x USB 2.0 headers support additional 4 USB Ports
1 x COM port header (COM2)
1 x IrDA for SIR header
1 x Front panel switch/LED header
1 x Front panel audio header
1 x CD in header
CPUFAN/CASFAN connectors
SYSTEM BIOS
Award BIOS with 4Mb Flash ROM
Supports Plug and Play 1.0B, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR
Micro-ATX Size, 244mm*244mm
