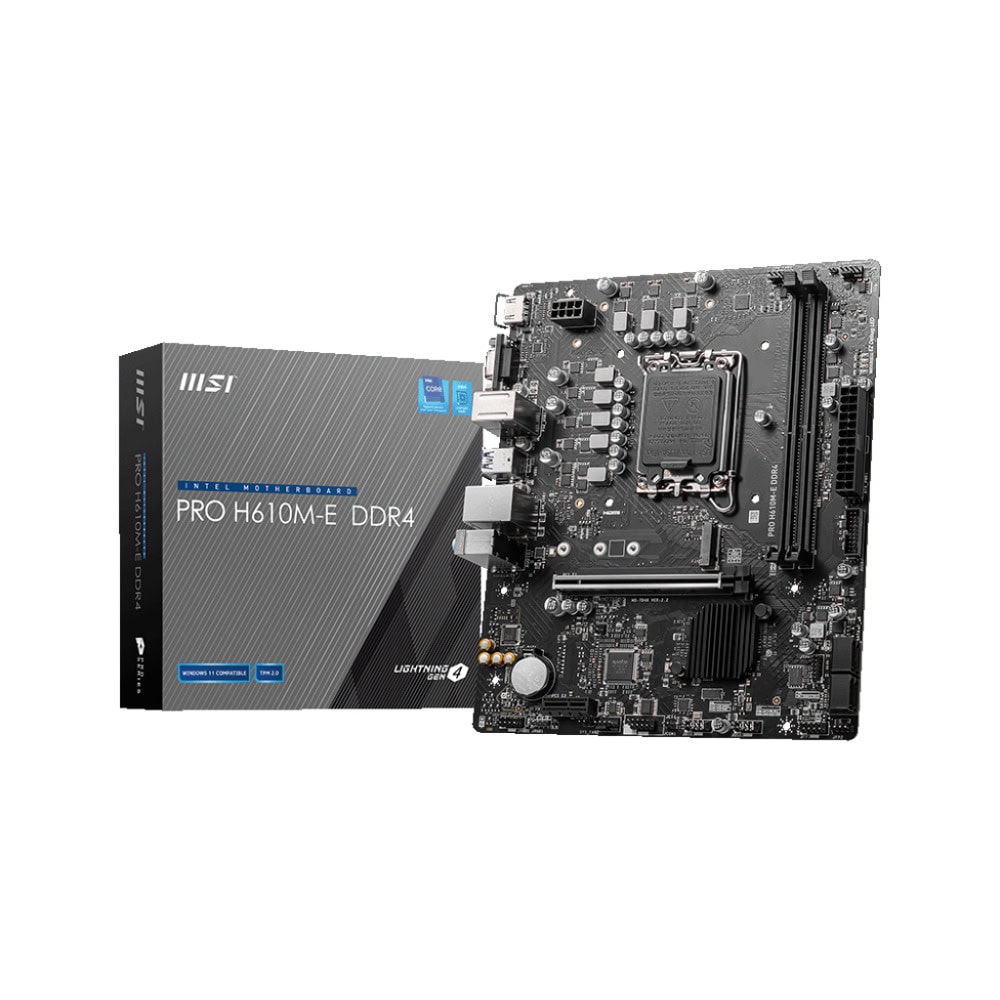

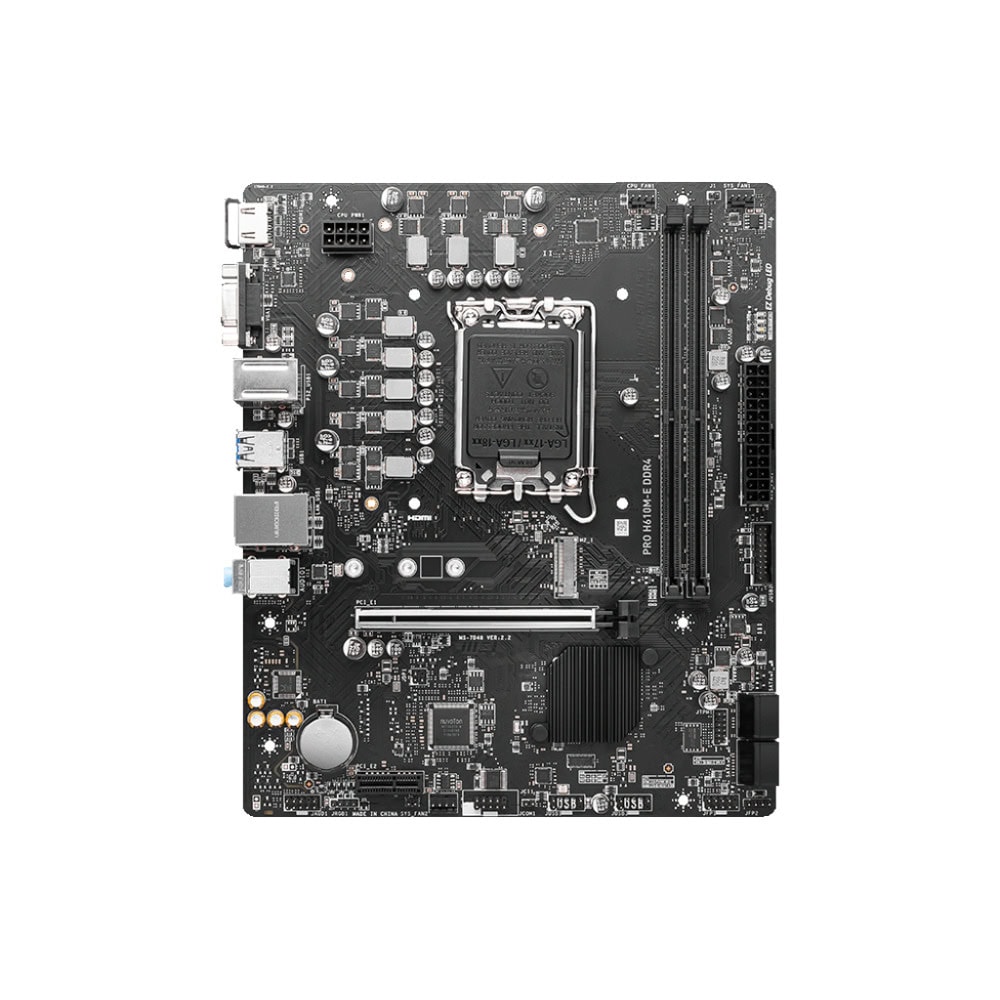

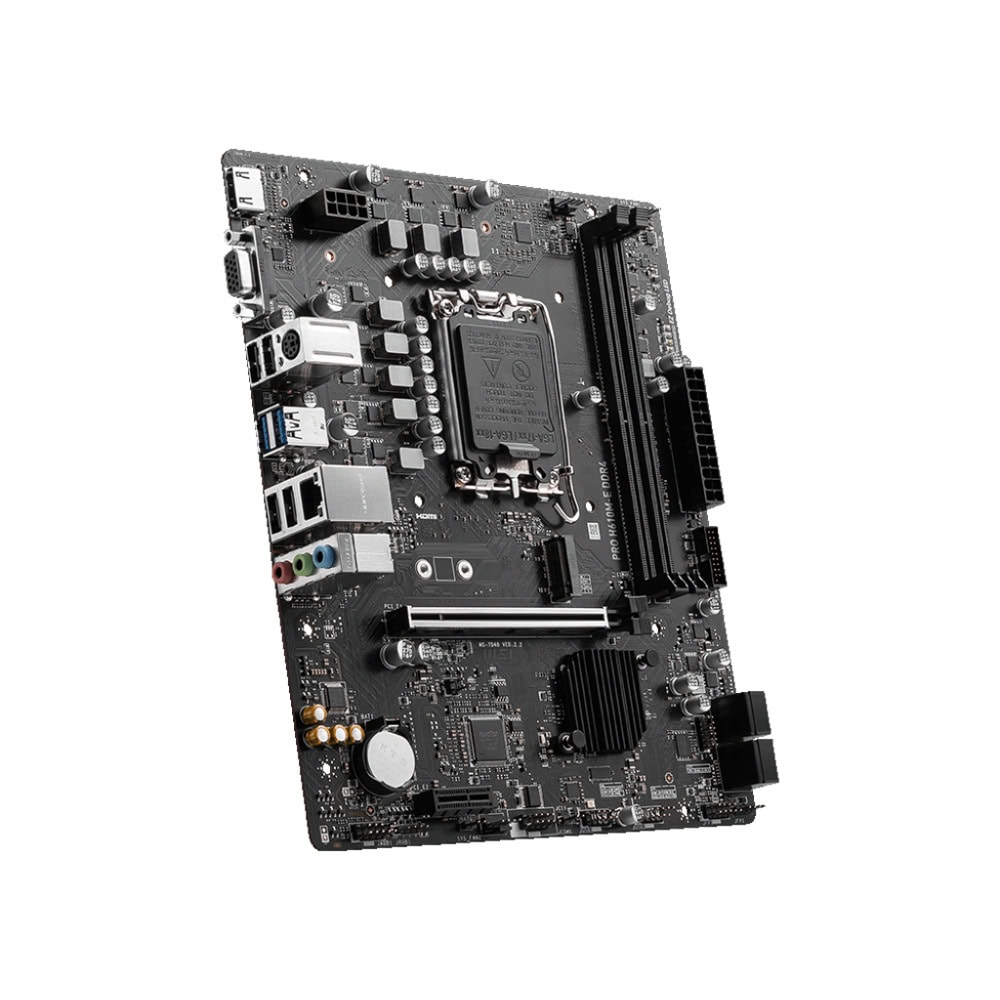

PRO H610M-E DDR4
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, up to 3200(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
| Category | Details |
|---|---|
| Processor Support | Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, Celeron® (Socket LGA1700) |
| Chipset | Intel® H610 Chipset |
| Memory | 2× DDR4 slots, up to 64GB, 2133/2666/3200 MHz (JEDEC & POR), Dual-Channel, non-ECC, un-buffered |
| Expansion Slots | 1× PCIe x16 (CPU, PCIe 4.0), 1× PCIe x1 (H610, PCIe 3.0) |

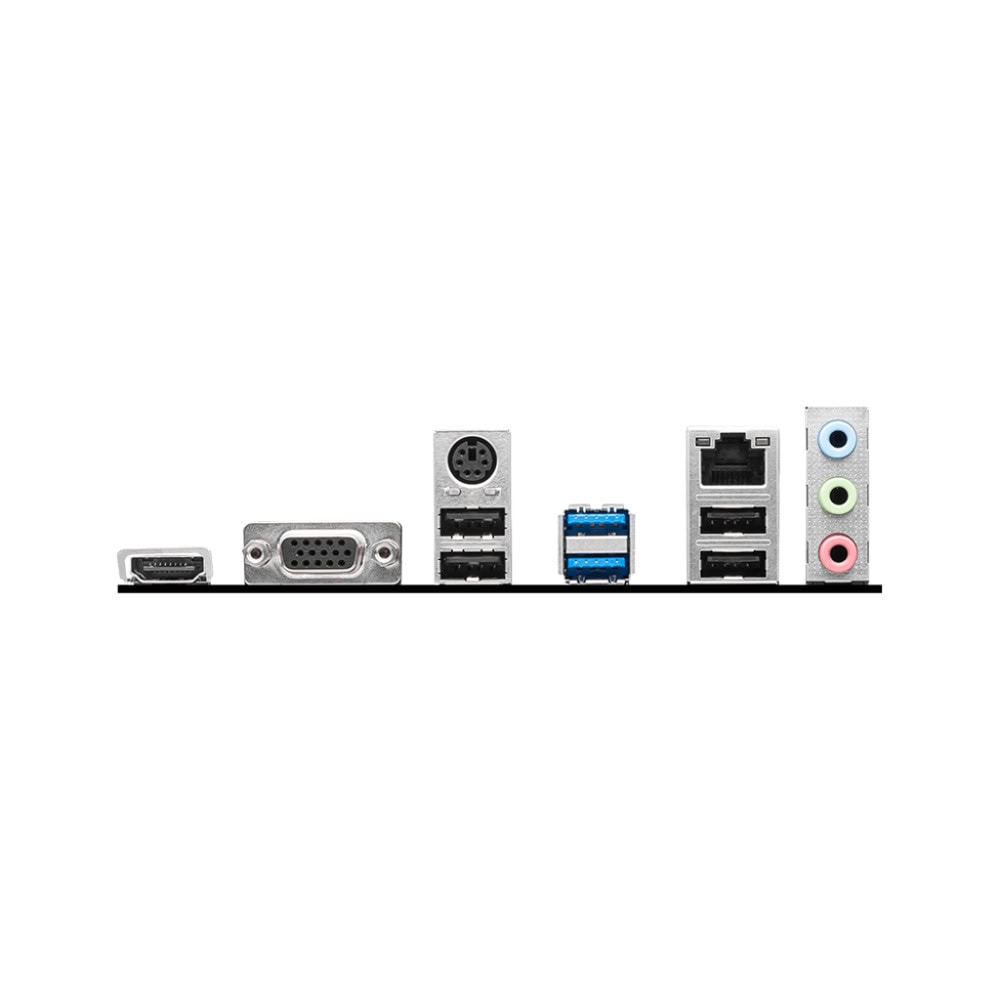

| Onboard Graphics | HDMI 1.4 (4K@30Hz), VGA (2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz) |
| SATA Ports | 4× SATA 6Gb/s (H610) |
| M.2 Slot | 1× M.2 Key M (PCIe 3.0 x4 / SATA 6Gb/s, 2242/2260/2280) |
| Audio | Realtek® ALC897, 7.1-Channel HD Audio |
| LAN | Realtek® RTL8111H 1Gbps LAN |
| Power Connectors | 1× 24-pin ATX, 1× 8-pin +12V |
| Internal USB | 1× USB 3.2 Gen 1 header (2 ports), 2× USB 2.0 headers (4 ports) |
| Fan Connectors | 1× CPU fan (4-pin), 2× System fan (4-pin) |
| System Connectors | Front audio, 2× system panel, chassis intrusion, TPM, serial port |
| Jumpers | 1× Clear CMOS jumper |
| LED Features | 1× 4-pin RGB header, 4× EZ Debug LED |
| Form Factor | Micro-ATX |
Виж още Дънни платки за Intel процесори MSI
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
| Процесор сокет: | LGA 1700 |
|---|---|
| Чипсет: | H610 |
| Поддържана памет: | DDR4 |
| Брой слотове за RAM памет: | 2 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Не |
| Безжични мрежи: | Не |
| Bluetooth: | Не |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | HDMI |
| Форм фактор: | Micro ATX |
