Дънна платка MSI PRO H610M-B DDR4, H610, LGA1700, DDR4, PCI-E 4.0(HDMI&VGA), 4x SATA 6Gb/s, 1x M.2 slot, 4x USB 3.2 Gen 1, Micro-ATX

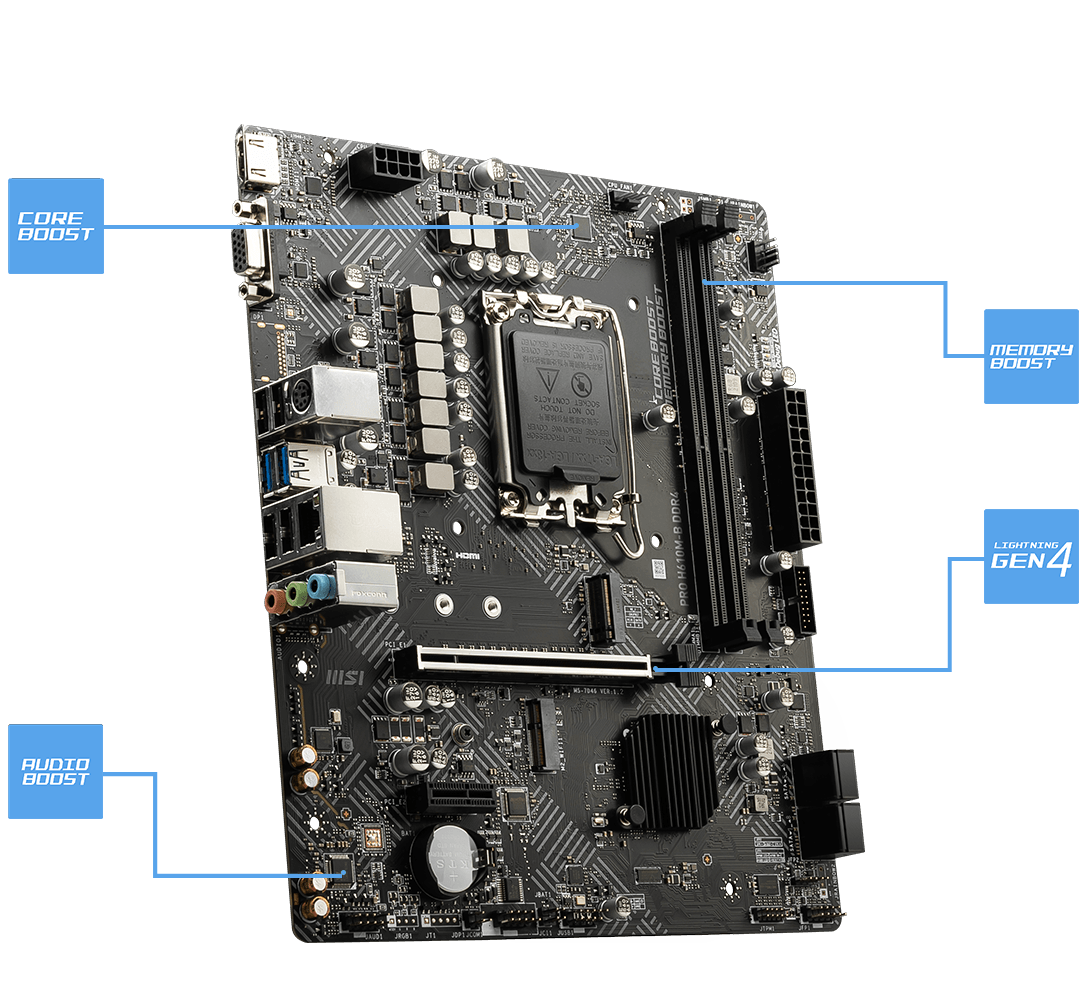

MSI PRO H610M-B DDR4

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

SPECIFICATIONS

PROCESSOR
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Processor socket LGA1700
Please go to www.msi.com to get the newest support status as new processors are released.


CHIPSET
Intel® H610 Chipset

MEMORY
2x DDR4 memory slots, support up to 64GB
Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Please refer to www.msi.com for more information on compatible memory.

EXPANSION SLOT
1x PCIe x16 slot (From CPU)

• Supports up to PCIe 4.0 x16

1x PCIe x1 slot

• Supports PCIe 3.0 x1

1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1)

ONBOARD GRAPHICS
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.

SATA PORTS
4x SATA 6Gb/s ports
SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

M.2 SSD SLOT
1x M.2 slot (Key M, from chipset)

• Supports up to PCIe 3.0 x4
• Supports up to SATA 6Gb/s
• Supports 2242/ 2260/ 2280 storage devices
• Supports Intel® Smart Response Technology for Intel Core™ processors

SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot

AUDIO
Realtek® ALC892/ ALC897 Codec
7.1-Channel High Definition Audio

LAN
1x Intel® I219V 1Gbps LAN controller

POWER CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector

USB
Intel® H610 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

FAN CONNECTORS
1x 4-pin CPU fan connector
1x 4-pin system fan connector

SYSTEM CONNECTORS
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector

JUMPERS
1x Clear CMOS jumper

LED FEATURES
4x EZ Debug LED

BACK PANEL PORTS
HDMI
VGA
Keyboard/Mouse
USB 3.2 Gen 1 5Gbps Type-A
LAN port
Audio connector
USB 2.0

DIMENSIONS
M-ATX Form Factor
9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
