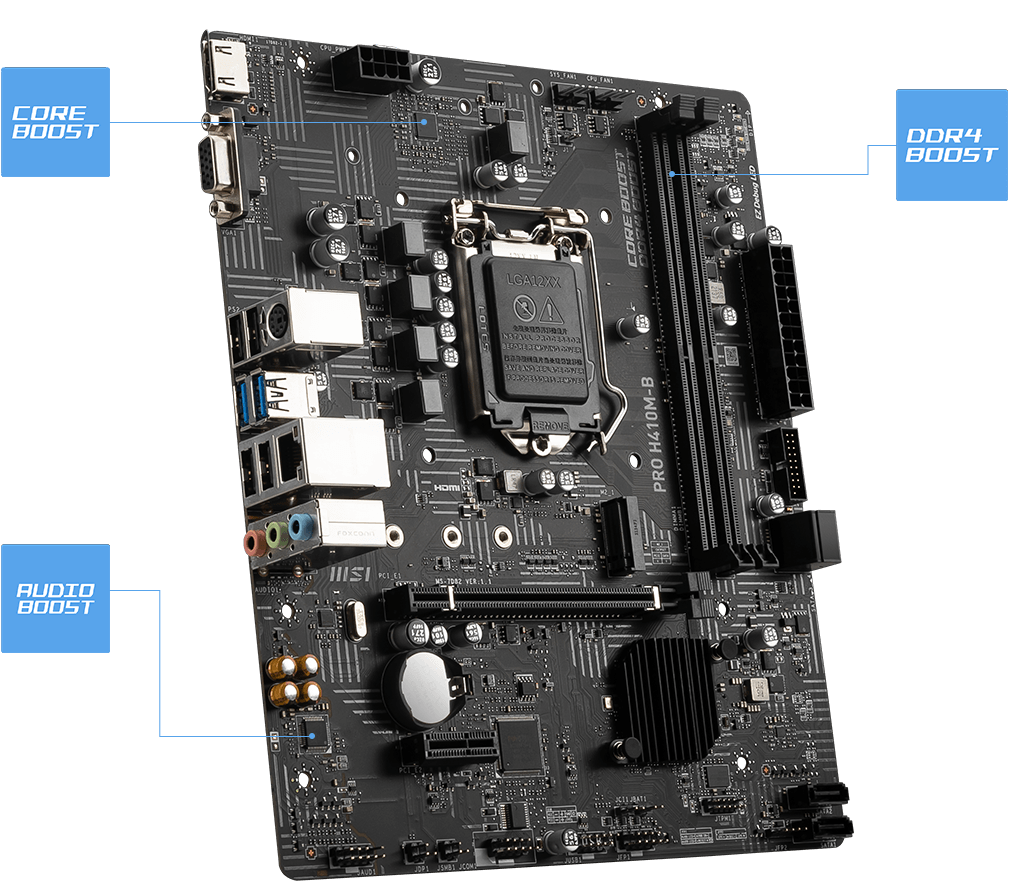

MSI PRO H410M-B
|
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. |
 |
SPECIFICATIONS
| PROCESSOR | Supports 10th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1200 Please go to www.intel.com for more compatibility information. |
| CHIPSET | Intel® H410 Chipset |
| MEMORY |
2x DDR4 memory slots, support up to 64GB |
| EXPANSION SLOT | 1x PCIe 3.0 x16 slot (From CPU) 1x PCIe 3.0 x1 slot (From PCH) |
| ONBOARD GRAPHICS | 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz 1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz |
| STORAGE | 4x SATA 6Gb/s ports 1x M.2 slot (Key M)
|
| USB | Intel® H410 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector) |
| AUDIO | Realtek® ALC897/ ALC892 Codec 7.1-Channel High Definition Audio |
| INTERNAL CONNECTORS | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (support additional 2 USB ports) 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper |
| DIMENSIONS | m-ATX Form Factor 9.3 in. x 7.95 in. (23.6 cm x 20.2 cm) |
Виж още Дънни платки за Intel процесори MSI
Виж всички Дънни платки за Intel процесори в категорията
Технически характеристики
| Процесор сокет: | LGA 1200 |
|---|---|
| Чипсет: | H410 |
| Поддържана памет: | DDR4 |
| Брой слотове за RAM памет: | 2 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Не |
| Безжични мрежи: | Не |
| Bluetooth: | Не |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | HDMI VGA (D-Sub) |
| Форм фактор: | Mini ATX |
