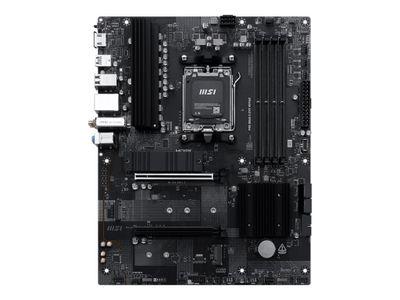

Name: Дънна платка MSI PRO B840-S EVO WIFI6E - motherboard - ATX - Socket AM5 - AMD B840
Availability: OutOfStock

Описание

Общи Характеристики
Packaged Quantity	1
Процесор
Installed Qty	0
Max Supported Qty	1
Дънна платка
Form Factor	ATX
Chipset Type	AMD B840
Supported RAM Technology	DDR5 SDRAM
Supported RAM Integrity Check	Non-ECC
Supported RAM Speed	5600 MT/s, 4800 MT/s, 8000 MT/s (O.C.), 6400 MT/s (O.C.), 5600 MT/s (O.C.)
Processor Socket	Socket AM5
I/O Controller	Nuvoton NCT6687D-R
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)	Unbuffered, Clocked unbuffered
RAM Slots	4 DIMM slots
Интерфейси
Internal Interfaces	1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 4 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features	AMD EXPO technology, Dual channel memory architecture
Max Supported Size	256 GB
Видео изход
Type	Graphics adapter (CPU required)
Аудио изход
Type	Sound card
Compliant Standards	High Definition Audio
Audio Codec	Realtek ALC897
Audio	High Definition Audio (8-channel)
Работа в мрежа
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 2.5 Gigabit Ethernet
Network Controller	Realtek RTL8125D
Network	2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Слотове за разширение
Expansion Slots	1 x CPU, 2 x M.2 socket (2260/2280 M.2 Key M slot), 1 x M.2 socket (2260/2280/22110 M.2 Key M slot), PCIe 3.0 x4, 4 x DIMM 288-pin, 1 x M.2 socket (Key E), 1 x PCIe 4.0 x16
Интерфейси
Storage Interfaces	PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1
Storage	Serial ATA-600 (RAID), M.2 socket
USB / FireWire	USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 1
Storage Ports	4 x SATA-600 (RAID), 3 x M.2
USB / FireWire Ports Configuration (Active)	1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers)	1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Софтуер
Software Included	MSI Center, Adobe Creative Cloud (free trial), AIDA64 Extreme - MSI Edition, Norton 360, Dropbox, Drivers & utilities, MSI CPU-Z
Размери и Тегло
Width	30,5 cm
Depth	24,4 cm
