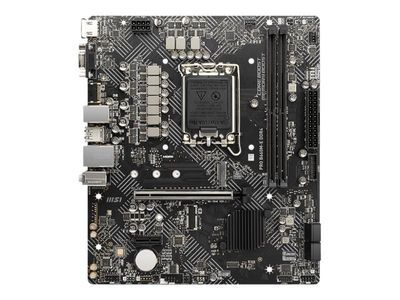

Name: Дънна платка MSI PRO B660M-E DDR4 - motherboard - micro ATX - LGA1700 Socket - B660
Availability: OutOfStock

Описание

Общи Характеристики
Packaged Quantity	1
Процесор
Installed Qty	0
Max Supported Qty	1
Дънна платка
Form Factor	Micro ATX
Chipset Type	Intel B660
Supported RAM Technology	DDR4 SDRAM
Supported RAM Integrity Check	Non-ECC
Supported RAM Speed	3200 MHz, 2133 MHz, 2666 MHz, 2933 MHz, 4000 MHz (O.C.), 4600 MHz (O.C.)
Processor Socket	LGA1700 Socket
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)	Unbuffered
RAM Slots	2 DIMM slots
Интерфейси
Internal Interfaces	1 x audio - header, 2 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header
RAM
Features	Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
Max Supported Size	64 GB
Видео изход
Type	Graphics adapter (CPU required)
Аудио изход
Type	Sound card
Compliant Standards	High Definition Audio
Audio Codec	Realtek ALC892/ALC897
Audio	High Definition Audio (8-channel)
Работа в мрежа
Network Controller	Intel I219V
Network	Gigabit Ethernet
Слотове за разширение
Expansion Slots	1 x CPU, 2 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x PCIe 4.0 x16
Интерфейси
Storage Interfaces	SATA-600 / PCIe 3.0 -connectors: 1 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Storage	Serial ATA-600 (RAID), M.2 socket
USB / FireWire	USB 3.2 Gen 1
Storage Ports	4 x SATA-600 (RAID), 1 x M.2
USB / FireWire Ports Configuration (Active)	2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers)	2 x USB 3.2 Gen 1 + 2 x USB 2.0
Софтуер
Software Included	Drivers & utilities
Размери и Тегло
Width	24,4 cm
Depth	21,1 cm
