Дънна платка MSI PRO B660M-A DDR4, B660, LGA1700, DDR4, PCI-E 4.0 (2xDP&2xHDMI)(CF), 4x SATA 6Gb/s, 2x M.2 slots, 2x USB 3.2 Gen 2, Micro-ATX

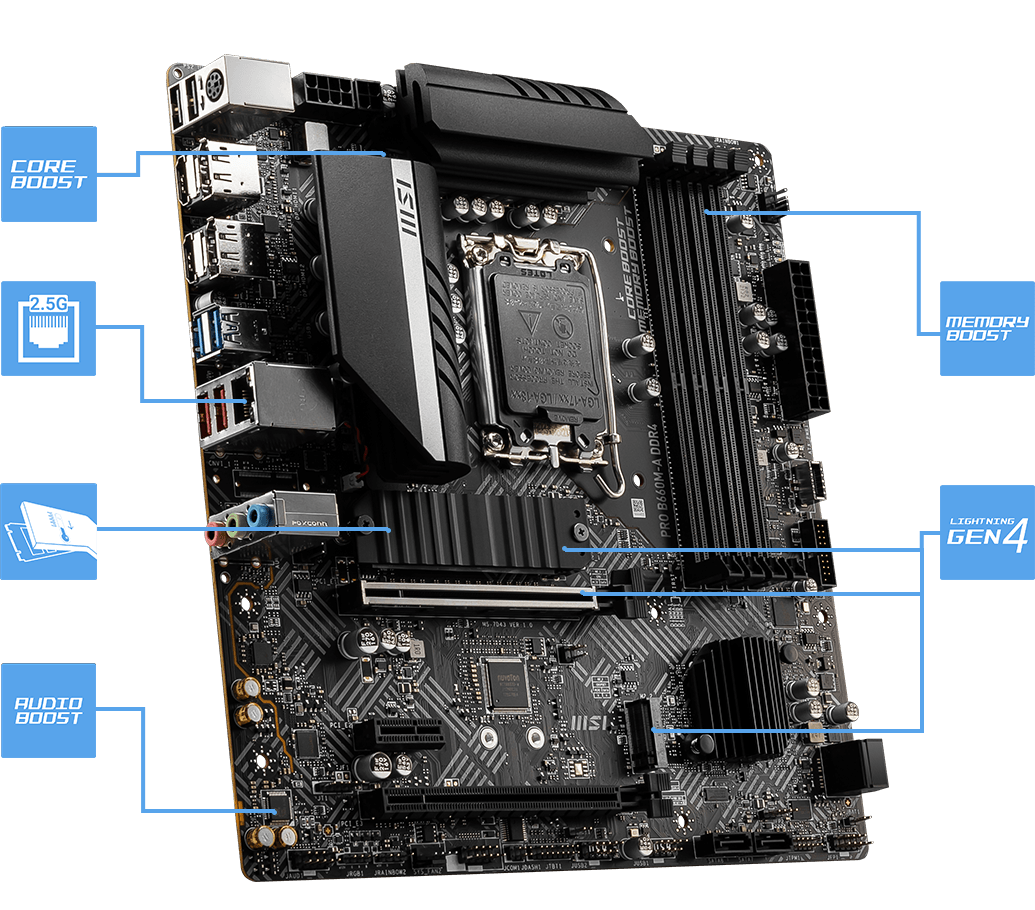

MSI PRO B660M-A DDR4

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

SPECIFICATIONS

CPU
Supports 12th Gen Intel® Core™ Processors
Processor socket LGA1700
Please go to www.msi.com to get the newest support status as new processors are released.

CHIPSET
Intel® B660 Chipset

MEMORY
4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)
Max overclocking frequency:

• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4000+ MHz
• 2DPC 1R Max speed up to 4000+ MHz
• 2DPC 2R Max speed up to 3600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memoryy
Supports Intel® Extreme Memory Profile (XMP)
Please refer to www.msi.com for more information on compatible memory.

EXPANSION SLOT
2x PCIe x16 slots

• PCI_E1 (From CPU)
  • Support PCIe 4.0 x16
• PCI_E3 (From B660 chipset)
  • Support PCIe 3.0 x4

1x PCIe 3.0 x1 slot (Fom B660 chipset)

ONBOARD GRAPHICS
2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz
2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60
Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.

MULTI-GPU
Supports AMD® CrossFire™ Technology

AUDIO
Realtek® ALC897 Codec
7.1-Channel High Definition Audio

STORAGE
4x SATA 6Gb/s ports (From B660 chipset)
2x M.2 slots (Key M)

• M2_1 slot (From CPU)
  • Supports up to PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280 storage devices
• M2_2 slot (From B660 chipset)
  • Supports up to PCIe 4.0 x4
  • Supports up to SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • Supports Intel® Optane™ Memory

Support Intel® Smart Response Technology for Intel Core™ processors
SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

LAN
1x Realtek® RTL8125BG 2.5Gbps LAN controller

USB
Intel® B660 Chipset

• 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
• 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector)
• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)

Asmedia ASM1074

• 2X USB 3.2 Gen 1 5Gbps Type-A ports through the internal connector

INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Clear CMOS jumper
1x TBT connector (supports RTD3)
1x Serial port
1x Tuning Controller connector

LED FEATURES
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
4x EZ Debug LED

BACK PANEL PORTS
Keyboard / Mouse
DisplayPort
USB 3.2 Gen 1 5Gbps Type-A
LAN port
Audio connector
USB 2.0
HDMI
USB 3.2 Gen 2 10Gbps Type-A

DIMENSIONS
Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
