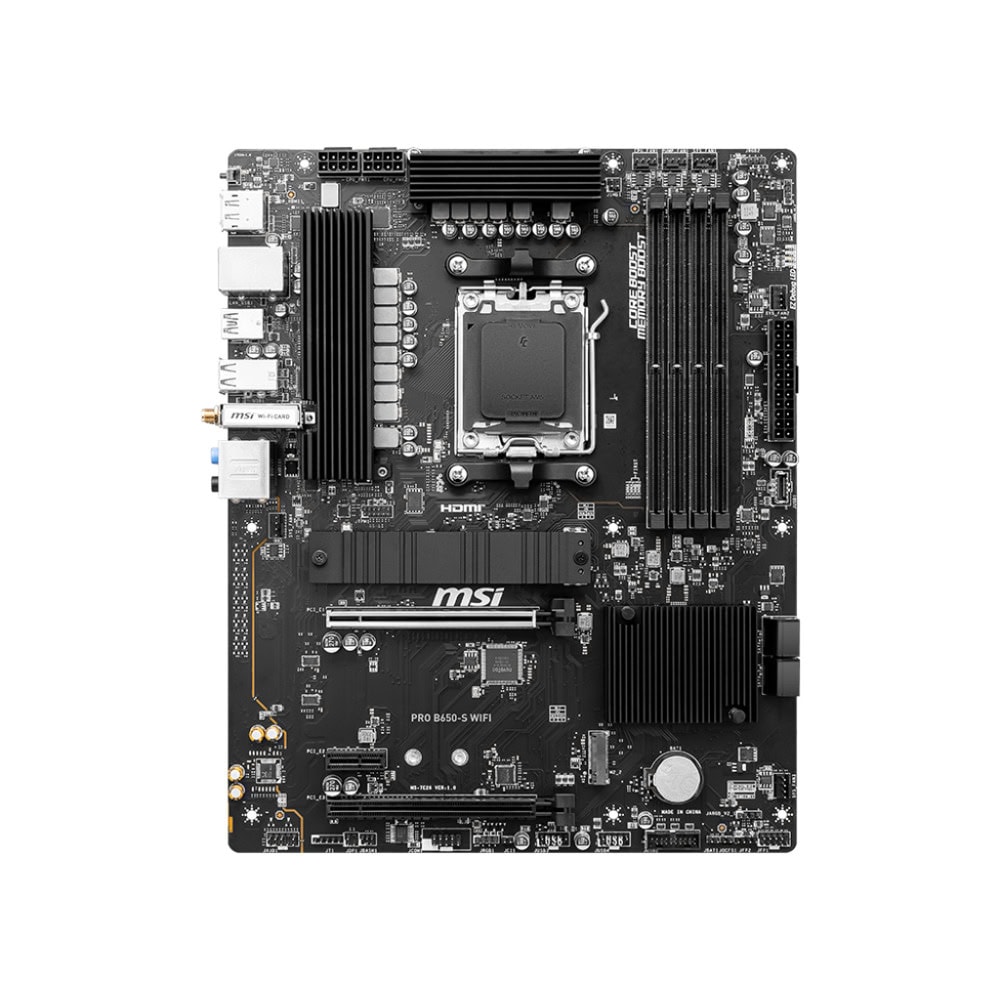

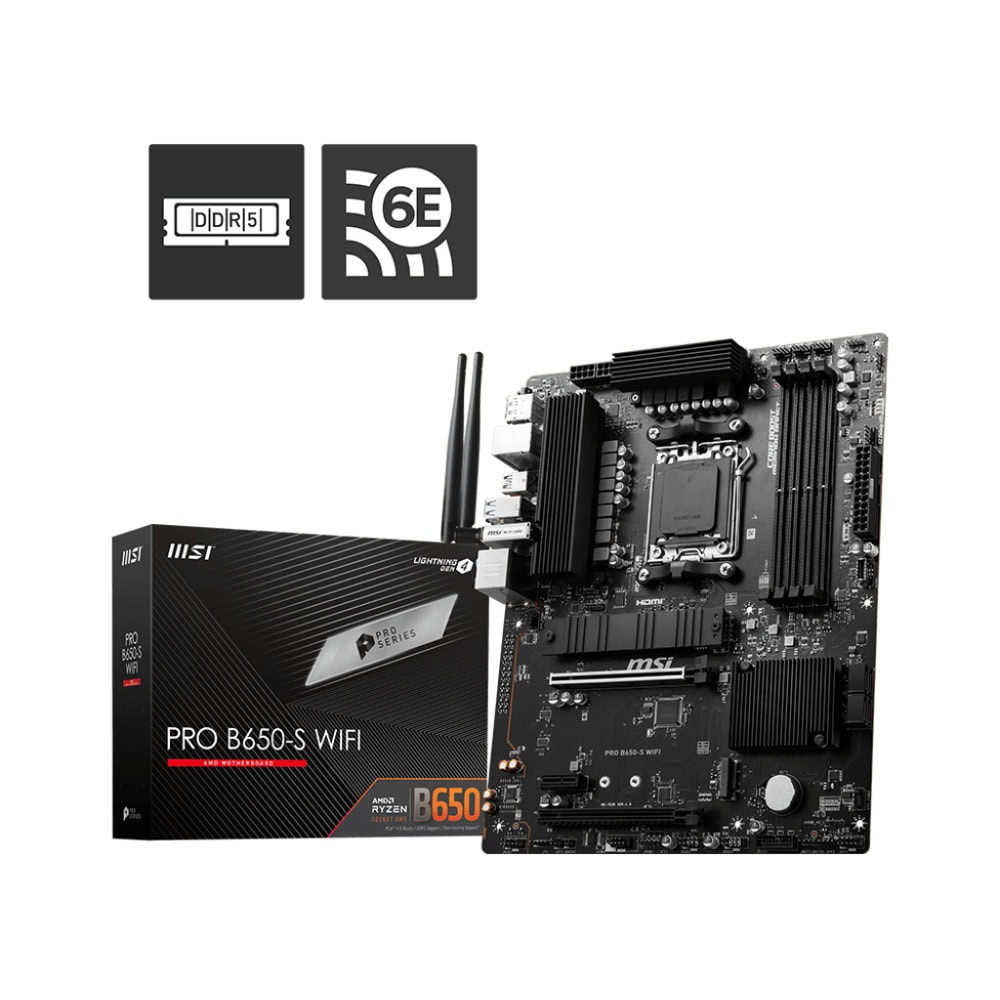

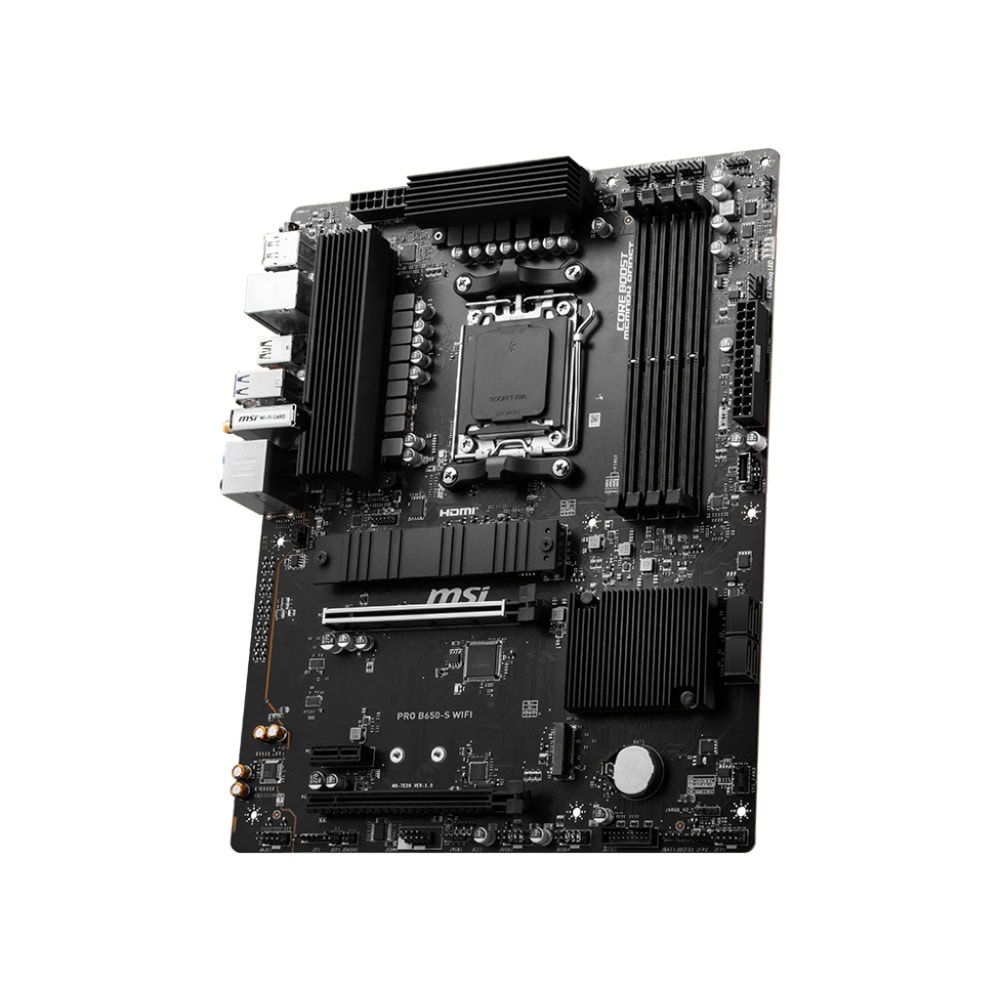

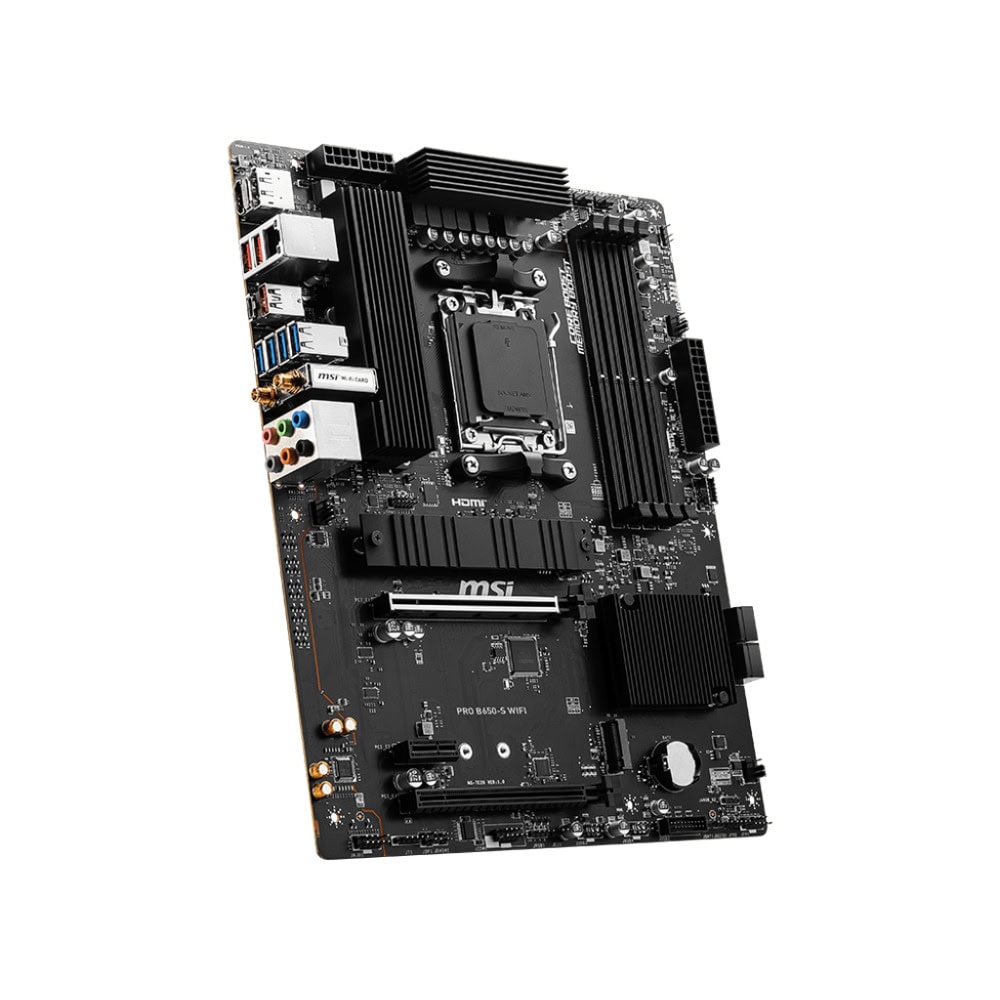

Дънна платка MSI Pro B650-S WIFI, B650, AM5, DDR5, PCI-E 4.0, (DP&HDMI), 4x SATA 6Gb/s, 2x M.2, 4x USB 3.0, Wi-Fi 6E, 2.5GbE LAN, ATX

PRO B650-S WIFI

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
• Enhanced Power Design: 12+2 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Premium Thermal Solution: MOSFET thermal pads rated for 7W/mK and M.2 Shield Frozr are built for high performance system and non-stop work
• High Quality PCB: 6-layer PCB made by 2oz thickened copper
• Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

Chipset

• AMD B650

CPU

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

• Socket AM5



Memory

• 4 × DDR5 slots
• Maximum memory capacity: 256 GB
• Supported memory speeds:
• DDR5 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 (JEDEC) MHz
• Maximum overclocking frequencies:
• 1DPC 1R – up to 7200+ MHz
• 1DPC 2R – up to 6000+ MHz
• 2DPC 1R – up to 6000+ MHz
• 2DPC 2R – up to 5400+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports AMD EXPO

Onboard Graphics

• 1 × HDMI™ 2.1 (4K @ 60Hz)*

• 1 × DisplayPort 1.4 (4K @ 60Hz)*
  *Available only on processors with integrated graphics; specifications vary by CPU.



Expansion Slots

• 2 × PCI-E x16
• 1 × PCI-E x1
• PCI_E1 Gen PCIe 4.0 (x16) – from CPU
• PCI_E2 Gen PCIe 3.0 (x1) – from chipset
• PCI_E3 Gen PCIe 4.0 (x4) – from chipset

Audio

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

Storage

• 2 × M.2 slots:
  • M.2_1 (from CPU) – PCIe 4.0 x4, supports 22110/2280 devices
  • M.2_2 (from CPU) – PCIe 4.0 x4, supports 2280/2260 devices
• 4 × SATA 6G

Multi-GPU

• AMD Multi-GPU Support

RAID

• Supports RAID 0 and RAID 1 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

• Front Panel: 4 × USB 2.0, 2 × USB 5Gbps Type A, 1 × USB 10Gbps Type C

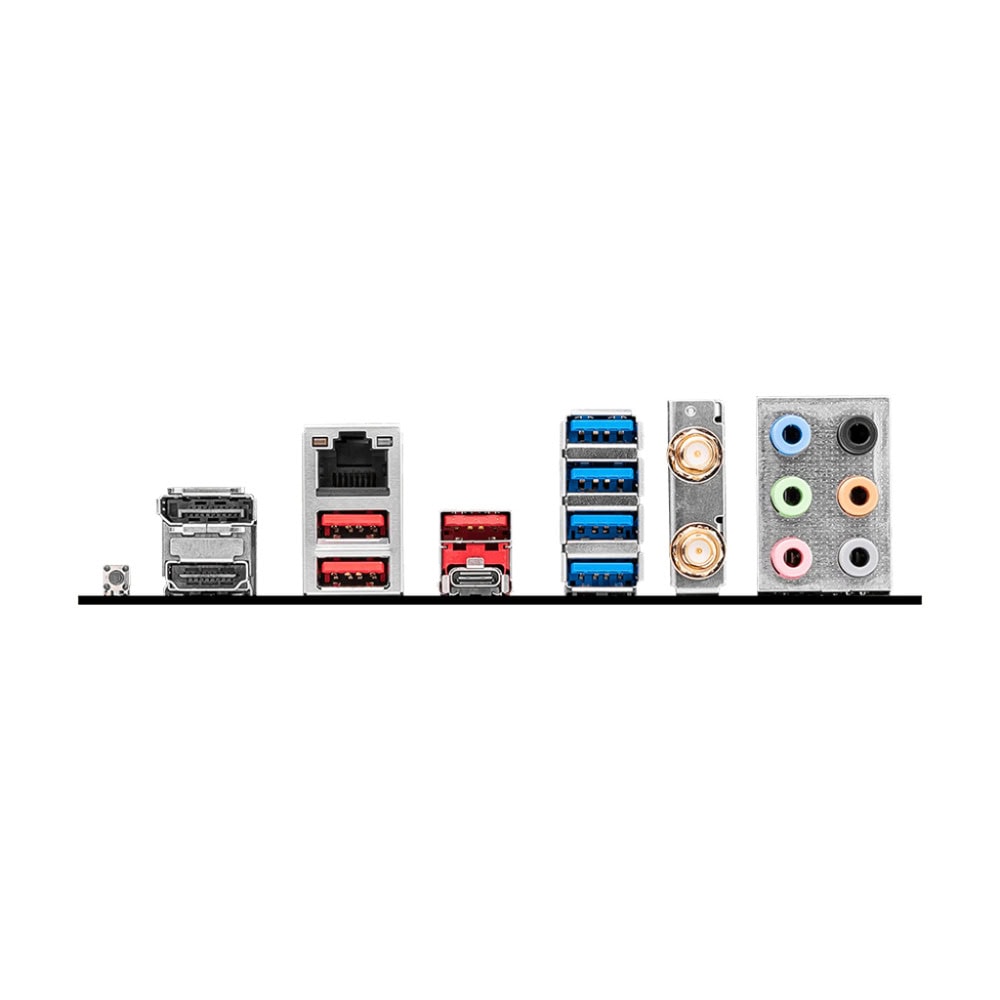

• Rear Panel: 4 × USB 5Gbps Type A, 3 × USB 10Gbps Type A, 1 × USB 20Gbps Type C

LAN

• Realtek® 8125BG 2.5G LAN

Wireless LAN & Bluetooth

• Wi-Fi 6E (pre-installed module in M.2 Key-E slot)
• Supports MU-MIMO TX/RX
• Supports 20 MHz / 40 MHz / 80 MHz bandwidth in 2.4 GHz / 5 GHz / 6 GHz* bands
• Supports 802.11 a/b/g/n/ac/ax
• Supports Bluetooth® 5.3**
  * Wi-Fi 6E 6 GHz band availability depends on regional regulations and is supported on Windows 11.
  ** Bluetooth 5.3 requires Windows 10 build 21H1 or Windows 11.

Internal IO

• 1 × ATX Power Connector
• 2 × CPU Power Connectors
• 1 × CPU Fan
• 1 × Pump Fan
• 4 × System Fans
• 2 × Front Panel (JFP)
• 1 × Chassis Intrusion (JCI)
• 1 × Front Audio (JAUD)
• 1 × COM Port (JCOM)
• 1 × Tuning Controller Connector (JDASH)
• 2 × Addressable V2 RGB LED Connectors (JARGB_V2)
• 2 × RGB LED Connectors (JRGB)
• 1 × TPM Header (supports TPM 2.0)
• 4 × USB 2.0 Ports
• 2 × USB 5Gbps Type A Ports

• 1 × USB 10Gbps Type C Port



  Form Factor

• ATX
  243.84mmx304.8mm
