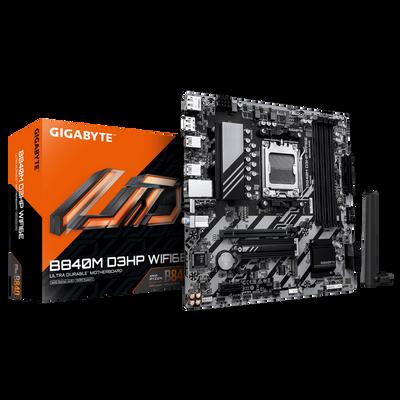

Name: Дънна платка GIGABYTE Mainboard B840M D3HP WIFI6E - Micro ATX - Socket AM5 - AMD B840
Price: 158.90 EUR
Availability: InStock

Описание

Общи Характеристики
Packaged Quantity	1
Процесор
Installed Qty	0
Max Supported Qty	1
Дънна платка
Form Factor	Micro ATX
Chipset Type	AMD B840
Supported RAM Technology	DDR5 SDRAM
Supported RAM Integrity Check	Non-ECC
Supported RAM Speed	7200 MT/s (O.C.), 5600 MT/s, 8000 MT/s (O.C.), 8200 MT/s (O.C.), 7000 MT/s (O.C.), 6800 MT/s (O.C.), 6400 MT/s, 6600 MT/s (O.C.), 7400 MT/s (O.C.), 7600 MT/s (O.C.), 7800 MT/s (O.C.), 7900 MT/s (O.C.), 7950 MT/s (O.C.), 5800 MT/s, 6000 MT/s, 6200 MT/s
Processor Socket	Socket AM5
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)	Unbuffered
RAM Slots	4 DIMM slots
Интерфейси
Internal Interfaces	1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 2 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features	AMD EXPO technology, Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
Max Supported Size	256 GB
Видео изход
Type	Graphics adapter (CPU required)
Аудио изход
Type	Sound card
Compliant Standards	High Definition Audio
Audio	High Definition Audio (8-channel)
Работа в мрежа
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.3, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g
Network Controller	MediaTek Wi-Fi 6E MT7902
Network	802.11a/b/g/n/ac/ax, Bluetooth 5.3, Gigabit Ethernet
Слотове за разширение
Expansion Slots	1 x CPU, 1 x M.2 socket (2280 M.2 Key M slot), 1 x M.2 socket (2280/2580 M.2 Key M slot), 4 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x PCIe 4.0 x16
Интерфейси
Storage Interfaces	PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
Storage	Serial ATA-600 (RAID), M.2 socket
USB / FireWire	USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1
Storage Ports	4 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports Configuration (Active)	1 x USB-C 3.2 Gen 1 + 1 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 3 x USB 2.0
USB / FireWire Ports Configuration (Headers)	1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0
Софтуер
Software Included	GIGABYTE Control Center, Norton Internet Security (OEM Version), HWiNFO, GIGABYTE Smart Backup
Размери и Тегло
Width	24,4 cm
Depth	24,4 cm
