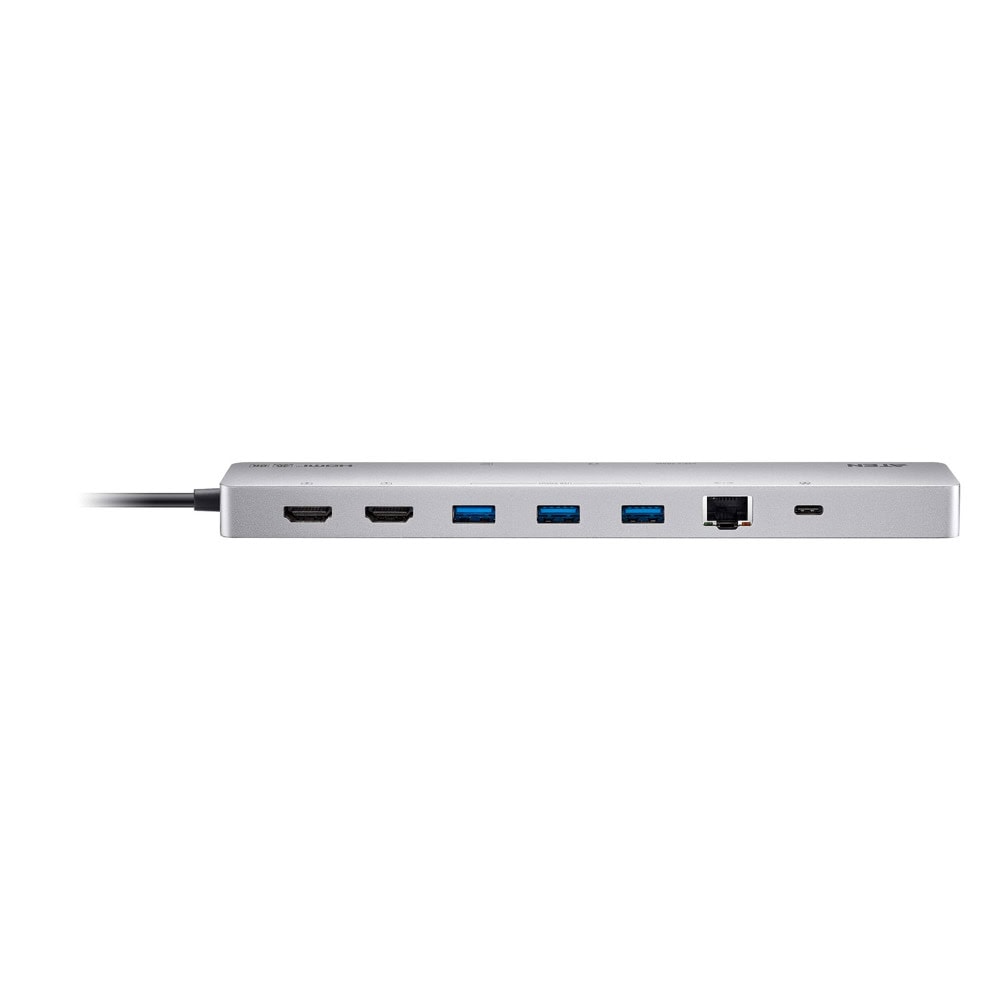

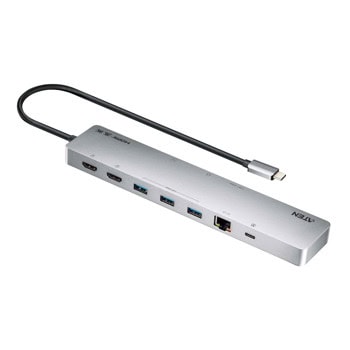

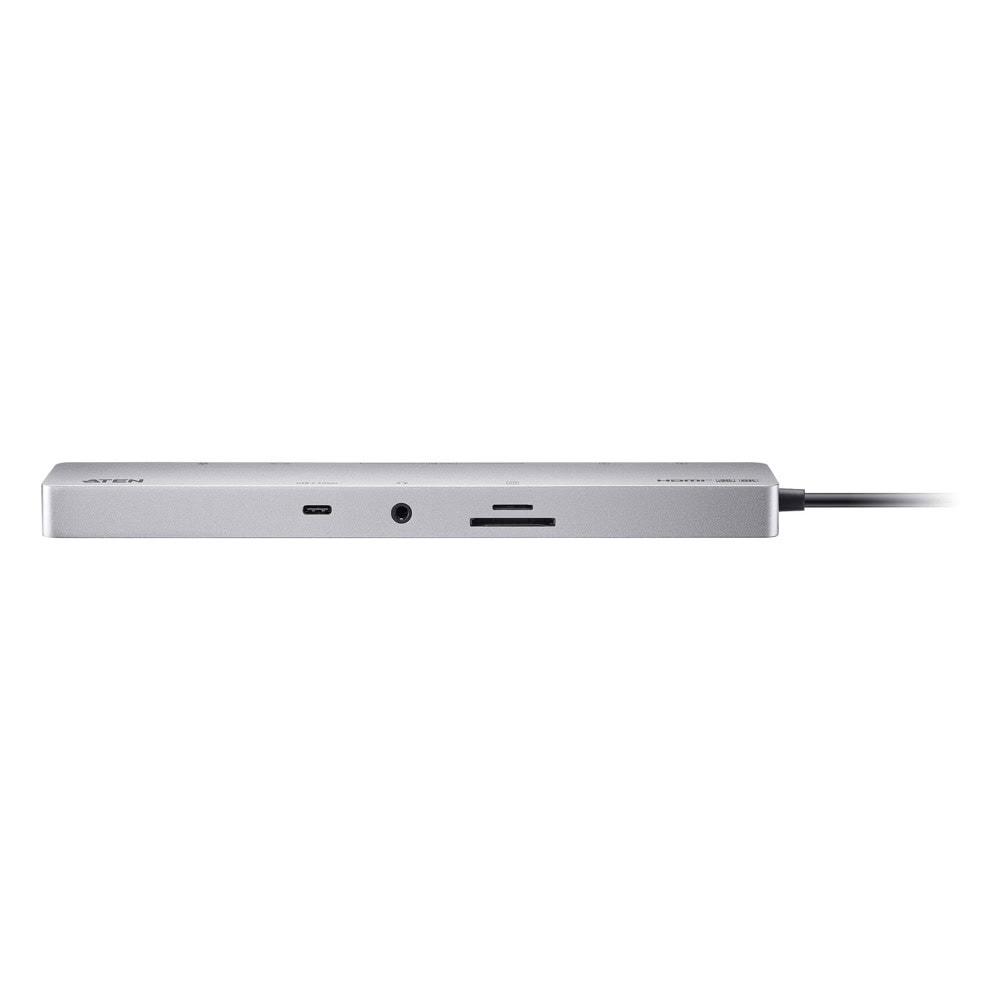

Name: Докинг станция ATEN UH3240, от USB-C към 2x USB-C, 3x USB-A, 2x HDMI, 1x AUX, 1x RJ45, 1x SD четец, 1x MicroSD четец, сива
Brand: Aten
SKU: DSMATENUH3240
Price: 100.07 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

ATEN UH3240

Dual 4K Display

Extend to two 4K Display with Multi-Stream Transport (MST)

Note: A self-supplied (original USB-C PD power adapter and cable from the source device is highly recommended) USB-C PD power adapter is needed.

11-in-1 USB-C Dock with Power Pass-through

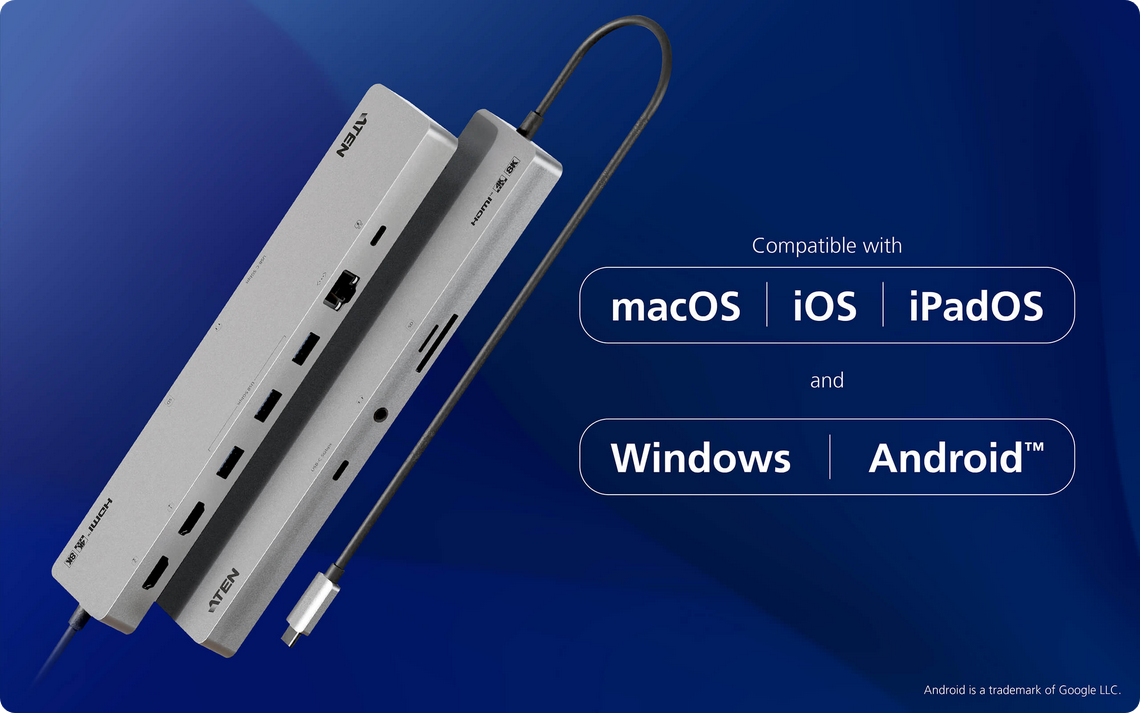

Multiplatform Support

*Relevant compatible devices must be USB-C enabled

Specifications

Computer Connections	1
Cable Length	40cm

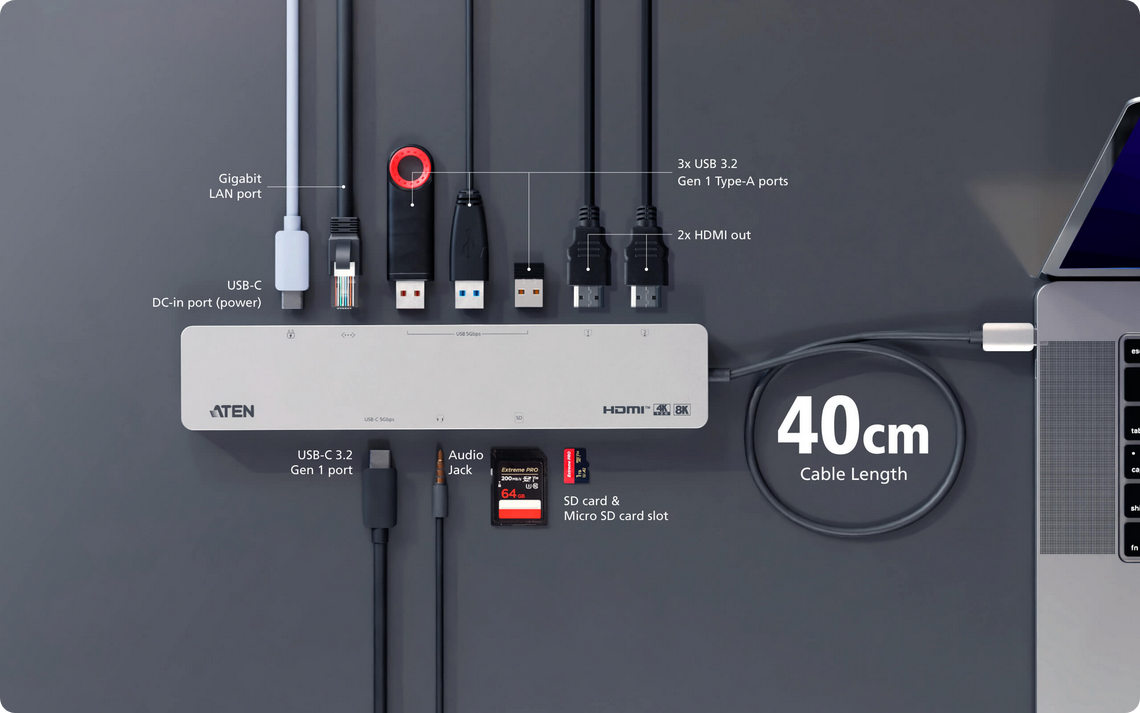

Connectors
Computer	1 x USB-C 3.2 Gen 1 Male Cable
Device	3 x USB 3.2 Gen 1 Type-A Female (Max. output 5V, 5W for each)* 1 x USB 3.2 Gen 1 Type-C Female (Max. output 5V, 5W)* Note: * 3 x USB Type-A and 1 x USB-C ports share total of 5V, 15W when UH3240 powered by external USB-C PD power adapter. * 3 x USB Type-A and 1 x USB-C ports share total of 5V, 12W power output when the UH3240 is powered by PC via USB-C (@ 5V, 3A bus-powered).
Video Output	2 x HDMI Female
LAN Ports	1 x Gigabit Ethernet Female
Audio	1 x 3.5mm stereo 4-pole microphone and headphone jack

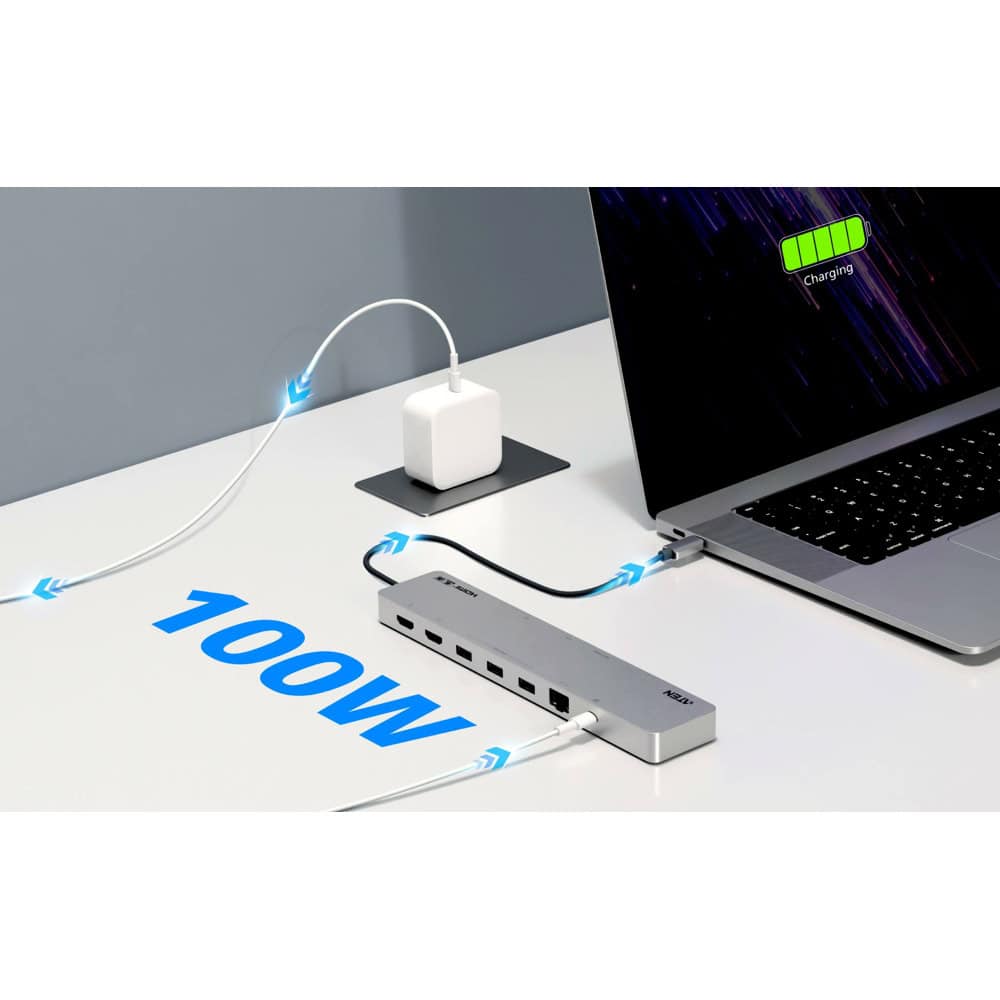

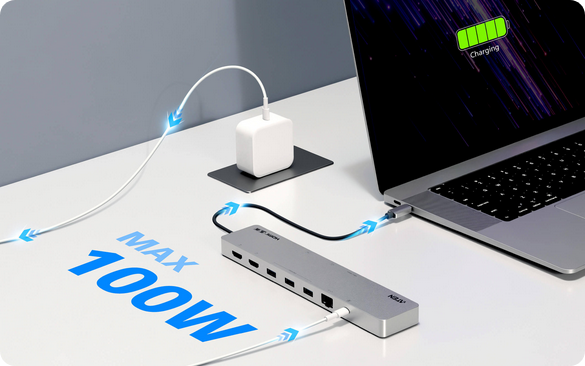

Power	1 x USB Type-C Female* Note: Supports USB Power Delivery 3.0 for charging up to 100W, power profiles include 5V, 9V, 12V, 15V, and 20V. The minimum system power requirement for basic USB functions and video output should be at least 5V, 6W. *A self-supplied (original USB-C PD power adapter and cable from the host device is highly recommended) USB-C PD power adapter is needed.
Performance
Flash Memory	1 x SD Card Slot (SD/SDHC/SDXC up to 2TB) 1 x Micro SD Card Slot (Micro SD/SDHC/SDXC up to 2TB)
Video Resolution	Single View: 7680 x 4320; 3840 x 2160 @ 120 Hz Dual View: 3840 x 2160 @ 60 Hz Note: The max. resolution supported for only HDMI 2 is 4K @ 120 Hz. We recommend using self-supplied HDMI 2.1 cable or our ATEN 2L-7D02H21 HDMI cable for 8K resolution. For system requirement of the host device, it is highly recommended that the Intel 12thGeneration Core Processor is used to achieve 8K resolution. To get max bandwidth, the host should support standard DP 1.4 Alt mode with DSC3:1 and HBR3. When connecting a DP 1.2 Alt mode supported device, the max resolution of HDMI is 4K @ 30 Hz due to bandwidth limitation. For extend mode to work, a computer’s graphics card must support MST technology. Mac computers only support single-extended display with identical content on the two connected monitors. *For MST (Extend Mode) – supports up 4K 3840 X 2160 @ 30 Hz; for SST (Mirror Mode) – supports up to 4K 3840 x 2160 @ 60 Hz.
Power Consumption	DC5V:18WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
System Requirements	Windows 10 or above, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please ﬁnd: https://www.intel.com/content/www/us/en/processors/processor-numbers.html macOS 10.12 or later, USB-C enabled computer Android 8.0 or later, USB-C enabled Smartphone with DP Alt Mode iPadOS 13.1 or later, iPad (USB-C)* iPad only supports single view in mirror mode. iOS 17.0 or later, iPhone (USB-C) *iPhone only supports single view in mirror mode.
Environmental
Operating Temperature	0 – 40°C
Storage Temperature	-20 – 60°C
Humidity	0 – 80% RH, Non-condensing
Physical Properties
Housing	Aluminum
Weight	0.18 kg ( 0.41 lb )
Dimensions (L x W x H)	22.00 x 4.30 x 1.60 cm (8.66 x 1.69 x 0.63 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Виж още Докинг станции Aten
Виж всички Докинг станции в категорията

Технически характеристики

Изход
USB Type-А:	Да
USB Type-C:	Да
Lightning:	Не
USB 2.0:	Не
USB 3.X:	Да
USB 4.X:	Не
Thunderbolt:	Не
DisplayPort:	Не
Mini DisplayPort:	Не
HDMI:	Да
DVI:	Не
VGA (D-Sub):	Не
RJ45:	Да
Аудио изход:	Да
Четец на карти:	Да
