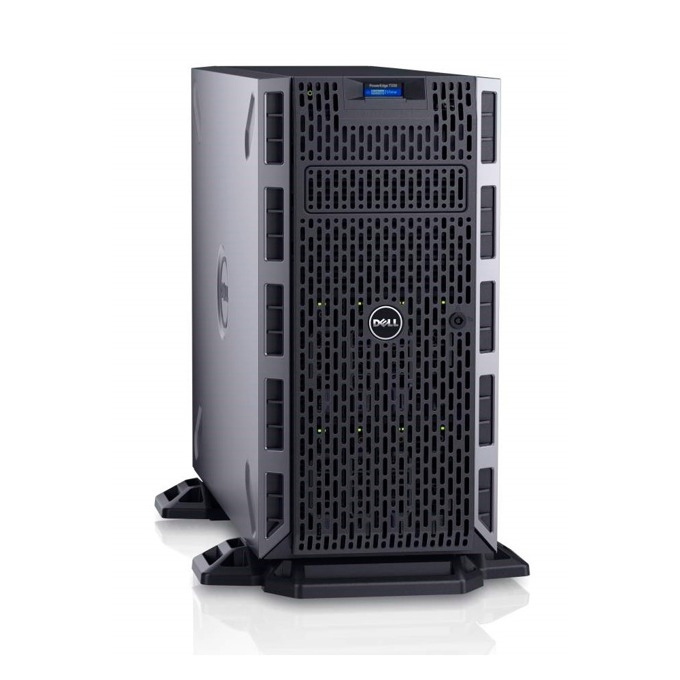

Сървър Dell PowerEdge T330 (#DELL02257), четириядрен Kaby Lake Intel Xeon E3-1230v6 3.5/3.90 GHz, 16GB 2400 UDIMM, 2x 1TB SATA, 2x 1GbE, 8x USB, без OS, 495W захранване

Form factor Rackable tower server (5U when racked)
Processor 1 processor from the following product families:
• Intel® Xeon® processor E3-1200 v5 product family
• Intel Pentium®
• Intel Core TM i3
• Intel Celeron®
Chipset Intel C236
Operating system Microsoft® Windows Server® 2012
Microsoft Windows Server 2012 R2, x64
Red Hat® Enterprise Linux®
VMware® Vsphere® 2015
SUSE Linux Enterprise Server
Memory Architecture: Up to 2133MT/s DDR4 DIMMs
Memory type: UDIMMs
Memory module sockets: 4
Maximum RAM: Up to 64GB
Hypervisor support Microsoft Windows Server (with Hyper-V ® enabled)
VMware® vSphere® ESXi®

Drive bays • 8 x 3.5” bays (also supports 2.5” HDD in 3.5” hybrid drive carrier)
• 3.5” Enterprise SATA 7.2k HDDs

Slots
1x8 PCIe 3.0 (x16 connector)
1x4 PCIe 3.0 (x8 connector)

RAID controllers PERC S130, PERC H330, PERC H730, PERC H830

Network controller Broadcom® 5720
Communications 2 X 1GbE LOM
Click here for T330 supported network interface cards (NICs) and host bus adapters (HBAs) and scroll
to “Additional Network Cards” section.
Power 1 x 495W
Chassis 5U rackable tower

Device Access 8 total USB:
• Rear: 2 x USB 3.0 + 4 x USB 2.0
• Front: 1 x USB 2.0 + 1 x USB 3.0
Rack Support ReadyRailsTM II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting
in 4-post threaded hole racks, with support for optional tool-less cable management arm.
Dimensions
H: chassis base - 430.3 mm/17.04 in
• With foot - 443.3 mm/17.45 in
• With wheel - 471.3 mm/18.55 in
W: chassis base - 218 mm/8.58 in
• With foot - 304.5 mm/11.98 in
D: front to rear wall (w/o bezel) - 542.2 mm/21.33 in
• front to PSU handle (w/o bezel) - 578.42 mm/22.77 in
• front to rear wall (with bezel) - 558.6 mm/21.99 in
• front to PSU handle (with bezel) - 594.82 mm/23.41 in
