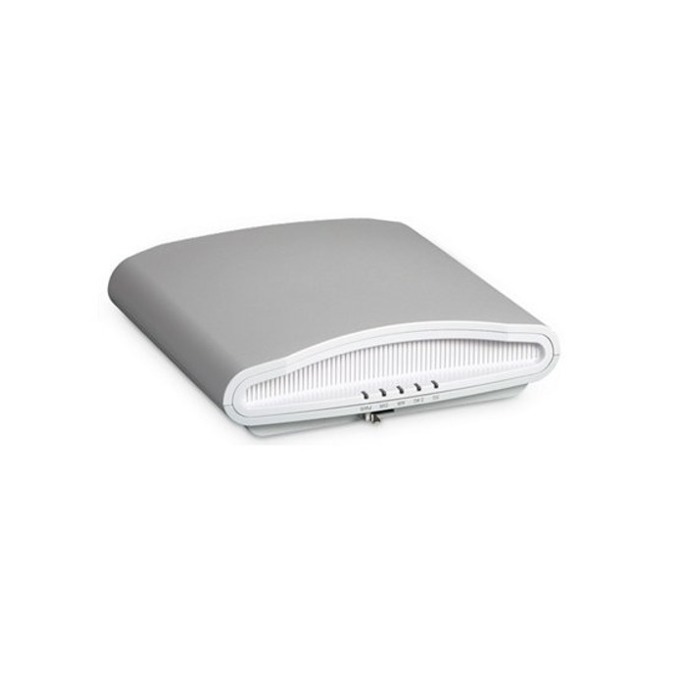

Точка за достъп Dell EMC Networking Ruckus R710, 2.4GHz(600Mbps)/5GHz(1733Mbps), 2x Gigabit Ethernet, USB, PoE+

WI-FI
Wi-Fi Standards
• IEEE 802.11a/b/g/n/ac Wave 2
Supported Rates
• 802.11ac: 6.5 to 1,733Mbps (MCS0 to MCS9, NSS =
1 to 4 for VHT20/40/80)
• 802.11n: 6.5 Mbps to 600Mbps (MCS0 to MCS31)
• 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps
• 802.11b: 11, 5.5, 2 and 1 Mbps
Supported Channels • 2.4GHz: 1-13
• 5GHz: 36-64, 100-144, 149-165
MIMO • 4x4 SU-MIMO
• 4x4 MU-MIMO
Spatial Streams • 4 streams for SU-MIMO
• 3 streams for MU-MIMO
Channelization • 20, 40, 80MHz
Security
• WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic
PSK
• WIPS/WIDS
Other Wi-Fi Features
• WMM, Power Save, Tx Beamforming, LDPC, STBC,
802.11r/k/v
• Hotspot
• Hotspot 2.0
• Captive Portal
• WISPr

RF
Antenna Type
• BeamFlex+ adaptive antennas with polarization diversity
• Adaptive antenna that provides 4,000+ unique antenna patterns
Antenna Gain (max)
• Up to 3dBi
Peak Transmit Power
(aggregate across
MIMO chains)
• 2.4GHz: 28dBm
• 5GHz: 28dBm
Minimum Receive Sensitivity1
• -104dBm
Frequency Bands
• ISM (2.4-2.484GHz)
• U-NII-1 (5.15-5.25GHz)
• U-NII-2A (5.25-5.35GHz)
• U-NII-2C (5.47-5.725GHz)
• U-NII-3 (5.725-5.85GHz)

2.4GHZ RECEIVE SENSITIVITY
HT20 HT40
MCS0 MCS7 MCS0 MCS7
-97 -79 -94 -77

5GHZ RECEIVE SENSITIVITY
VHT20 VHT40 VHT80
MCS0 MCS7 MCS0 MCS7 MCS0 MCS7
-98 -80 -94 -77 -91 -74

2.4GHZ TX POWER TARGET
Rate Pout (dBm)
MCS0 HT20 22
MCS7 HT20 19

5GHZ TX POWER TARGET
Rate Pout (dBm)
VHT20 22
MCS0, VHT40 22
MCS7, VHT40, VHT80 19
MCS9, VHT40, VHT80 16

PERFORMANCE AND CAPACITY
Peak PHY Rates • 2.4GHz: 600Mbps
• 5GHz: 1733Mbps
Client Capacity • Up to 512 clients per AP
SSID • Up to 31 per AP

RUCKUS RADIO MANAGEMENT
Antenna Optimization
• BeamFlex+
• Polarization Diversity with Maximal Ratio Combining
(PD-MRC)
Wi-Fi Channel Management
• ChannelFly
Client Density Management
• Band Balancing
• Client Load Balancing
• Airtime Fairness
• Airtime-based WLAN Prioritization
SmartCast Quality of
Service
• QoS-based scheduling
• Directed Multicast
• L2/L3/L4 ACLs
Mobility • SmartRoam
Diagnostic Tools • Spectrum Analysis
• SpeedFlex

NETWORKING
Controller Platform
Support
• SmartZone
• ZoneDirector
• Unleashed2
• Standalone
Mesh • SmartMesh™ wireless meshing technology. Selfhealing
Mesh
IP • IPv4, IPv6, dual-stack
VLAN
• 802.1Q (1 per BSSID or dynamic per user based on
RADIUS)
• Port-based
802.1x • Authenticator & Supplicant
Tunnel • L2TP
Policy Management
Tools
• Application Recognition and Control
• Access Control Lists
• Device Fingerprinting

PHYSICAL INTERFACES
Ethernet
• Two 1Gbps Ethernet ports
• Power over Ethernet (802.3af/at/bt) with Category
5/5e/6 cable
• Link Aggregation (LACP)
USB • 1 USB 2.0 port, Type A
1 Rx sensitivity varies by band, channel width and MCS rate.
2 Refer to Unleashed datasheets for SKU ordering information.
R710
Indoor 802.11ac Wave 2 4x4:4 Wi-Fi Access Point DATA SHEET
Copyright © 2019 Ruckus Networks, an ARRIS company. All rights reserved. 5

PHYSICAL CHARACTERISTICS
Physical Size • 22 cm (L), 22 cm (W), 6 cm (H)
• 8.7in (L) x 8.7in (W) x 2.4in (H)
Weight • 1.12 kg (2.5 lb)
Mounting • Wall, Drop ceiling, Desk
• Secure bracket (sold separately)
Physical Security
• Hidden latching mechanism
• Kensington Lock Hole
• T-bar Torx
Operating Temperature • -4ºC (-14ºF) to 60ºC (140ºF)
Operating Humidity • Up to 95%, non-condensing

POWER
Power Supply Operating Characteristics Max Power Consumption
802.3af
• 2.4GHz: 2x4, 19dBm per chain
• 5GHz: 4x4, 20dBm per chain
• Functional Limitation: 2nd
Ethernet disabled USB disabled
• Peak: 25W, including
USB
loading and
100m cable
802.3at, PoE+/injector,
VDC
• 2.4GHz: 4x4, 22dBm per chain
• 5GHz: 4x4, 20dBm per chain
• Functional Limitation: None

CERTIFICATIONS AND COMPLIANCE
Wi-Fi Alliance4
• Wi-Fi CERTIFIED™ a, b, g, n, ac
• Passpoint®, Vantage
Standards Compliance5
• EN 60950-1 Safety
• EN 60601-1-2 Medical
• EN 61000-4-2/3/5 Immunity
• EN 50121-1 Railway EMC
• EN 50121-4 Railway Immunity
• IEC 61373 Railway Shock & Vibration
• UL 2043 Plenum
• EN 62311 Human Safety/RF Exposure
• WEEE & RoHS
• ISTA 2A Transportation
