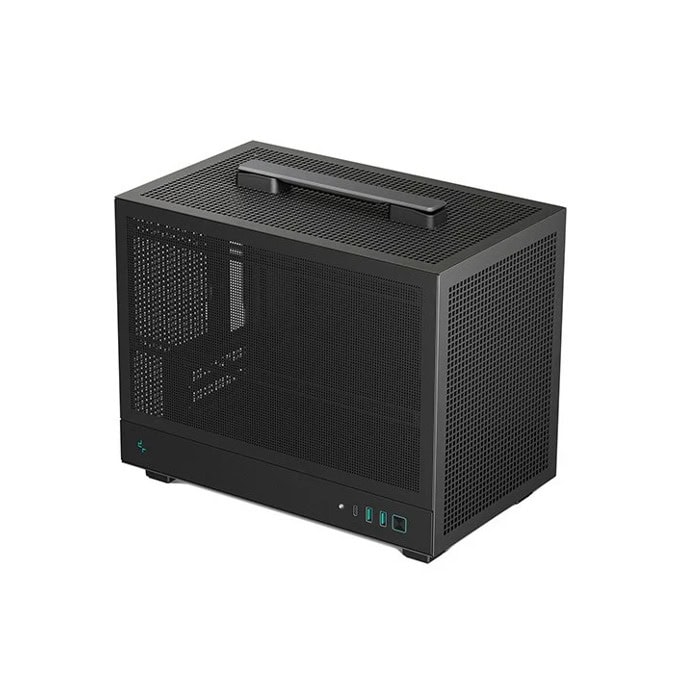

DeepCool CH160 Mesh

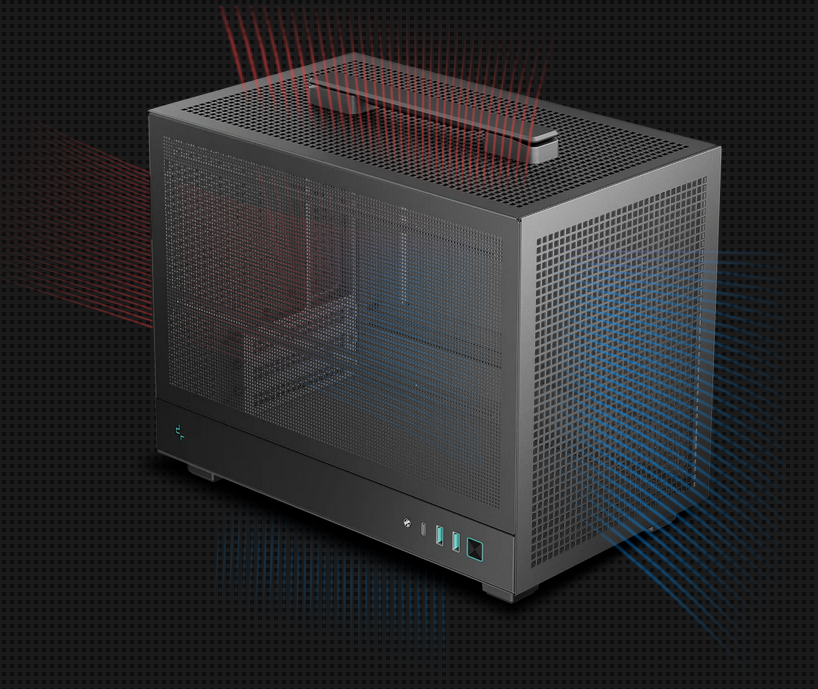

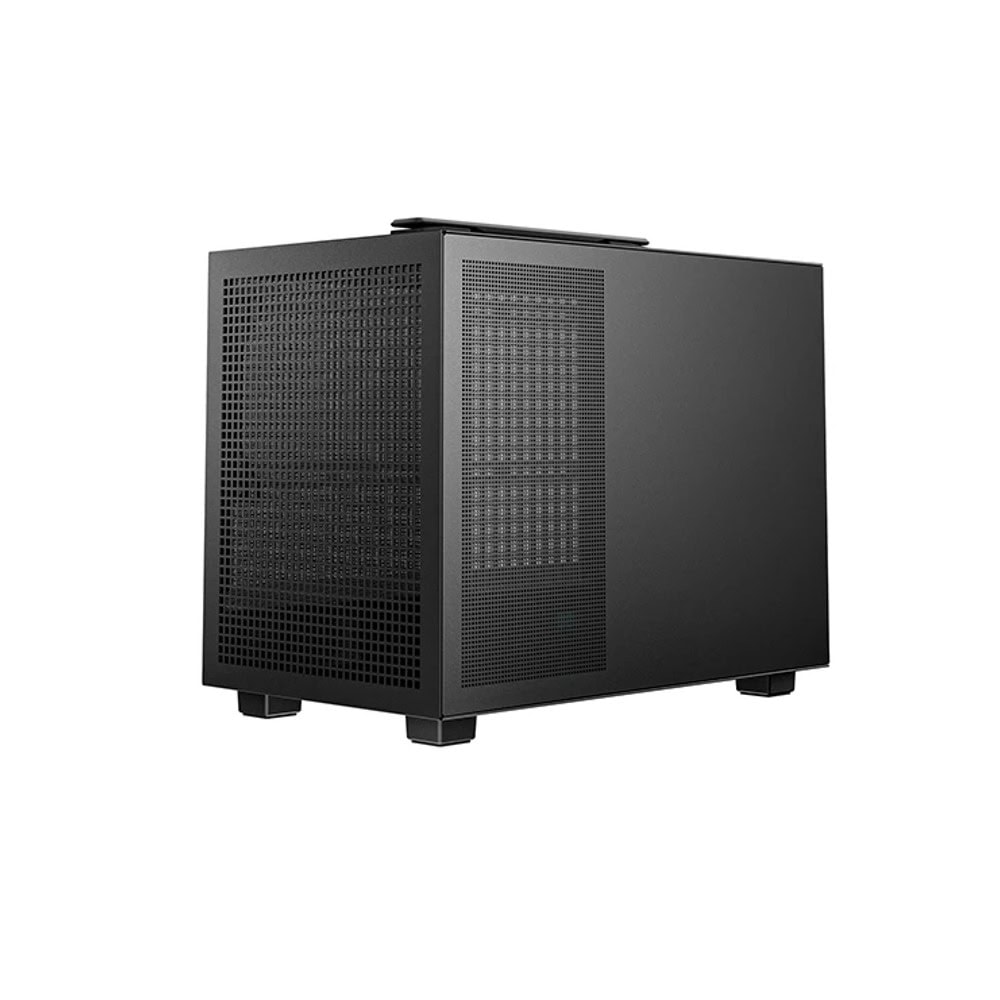

High airflow panels Mesh panels surround the CH160 MESH from numerous sides and create a high-airflow, small-form-factor case like no other. | ![]() |

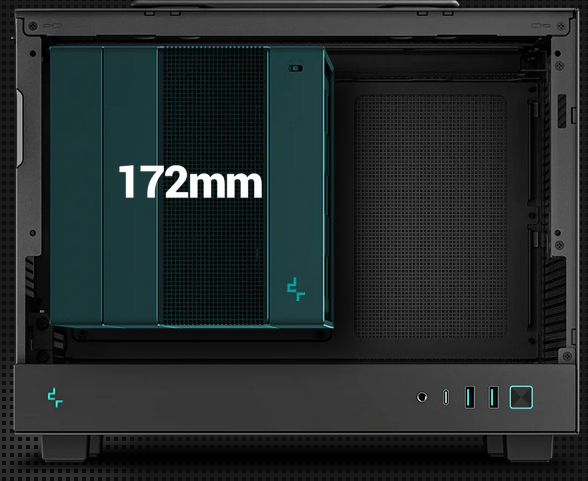

![]() | Full sized air cooling! Lack of air cooler support in small mini-ITX cases is a thing of the past. The CH160 MESH can support giant air coolers up to 172mm in height! |

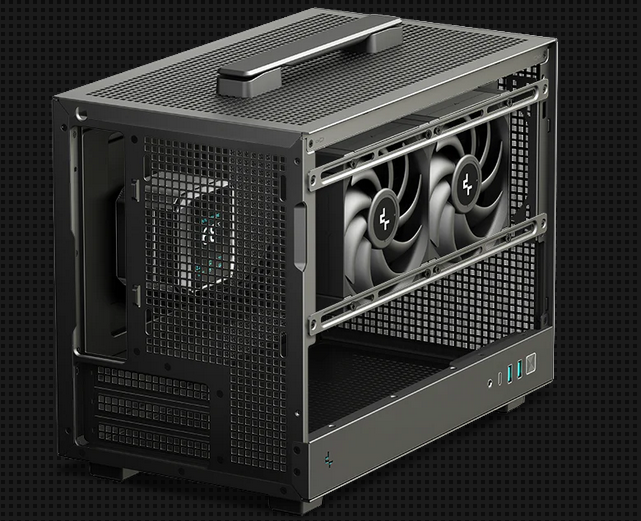

Supports 240mm AIO! The full mesh panel layout offers a new configuration support with a 240mm AIO. | ![]() |

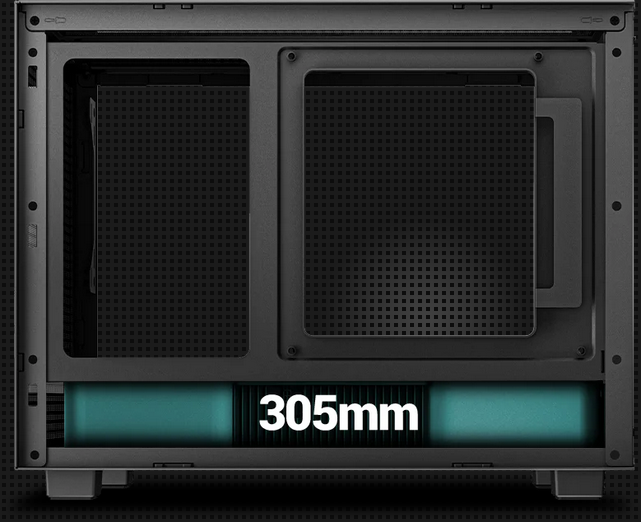

![]() | No added GPU latency! Designed to accommodate most 3-slot dual-fan GPUs that are shorter than 305mm in length and can be directly inserted into the motherboard without the assistance of a riser cable—no added GPU latency concerns! *GPU Length depends on the size of PSU |

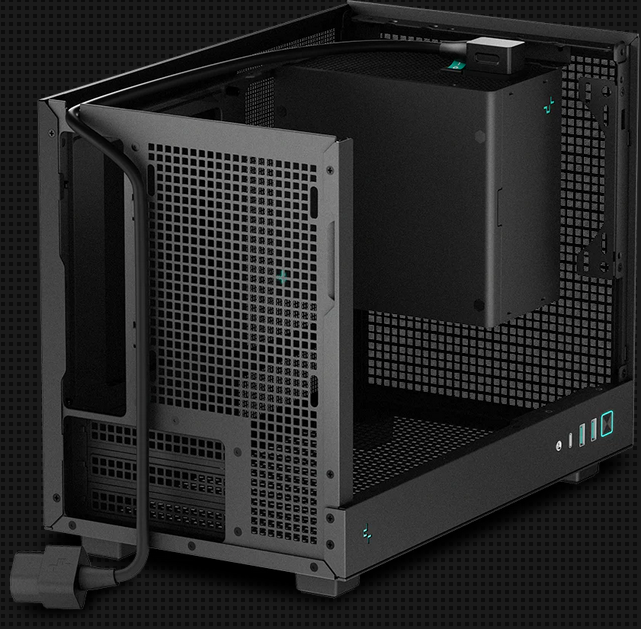

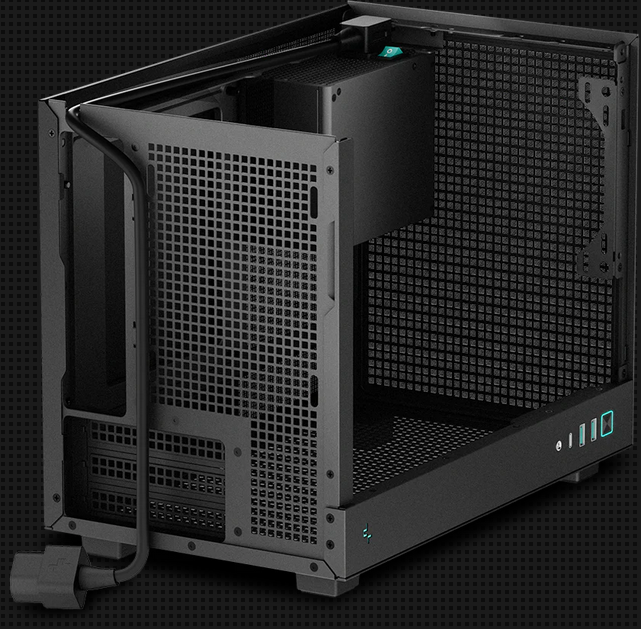

Flexible power options
Whether you choose to go with ATX (140) / SFX, or SFX-L power supplies. GPU Length Limit: 230mm / 305mm
ATX | SFX |
![]() | ![]() |

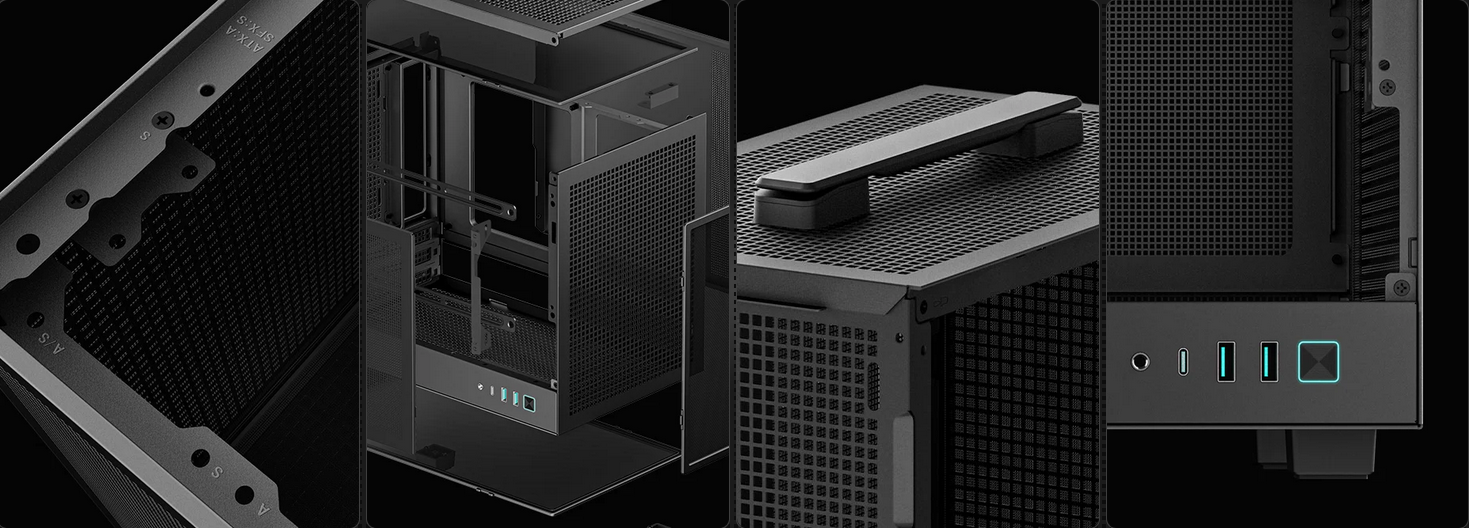

Quality of life improvements

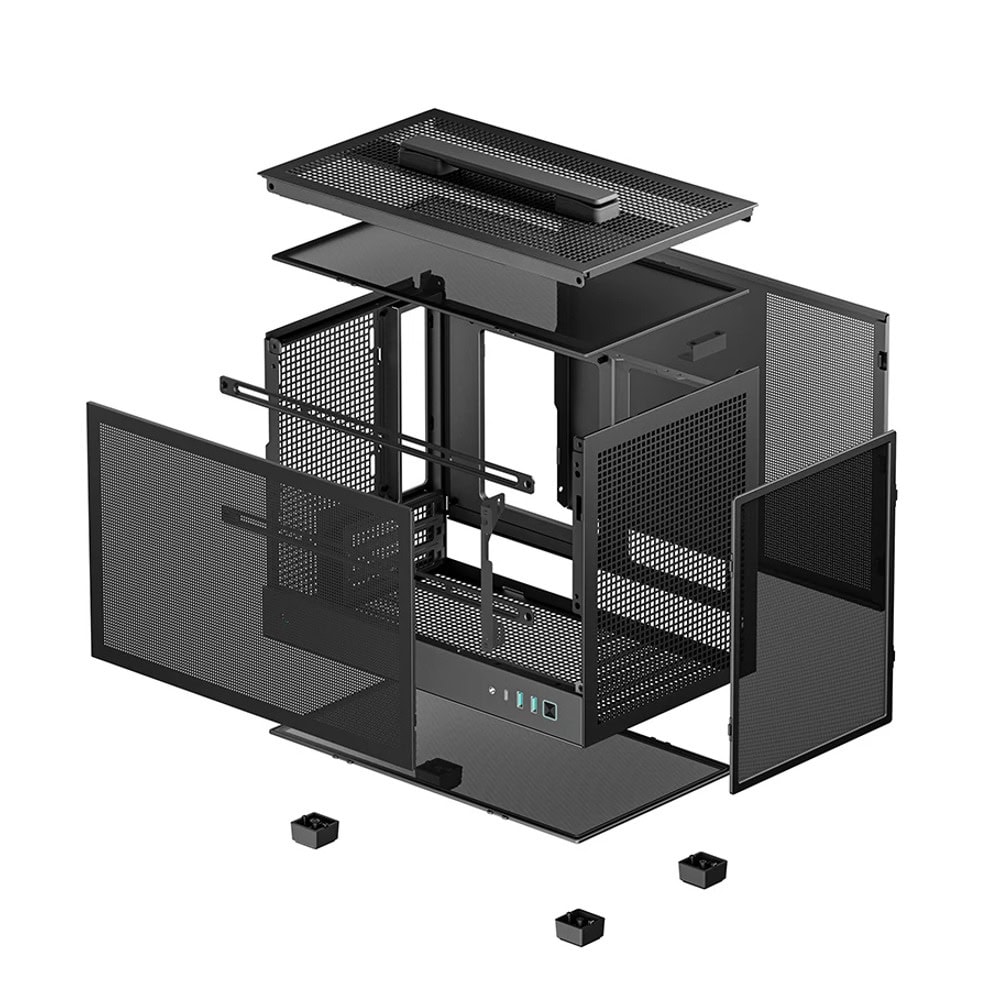

Equipped with options such as removable fan brackets, where the front fan bracket can be utilized to support both an SSD and an HDD drive; three removable dust filters for ease of cleaning; a nice and sturdy carrying handle; two USB 3.0, a Gen2 Type-C, and a hybrid audio port, the CH160 MESH makes everything a little easier.

Specifications
| Product Dimensions | 336×200×283.5mm(L×W×H) |
| Net Weight | 3.1Kg |
| Materials | ABS+PVC+SPCC |
| Motherboard Support | Mini-ITX |
| Front I/O Ports | USB3.0×2、Audio×1、Gen2 Type-C×1 |
| 3.5" Drive Bays | 1(2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three) |
| 2.5" Drive Bays | 1(2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three) |
| Expansion Slots | 3 Slots |
| Pre-Installed Fans | None |
| Fan Support | Front: 1×120 mm(2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three) Top: 2×120mm Side: 2×120mm Rear: 1×120mm |
| Radiator Support | Side:240mm |
| CPU Cooler Height Limit | 172mm |
| GPU Size Limit | Length: SFX/SFX-L: 305mm / ATX: 230mm Height: 138mm Width: 65mm (3 Slots) |
| Power Supply Type | ATX PS2(maximum length: 140mm)/ SFX / SFX-L |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Компютърни кутии DeepCool
Виж всички Компютърни кутии в категорията
| Захранване: | Не |
|---|---|
| Прозорец: | Не |
| Цвят: | Черен |
| E-ATX: | Не |
| ATX: | Не |
| Micro-ATX: | Не |
| Mini-ITX: | Да |
