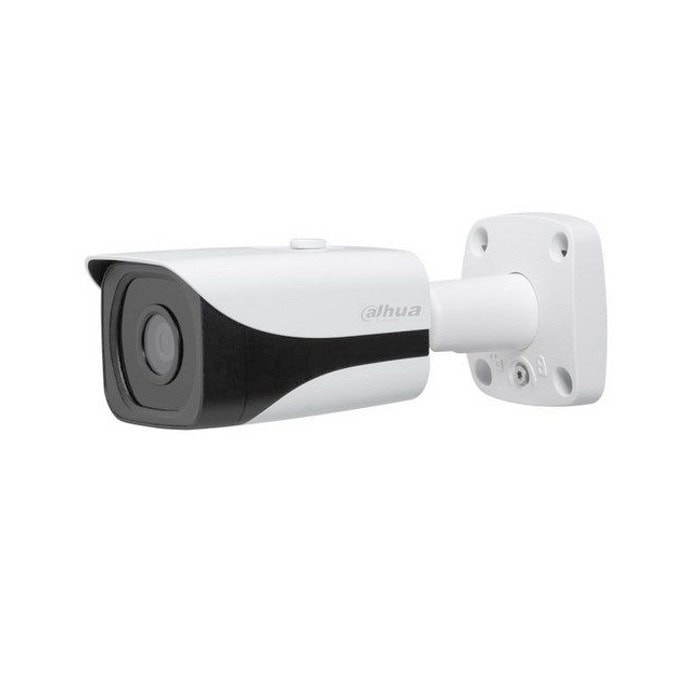

Dahua IPC-HFW4631E-SE-0280B
6MP WDR IR Mini Bullet Network Camera
> 1/2.9” 6Megapixel progressive scan STARVISTM CMOS
> H. 265&H.264 triple-stream encoding
> 20fps@6MP(3072x2048), 25/30fps@4MP(2688x1520)
> Smart Detection supported
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8mm fixed lens (3.6mm optional)
> Max. IR LEDs Length 40m
> Micro SD Memory,IP67, PoE
Camera:
Image Sensor- 1/2.9” 6Megapixel progressive scan CMOS
Effective Pixels- 3072(H) x 2048(V)
RAM/ROM- 512MB/32MB
Scanning System- Progressive
Electronic Shutter Speed- Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination
0.04Lux/F1.6( Color,1/3s,30IRE)
0.4Lux/F1.6( Color,1/30s,30IRE)
0Lux/F1.6(IR on)
S/N Ratio- More than 50dB
IR Distance- Distance up to 40m (131ft)
IR On/Off Control- Auto/ Manual
IR LEDs- 2
Lens:
Lens Type- Fixed
Mount Type- Board-in
Focal Length- 2.8mm (3.6mm optional)
Max. Aperture- F1.6(F1.6)
Angle of View- H: 98° (69°), V: 67° (48°)
Optical Zoom- N/A
Focus Control- Fixed
Close Focus Distance- 0.9m(1.7m)
DORI Distance:
Lens:
2.8 mm:
Detect- 69m(226ft)
Observe- 28m(92ft)
Recognize- 14m(46ft)
Identify- 7m(23ft)
3.6 mm:
Detect- 89m(292ft)
Observe- 36m(118ft)
Recognize- 18m(59ft)
Identify- 9m(30ft)
Pan/Tilt/Rotation:
Pan/Tilt/Rotation Range- Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚
Intelligence:
IVS- Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions- Face Detection
Video:
Compression- H.265+/H.265/H.264+/H.264
Streaming Capability- 3 Streams
Resolution:
(3072×2048)/(3072×1728)/(2592×1944)/(2688×1520)/(2560×1440)/(2304×1296)/1080P(1920×1080)/SXGA(1280×1024)/1.3M(1280× 960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate:
Main Stream: 6MP (1~20fps), 4MP(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 1080P(1~25/30fps)
Bit Rate Control- CBR/VBR
Bit Rate
H.264: 24K ~ 10240Kbps
H.265: 14K ~ 9984Kbps
Day/Night- Auto(ICR) / Color / B/W
BLC Mode- BLC / HLC / WDR(120dB)
White Balance- Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control- Auto/Manual
Noise Reduction- 3D DNR
Motion Detetion- Off / On (4 Zone, Rectangle)
Region of Interest- Off / On (4 Zone)
Electronic Image Stabilization (EIS)- N/A
Smart IR- Support
Defog- N/A
Digital Zoom- 16x
Flip- 0°/90°/180°/270°
Mirror- Off / On
Privacy Masking- Off / On (4 Area, Rectangle)
Audio:
Compression- N/A
Network:
Ethernet- RJ-45 (10/100Base-T)
Protocol:
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP
Interoperability
ONVIF, PSIA, CGI
Streaming Method- Unicast / Multicast
Max. User Access- 10 Users /20 Users
Edge Storage:
NAS
Local PC for instant recording
Mirco SD card 128GB
Web Viewer- IE, Chrome, Firefox, Safari
Management Software- Smart PSS, DSS, Easy4ip
Smart Phone- IOS, Android
Certifications:
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface:
Video Interface- N/A
Audio Interface- N/A
RS485- N/A
Alarm- N/A
Electrical:
Power Supply- DC12V, PoE (802.3af)(Class 0)
Power Consumption- <6.5W
Environmental:
Operating Conditions- -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions- -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection- IP67
Vandal Resistance- N/A
Construction:
Casing- Metal
Dimensions- 180mm×70mm×70mm (7.09”×2.76”×2.76”)
Net Weight- 0.41kg (0.91lb)
Gross Weight- 0.53 kg (1.17lb)
