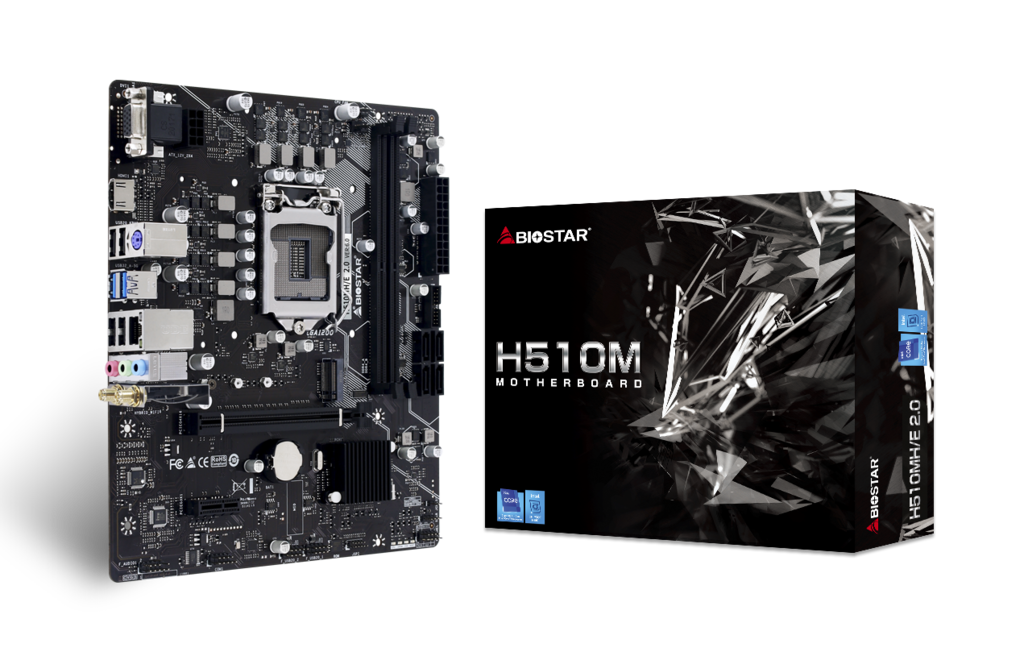

Дънна платка BIOSTAR H510MH 2.0, H510, LGA 1200, DDR4, PCIe 4.0, 4x SATA 6Gb/s, 1xM.2, 4 x USB 3.2 Gen1, ATX

Дънна платка BIOSTAR H510MH 2.0, mATX, socket 1200

Supports 10th/11th Generation Intel Core™ Processor
Intel H510 single chip architecture
Supports 2-DIMM DDR4- 3200/ 2933/ 2666/ 2400/2133/ 1866 up to 64 GB Memory
Supports PCIe 4.0
Supports PCIe M.2 3.0 (32Gb/s)
Supports USB 3.2 Gen1
Supports WiFi 6 module (No WiFi 6 card included)

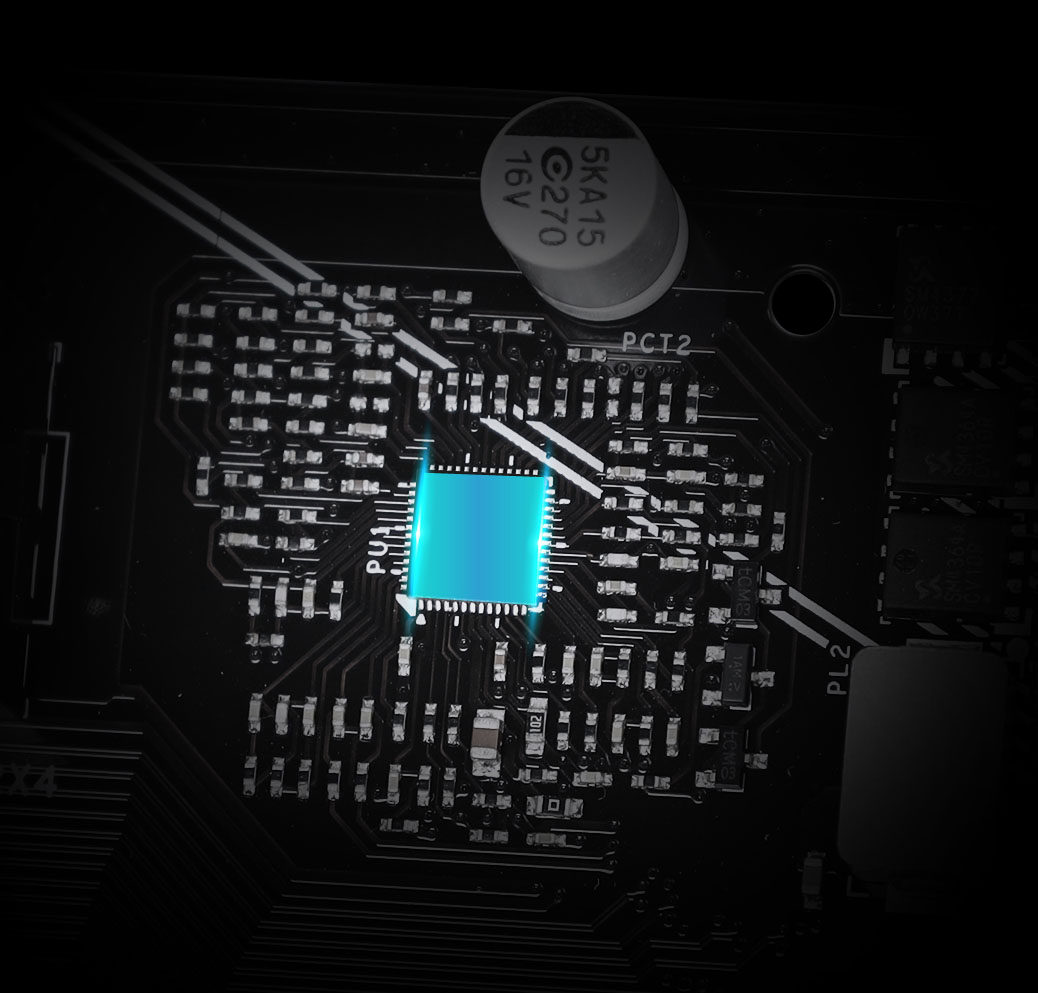

Super Hyper PWM

Delivers stable power with 100% fixed voltage

Ensures all critical components are under protected

Offers excellent precision, performance and reliability

★ Provides more accurate voltage adjustment

★ Prevents voltage adjustment of the time delay

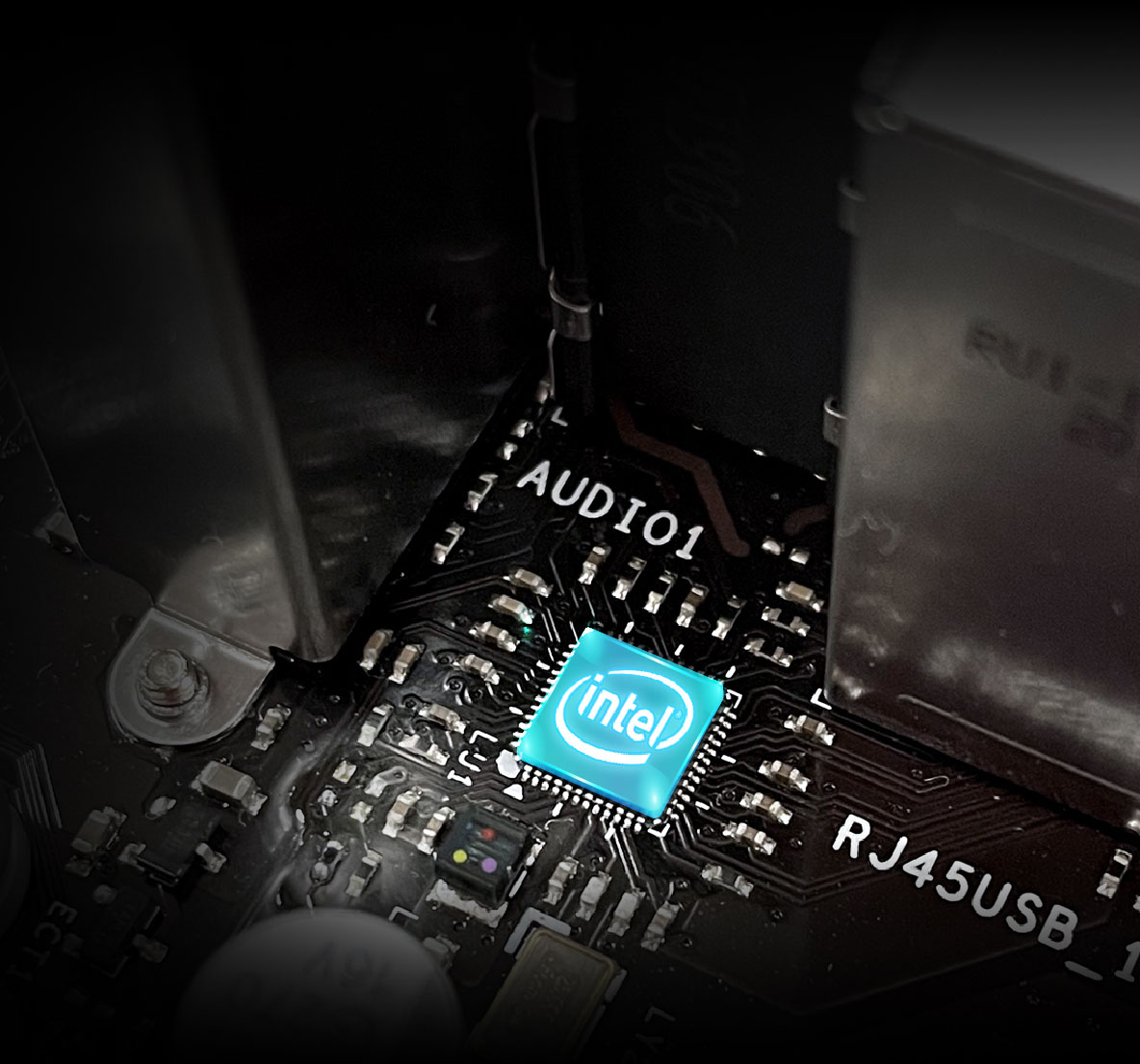

Intel GbE LAN

Reduces your CPU load

Increases your network speed

Enhances network performance

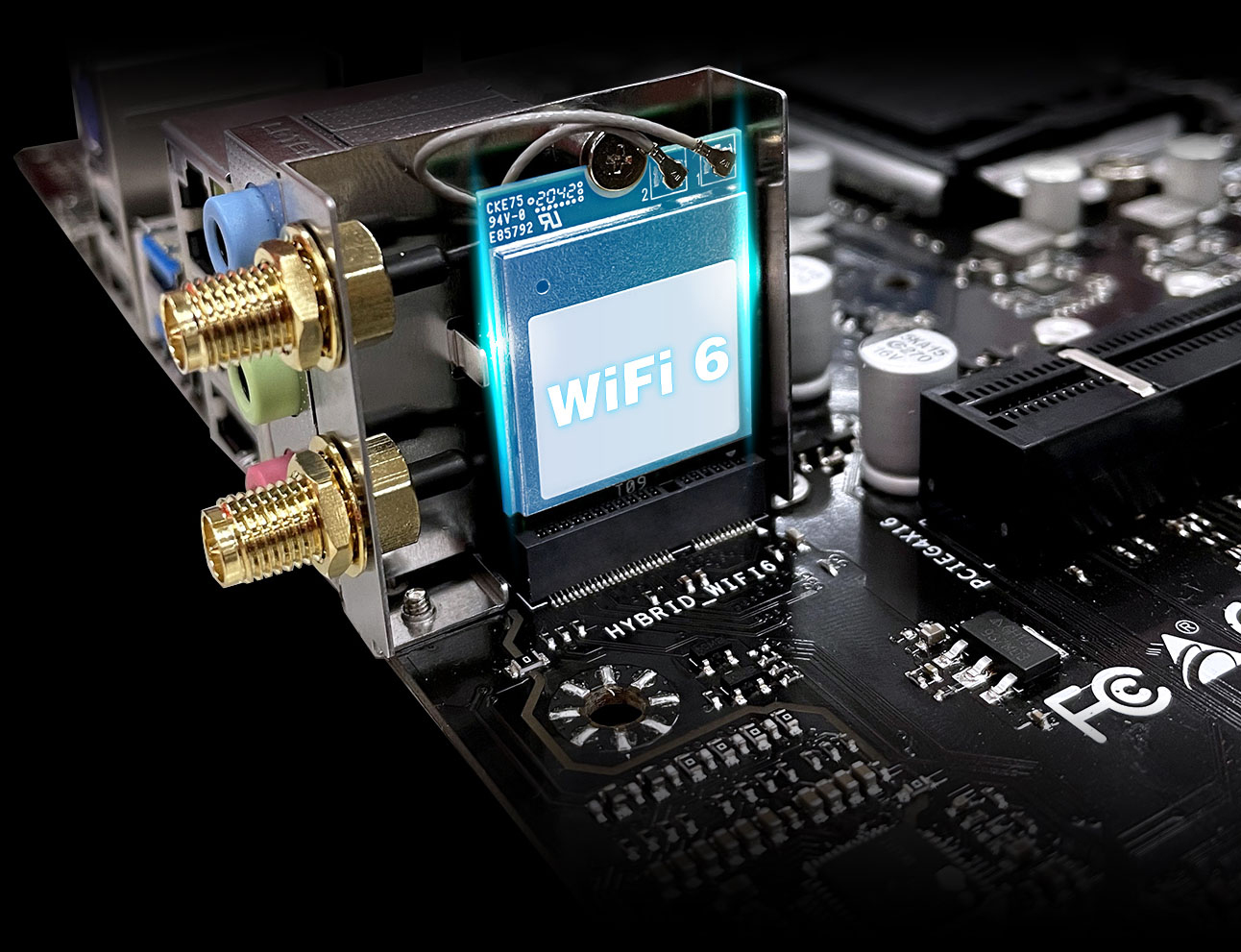

WiFi 6

Improves network efficiency

Provides a wider range to increase network capacity

Specification

Chipset     Intel H510

CPU SUPPORT     Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package

MEMORY     Supports Dual Channel DDR4 3200/ 2933/ 2666/ 2400/ 2133/ 1866
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO     By CPU model
Supports DX12
Supports HDCP
Supports HDMI 1.4 version
STORAGE     -- Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports
4 x SATA III Connectors (6Gb/s)
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module.
Supports PCIe 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD & SATA III (6Gb/s) SSD

* When using SATA SSD module on M.2 slot (M2_PCIEG3_32G_SATA_1), the SATA_1 connector will be disabled.

LAN     Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC     ALC897
7.1 Channels, High Definition Audio

USB     4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)
EXPANSION SLOT     1 x PCIe 3.0 x1 Slot
1 x PCIe 3.0/ 4.0 x16 Slot (x16 mode)

* The PCIe 4.0 only depends on Rocket Lake CPUs.
REAR I/O     2 x WIFI Antenna Ports
1 x PS/2 Keyboard / Mouse
1 x HDMI Port
1 x VGA Port
2 x USB 3.2 (Gen1) Ports
4 x USB 2.0 Port
1 x LAN port
3 x Audio Jack
INTERNAL I/O     4 x SATA III Connectors (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel

CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
* M.2 (E key) Wi-Fi card is not provided
H/W MONITORING     CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION     Micro ATX Form Factor Dimension: 20.8 cm x 23.6 cm ( W x L )
OS SUPPORT     Supports Windows 10(64bit) / 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE     BullGuard
ACCESSORIES     2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
1 x WiFi accessories
FEATURES     BIOS-Flasher
