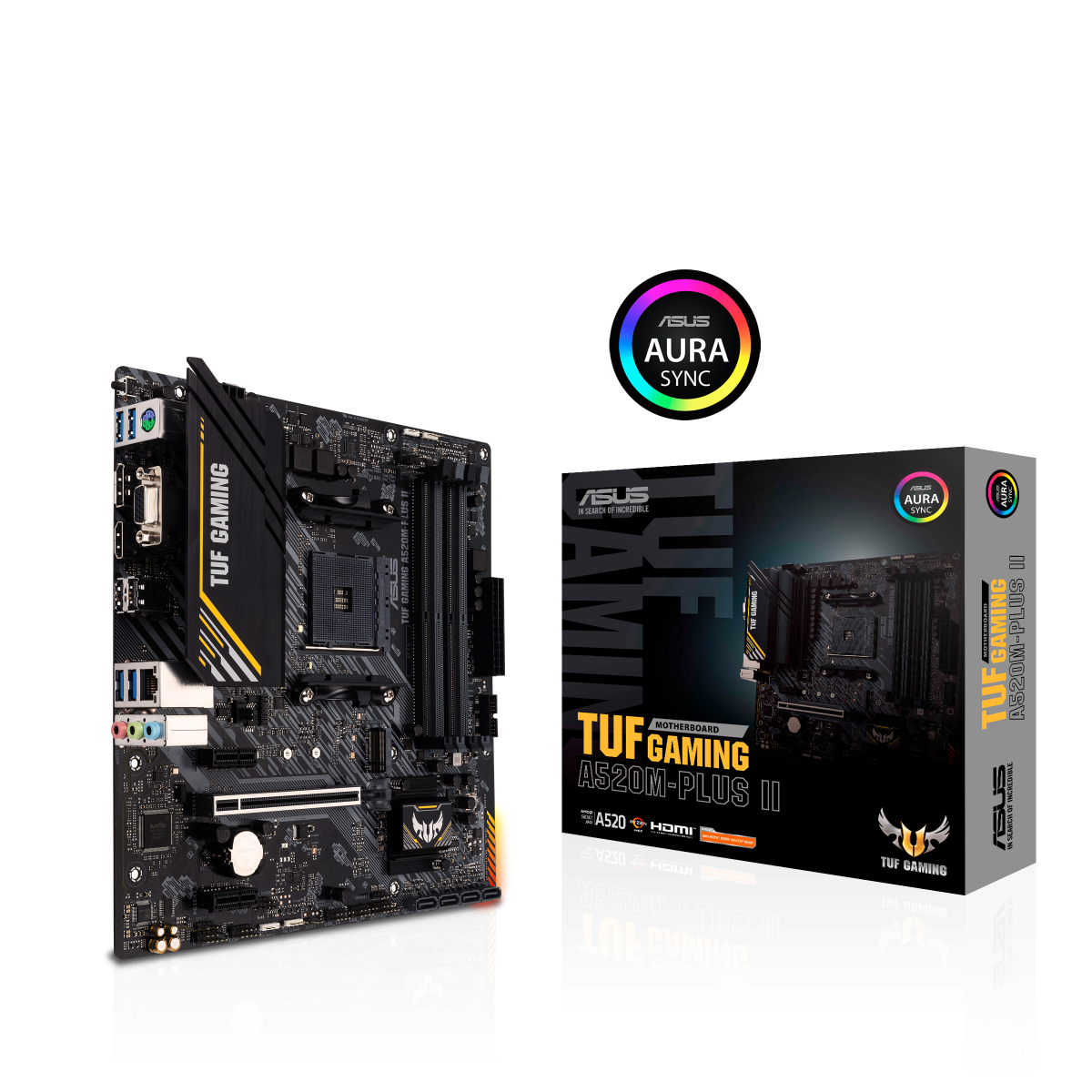

Дънна платка Asus TUF GAMING A520M-PLUS II, A520, DDR4, PCI-E 3.0 (DP/HDMI/VGA), 4x SATA 6Gb/s, 1x M.2, 4x USB 3.2 Gen 1, Micro ATX

AMD A520 (Ryzen AM4) micro ATX gaming motherboard with M.2 support, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, and AURA Addressable Gen 2 headers

• AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
• Comprehensive cooling: Large VRM heatsink, PCH heatsink, Fan Xpert 2+
• Made for online gaming: TUF LANGuard and TurboLAN technology
• Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware

Specifications:

CPU

AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors*

Chipset

AMD A520 Chipset

Memory

4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory*

Dual Channel Memory Architecture

*ECC Memory (ECC mode) support varies by CPU.

*Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics

1 x DisplayPort 1.2
1 x D-Sub
1 x HDMI™ 2.1 (4K@60Hz)

* Graphics specifications may vary between CPU types.

Expansion Slots

AMD A520 Chipset

2 x PCIe 3.0 x1 slots

Storage

Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

AMD A520 Chipset

4 x SATA 6Gb/s ports

Support RAID 0, 1, 10

Ethernet

1 x Realtek 1Gb Ethernet
TUF LANGuard

USB

Rear USB:Total 6 ports

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 6 ports

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

- Supports : Jack detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback"

Audio Features

- Audio Shielding

- Premium Japanese audio capacitors

- Dedicated audio PCB layers

*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x BIOS FlashBack™ button

1 x DisplayPort

1 x HDMI port

1 x D-Sub

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

Intrernal I/O Connectors

Fan and cooling related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 header

2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

Special Features

ASUS TUF PROTECTION

- DIGI+ VRM

- ESD Guards

- TUF LANGuard

- Overvoltage Protection

- SafeSlot Core+

- ASUS Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-Slot

ASUS Thermal Solution

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

AURA Sync

- AURA RGB headers

- Addressable Gen 2 RGB headers

Software Features

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

Fan Xpert 2+

- EZ update

- PC Cleaner

- System Information

TUF GAMING CPU-Z

AI Charger

ASUS Turbo LAN

DAEMON Tools

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 SSD screw package

1 x TUF Gaming sticker

Installation Media

1 x Support DVD

Documentation

1 x TUF Certification card

1 x User manual

Operating System

Windows® 10 64-bit

Form Factor

microATX
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
