Монитор Asus ProArt PA32UCX-PK, 32" (81.28 cm) IPS панел, 4K/UHD, 5ms(GTG), 100000000:11, 1200 cd/m2, DisplayPort, HDMI, USB Hub, Thunderbolt 3

Asus ProArt PA32UCX-PK




Master Collaborative HDR Workflows

ASUS ProArt PA32UCX-PK is a 32-inch 4K HDR monitor designed for discerning content creators, including videographers, cinematographers and colorists. When multiple content creators work together on the same screen, it is necessary that everyone sees the same color and contrast level. With new Off-Axis Contrast Optimization (OCO) technology that reduces halo effects when viewing the screen from a wide angle, ProArt PA32UCX-PK features ensures on-screen content is displayed accurately to all viewers. ProArt PA32UCX-PK features a peak brightness of 1,200 nits and mini-LED backlighting, enabling 1,152 zones of local dimming control and support for multiple HDR formats, including Dolby Vision™, HLG and HDR-10. With true 10-bit color and quantum dot technology, support for the DCI-P3, Rec. 709, Rec. 2020 and Adobe RGB color spaces, together with a rich selection of connectivity, ProArt PA32UCX-PK delivers an exceptional image that takes the viewing experience to the next level.

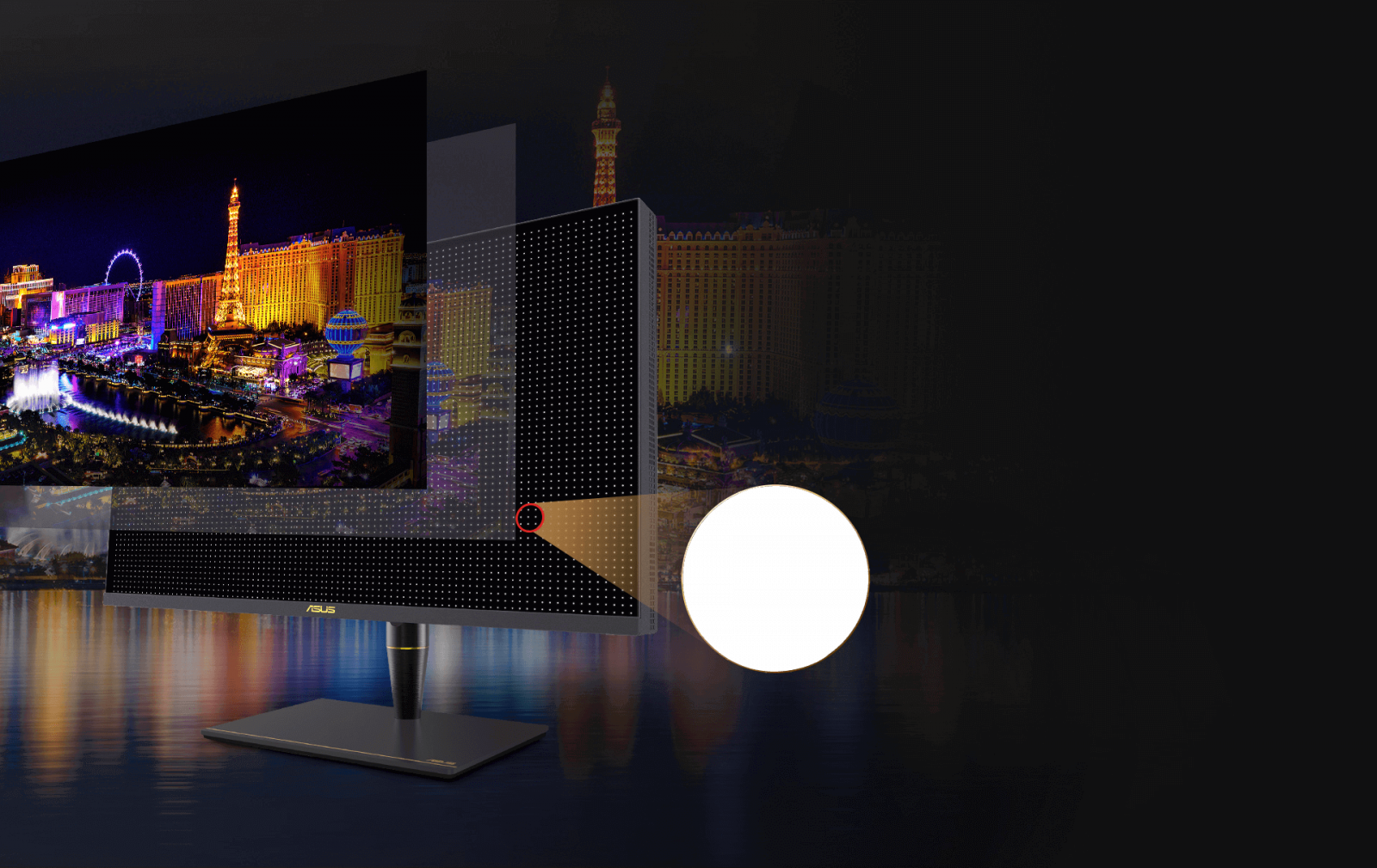

32-inch 4K Monitor with Mini LED Backlight

ASUS ProArt PA32UCX-PK 4K monitor incorporates the leading technology of mini LED backlight, which is packed in physically half smaller LEDs than the conventional in more densely to increases the granularity of brightness control. ProArt PA32UCX-PK offers individual backlight control of a whopping 1,152 zones with higher luminance and deeper darkness to deliver the best contrast and accurate reproduction of HDR contents.

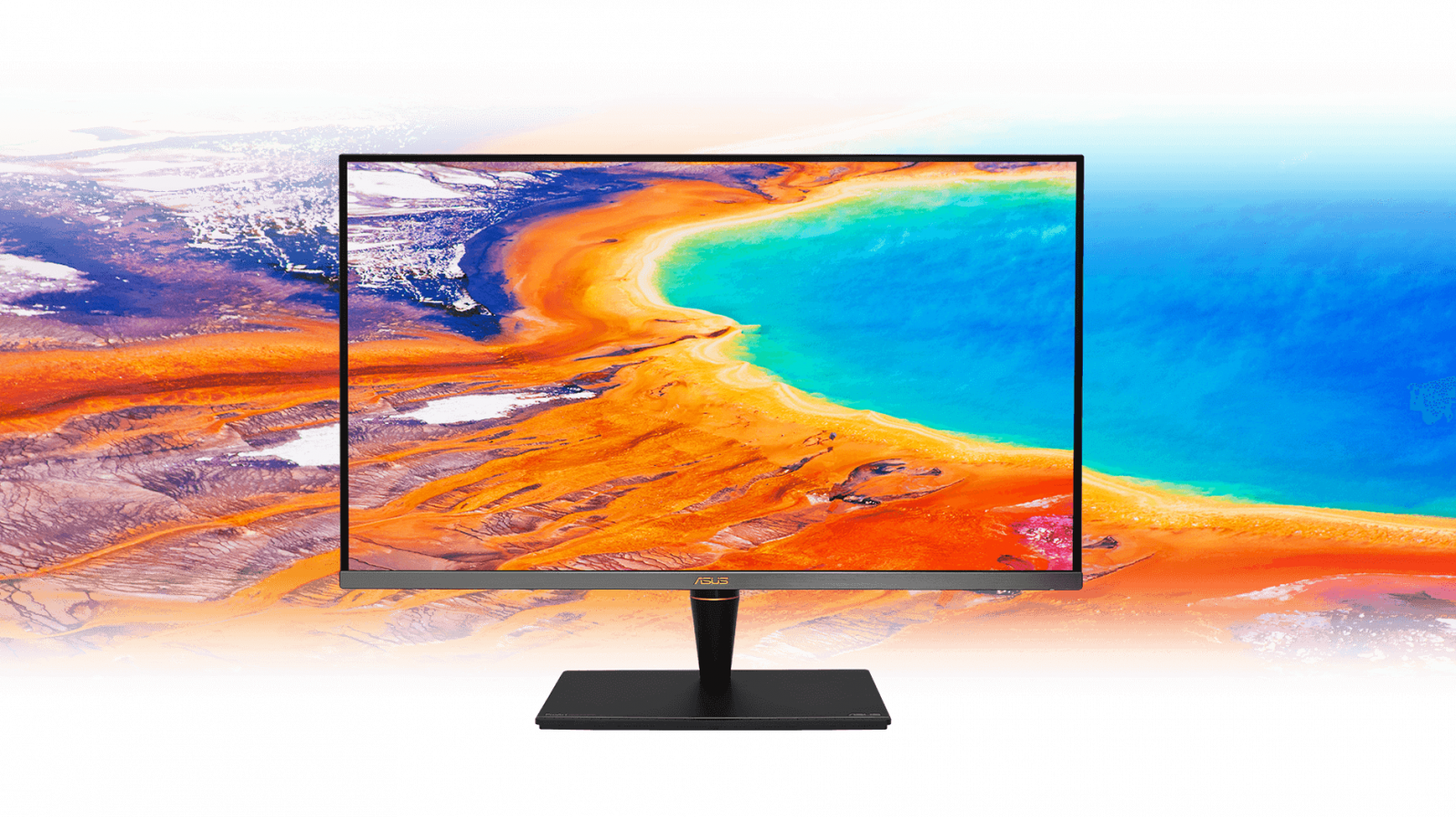

ASUS Smart HDR Technology

ASUS ProArt PA32UCX-PK features ASUS Smart HDR Technology, which supports multiple HDR (high-dynamic-range) formats and multiple PQ curves to suit content creators' specific requirements. Dolby Vision HDR transforms your viewing experience with ultra vivid image — incredible brightness, contrast, and color to expand content creators' storytelling possibilities . It achieves this astonishing image quality through cinema-inspired HDR technology that can deliver billions of colors. HDR-10 support ensures compatibility with existing streaming video services and a growing list of HDR-enabled games, including PQ hard clip curve, PQ Optimized and PQ Basic, to cover all content creators' needs. The PA32UCX-PK HLG (hybrid log gamma) preset allows users to both immerse in, as well as create material for broadcast and satellite TV platforms such as the BBC iPlayer, Japan NHK TV, and DirecTV.






Transform Your Viewing Experience

True 10-bit IPS with 1,200 nits peak brightness, supporting Quantum Dot technology provides an entire spectrum of colors to play with. PA32UCX-PK support 99% DCI-P3, 99.5% Adobe RGB, 100% sRGB, 100% Rec. 709 and 89% Rec.2020 color spaces for video editing and post-production.









Display
Panel Size (inch) : 32
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 708.48 x 398.52 mm
Display Surface : Non-Glare
Backlight Type : Mini-LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.185mm
Resolution : 3840x2160
Color Space (sRGB) : 100%
Color Space (Adobe RGB) : 99.5%
Color Space (Rec.2020) : 89%
Brightness (HDR, Peak) : 1,200 cd/㎡
Brightness (Typ.) : 600cd/㎡
Contrast Ratio (HDR, Max) : 1,000,000:1
Contrast Ratio (Typ.) : 20,000:1
ASUS Smart Contrast Ratio (ASCR) : 100000000:1
Display Colors : 1073.7M (10 bit)
Response Time : 5ms(GTG)
Refresh Rate (Max) : 60Hz
HDR (High Dynamic Range) Support : HDR10
HDR (High Dynamic Range) Support : HLG
HDR (High Dynamic Range) Support : Dolby Vision
Flicker-free : Yes
LCD ZBD Warranty : Yes(3 yr)

Video Feature
Trace Free Technology : Yes
ProArt Preset : Standard
ProArt Preset : sRGB
ProArt Preset : Adobe RGB
ProArt Preset : DCI-P3
ProArt Preset : Rec. 2020
ProArt Preset : DICOM
ProArt Preset : Rec. 709
ProArt Preset : HDR_PQ DCI
ProArt Preset : HDR_PQ Rec2020
ProArt Preset : HDR_HLG
ProArt Preset : Dolby Vision
ProArt Preset : User mode1
ProArt Preset : User mode2
Color Temp. Selection : Yes(5 modes)
Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
Gamma adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Accuracy : △E< 1
ASUS ProArt Hardware Calibration : Yes
ProArt Palette : Yes
QuickFit : Yes
PIP / PBP Technology : Yes
HDCP : Yes
VRR Technology : Adaptive-Sync
Motion Sync : Yes
HDR Preview : Yes
Low Blue Light : Yes
Multiple HDR Mode : Yes

Audio Feature
Speaker : Yes(3Wx2)

I/O Ports
Thunderbolt 3 x 2
DisplayPort 1.2 x 1
HDMI(v2.0) x 3
USB Hub : Yes(4 ports USB 3.0)
Earphone Jack : Yes
USB-C Power Delivery : 65W

Signal Frequency
Digital Signal Frequency : DisplayPort, Thunderbolt™ 3: 142~142 KHz (H) / 40~60 Hz (V)
HDMI: 109~142 KHz (H) / 29~65 Hz (V)

Power Consumption
Power Consumption : 60W
Power Saving Mode : <0.5W
Power Off Mode : <0.5W
Voltage : 100-240V, 50/60Hz

Mechanical Design
Tilt : Yes (+20° ~ -5°)
Swivel : Yes (+90° ~ -90°)
Pivot : Yes (+90° ~ -90°)
Height Adjustment : 0~130mm
Ambient Light Sensor : Yes
VESA Wall Mounting : 100x100mm
Kensington Lock : Yes

Dimensions (Esti.)
Phys. Dimension with Stand (W x H x D) : 727 x (470~600) x 240 mm
Phys. Dimension without Stand (W x H x D) : 727 x 426 x 93 mm
Box Dimension (W x H x D) : 923 x 525 x 386 mm

Weight (Esti.)
Net Weight with Stand : 14 Kg
Net Weight with Stand : 18.3 Kg
Net Weight without Stand : 11 Kg
Gross Weight : 19.1 Kg
Gross Weight : 25.2 Kg
