Asus Prime B760M-A D4-CSM 90MB1D00-M1EAYC
Икона в кампания
Asus Prime B760M-A D4-CSM 90MB1D00-M1EAYCAsus Prime B760M-A D4-CSM 90MB1D00-M1EAYCAsus Prime B760M-A D4-CSM 90MB1D00-M1EAYCAsus Prime B760M-A D4-CSM 90MB1D00-M1EAYC

Дънна платка Asus Prime B760M-A D4-CSM, B760, LGA1700, DDR4, PCIe 4.0 (HDMI&DP), 2x M2, 4x SATA 6Gb/s, 2x USB 3.2 Gen 2 Type-A, 2.5GbE LAN, Micro ATX

id 265771 Код: MBIASUS90MB1D00M1EAYC
  • Модел: Prime B760M-A D4-CSM
  • Марка: Asus
  • Код на продукта: 90MB1D00-M1EAYC
  • Поддържана памет: DDR4
  • RAID: Да
  • Безжични мрежи: Не
  • Bluetooth: Не
  • Видео слот: PCI-E
  • Multi-Graphics технология: Няма
  • Гаранция: 36 месеца
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / Въпроси

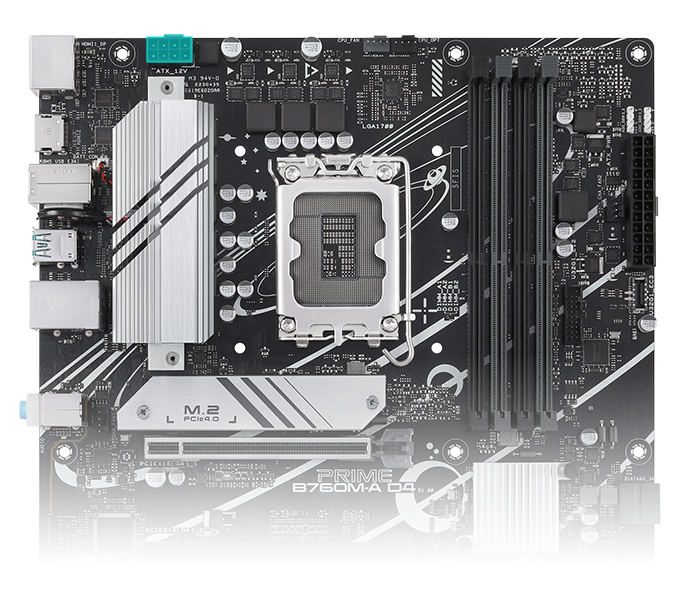

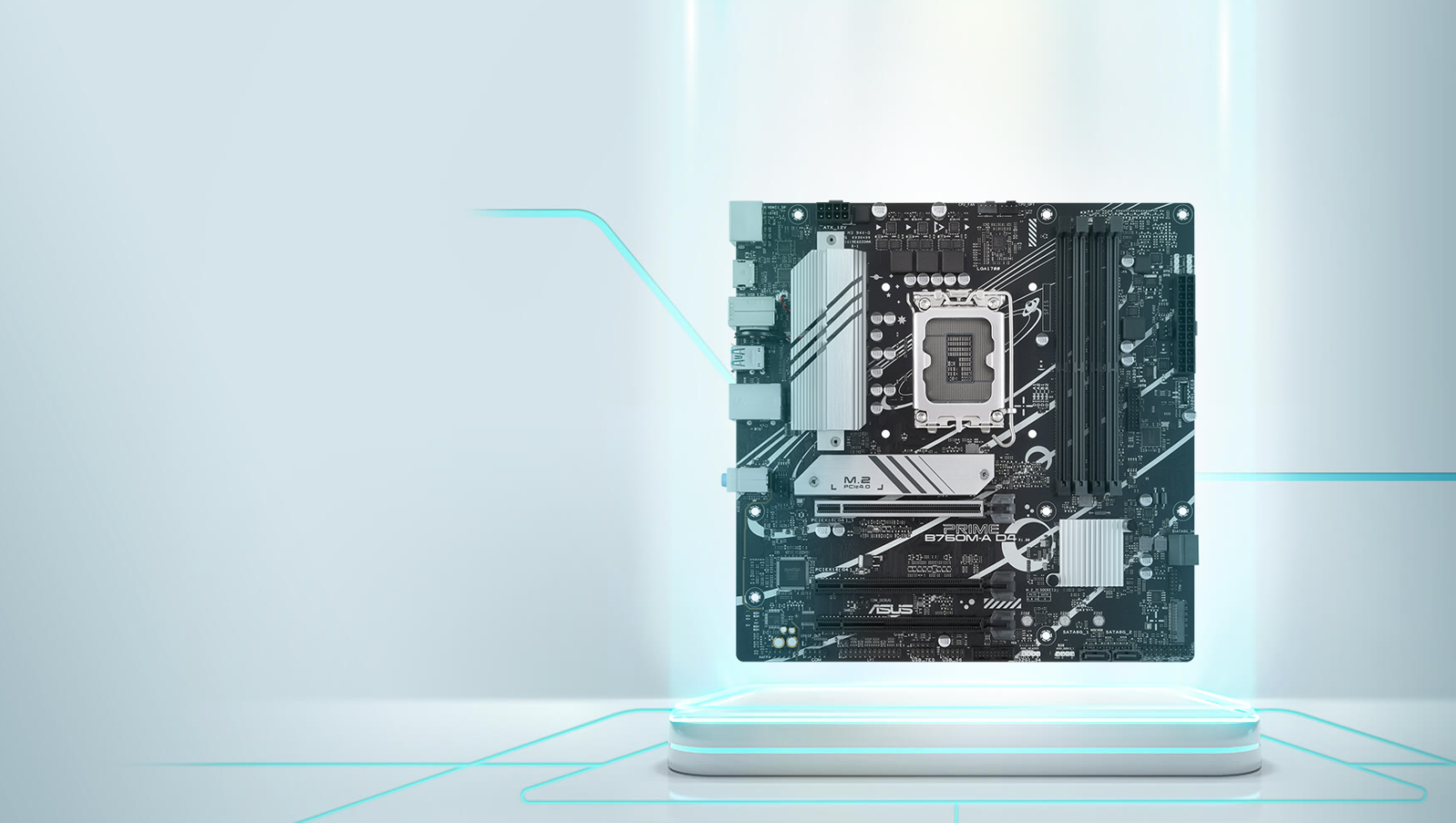

    Asus PRIME B760M-A D4-CSM



    ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A D4-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

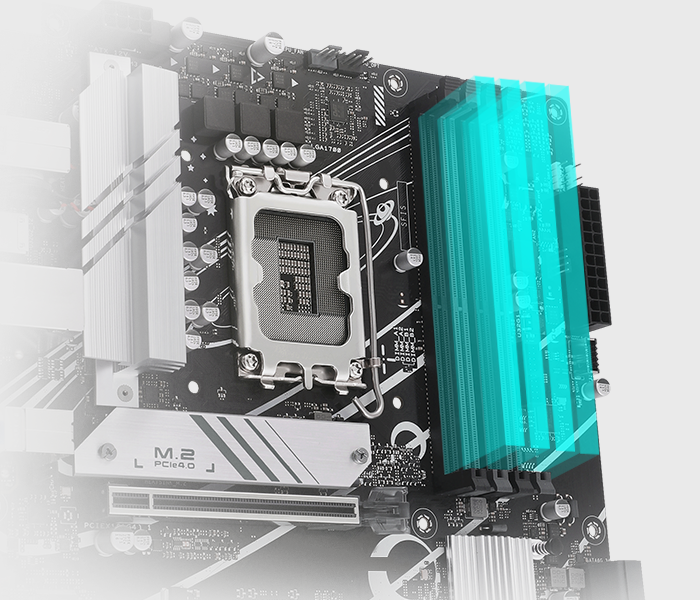

    DDR4 Support



    Improvements to trace routing design provide the latest Intel® processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

    Storage

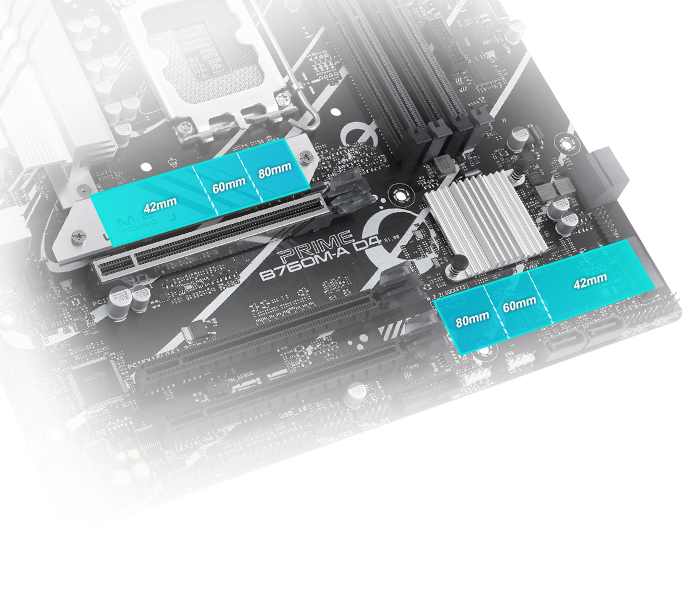

    Two M.2 Slots (up to 64 Gbps)


    The PRIME B760 motherboard offers a total of two M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.

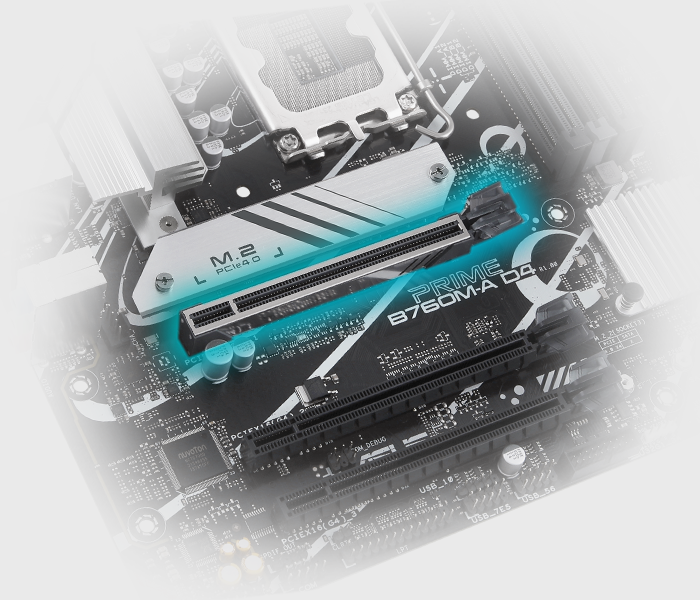

    PCIe 4.0 Slot



    The PRIME B760 motherboard is designed specifically for 13th and 12th Gen Intel® CPUs and offer PCIe 4.0 connectivity for the latest GPUs.

    ProCool Connector



    Proprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.



    CPU

    Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
    Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0


    Chipset

    Intel B760 Chipset



    Memory

    4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel Extreme Memory Profile (XMP)
    OptiMem II


    Graphics

    1 x DisplayPort*
    2 x HDMI ports**
    * Supports max. 4K@60Hz as specified in DisplayPort 1.4.
    ** Supports 4K@60Hz as specified in HDMI 2.1.



    Expansion Slots

    Intel 13th & 12th Gen Processors
    1 x PCIe 4.0 x16 slot
    Intel B760 Chipset
    1 x PCIe 4.0 x16 slot (supports x4 mode)
    1 x PCIe 4.0 x16 slot (supports x1 mode)


    Storage

    Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports
    Intel 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    Intel B760 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.



    Ethernet

    1 x Realtek 2.5Gb Ethernet



    USB

    Rear USB (Total 6 ports)
    2 x USB 3.2 Gen 2 ports (2 x Type-A )
    4 x USB 2.0 ports (4 x Type-A)


    Front USB (Total 10 ports)
    2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    1 x USB 2.0 header supports 1 additional USB 2.0 port



    Audio

    Realtek 7.1 Surround Sound High Definition Audio CODEC
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback


    Audio Features
    - Audio Shielding
    - Premium audio capacitors
    - Dedicated audio PCB layers


    Back Panel I/O Ports

    2 x USB 3.2 Gen 2 ports (2 x Type-A )
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort
    2 x HDMI ports
    1 x Realtek 2.5Gb Ethernet port
    3 x Audio jacks
    1 x PS/2 Keyboard/Mouse combo port



    Internal I/O Connectors

    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    2 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    1 x USB 2.0 header supports 1 additional USB 2.0 port
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x LPT header
    1 x S/PDIF Out header
    1 x SPI TPM header (14-1pin)
    1 x 20-3 pin System Panel header with Chassis intrude function



    BIOS

    128 Mb Flash ROM, UEFI AMI BIOS



    Manageability

    WOL by PME, PXE



    Operating System

    Windows 11, Windows 10 64-bit



    Form Factor

    mATX Form Factor
    24.4 cm x 24.4 cm )





    Виж още Дънни платки за Intel процесори Asus
    Виж всички Дънни платки за Intel процесори в категорията
    Технически характеристики
    Процесор сокет:  LGA 1700
    Чипсет:  B760
    Поддържана памет:  DDR4
    Брой слотове за RAM памет:  4
    Storage интерфейси:  SATA 6Gbit/s, M.2
    RAID:  Да
    Безжични мрежи:  Не
    Bluetooth:  Не
    Видео слот:  PCI-E
    Multi-Graphics технология:  Няма
    Видео изход:  DP HDMI
    Форм фактор:  Micro ATX
