Дънна платка ASUS J1900I-C, FCBGA1170, DDR3 1333, Lan1000, 2xSATA 3Gb/s, 1xUSB 3.0, mini ITX

ASUS J1900I-C

CPU
Intel® Celeron® quad-core J1900 Processors

Memory
2 x SO-DIMM, Max. 8GB, DDR3L 1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/RGB ports
- Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
- Supports RGB with max. resolution 2560 x 1600 @ 60 Hz
Maximum shared memory of 512 MB
Supports DirectX 11

Expansion Slots
1 x PCIe 2.0 x1
1 x mini-PCIe

Storage
Built-in Controller :
2 x SATA 3Gb/s port(s), dark brown
Supports Intel® Smart Connect Technology

LAN
Realtek® RTL8111G, 1 x Gigabit LAN Controller(s)

Audio
Realtek® ALC887-VD 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking

USB Ports
Built-in Controller :
1 x USB 3.0 port(s) (1 at back panel, blue)
Built-in Controller :
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)

Operating System Support
Windows® 8.1 , 32bit/64bit
Windows® 8 , 32bit/64bit
Windows® 7 , 32bit/64bit
Please update your BIOS and drivers to the latest version to support Windows 7

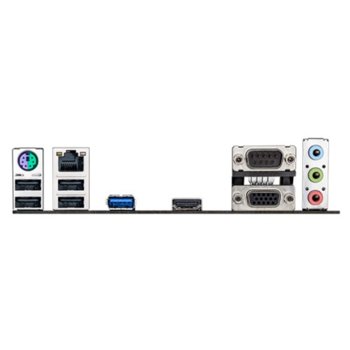

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.0
4 x USB 2.0
1 x COM port(s)
3 x Audio jack(s)

Internal I/O Ports
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x TPM header
1 x LPT header
1 x COM port(s) connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Buzzer

Accessories
User's manual
I/O Shield
2 x SATA 3Gb/s cable(s)

BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

Support Disc
Drivers
ASUS utilities
ASUS Update
Anti-virus software (OEM version)

Form Factor
mini ITX Form Factor
6.7 inch x 6.7 inch ( 17.0 cm x 17.0 cm )
