Дънна платка ASRock X670E Taichi, X670E, AM5, DDR5, PCI-E 5.0 (HDMI)(CF), 8x SATA 6Gb/s, 4x M.2, 2x USB 4 Type-C, 1x USB 3.2 Gen2x2 Type-C, Wi-Fi 6E, Bluetooth, 2.5G LAN, E-ATX

ASRock X670E Taichi

• Supports AMD Ryzen™ 8000 and 7000 Series Processors
• 24+2+1 Phase Power Design, SPS for VCore+GT
• 4 x DDR5 DIMMs, supports up to 7800+(OC)
• 2 PCIe 5.0 x16
• Graphics Output Options: 2 USB4 Type-C, 1 HDMI
• Realtek ALC4082 5.1 CH HD Audio Codec,
  ESS SABRE9218 DAC, WIMA Audio Caps
• 1 Blazing M.2 (PCIe Gen5x4),
  1 Hyper M.2 (PCIe Gen4x4 & SATA3),
  2 Hyper M.2 (PCIe Gen4x4),
  8 SATA3
• 2 USB4 Type-C (Rear),
  1 USB 3.2 Gen2x2 Type-C (Front),
  5 USB 3.2 Gen2 Type-A (Rear),
  7 USB 3.2 Gen1 (3 Rear, 4 Front)
• Killer 2.5G LAN
• Killer 802.11ax Wi-Fi 6E + Bluetooth 5.3

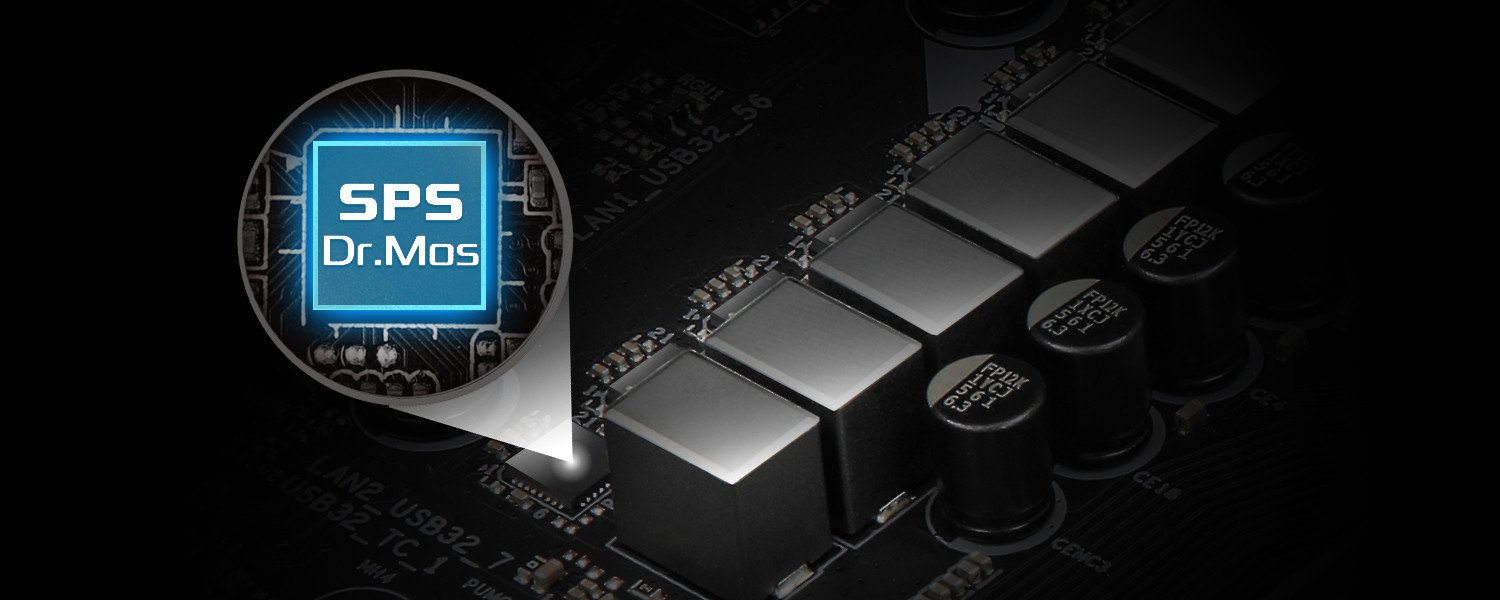

SPS (Smart Power Stage)

Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

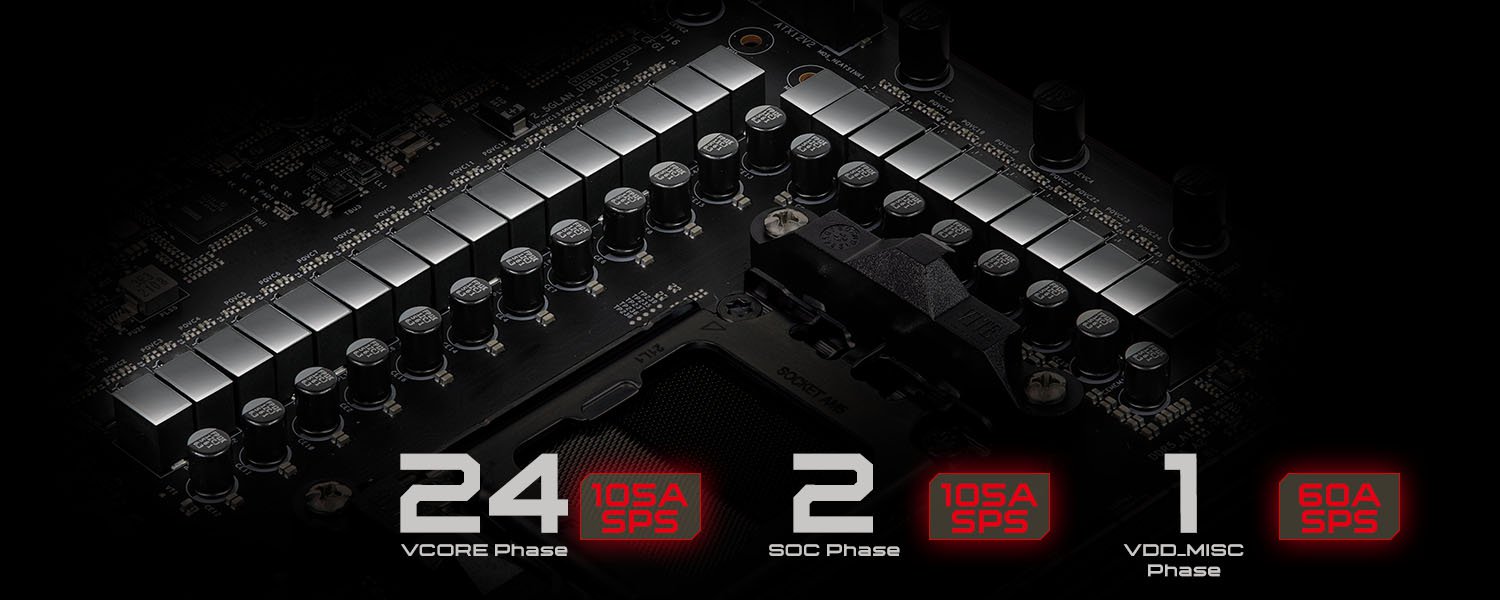

24+2+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.



Server Grade Ultra Low Loss PCB

The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.





DDR5 EXPO & XMP Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. All X670E motherboards are built with 8-Layer and premium low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7800MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

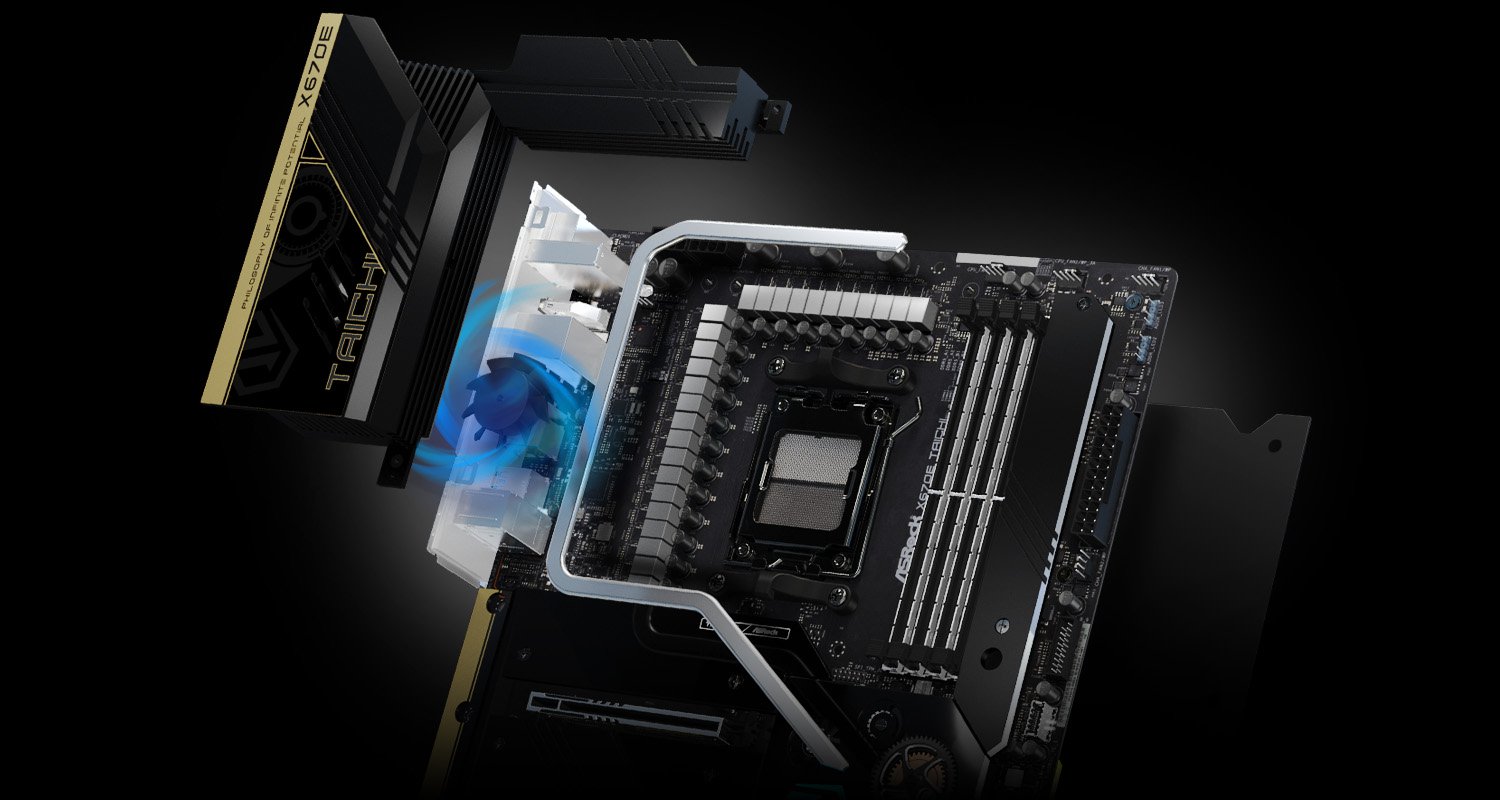

Composite VRM Heatsink

It is equipped with a composite VRM heatsink active cooling fans, XXL aluminum heatsinks and heat pipe for maximum heat dissipation.





Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

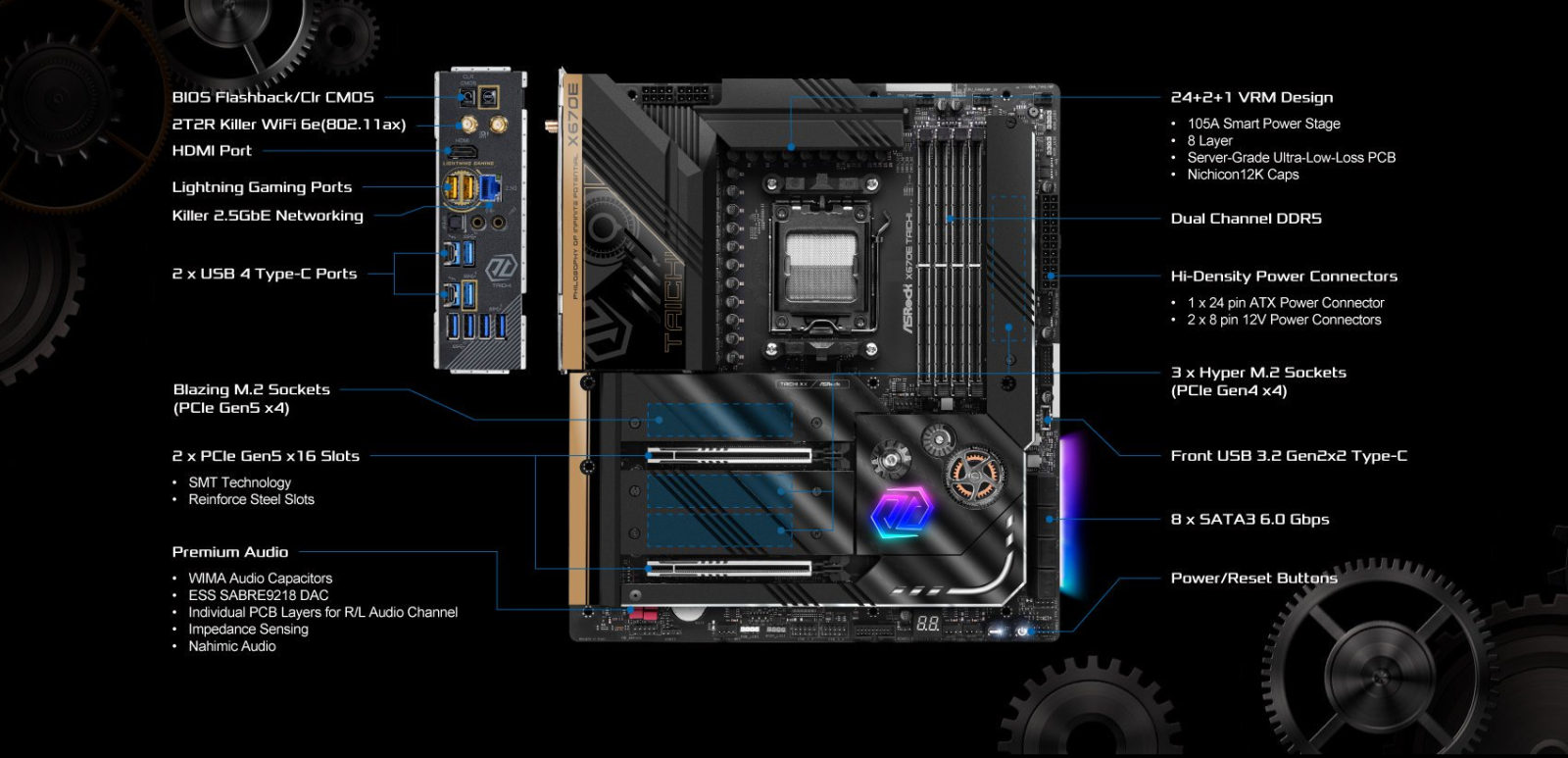

Specifications:

• Unique Feature

  Superb Productivity
  - PCIe Gen5 (Graphics, M.2)
  - Blazing M.2 Gen5 Fan Heatsink
  - Dual Channel DDR5
  - USB4 Type-C Ports (40 Gb/s)
  Rock-Solid Durability
  - Ultra Low-Loss PCB
  - 24+2+1 Power Phase, 105A SPS with Enlarged Heatsink Armor
  - Flexible Integrated I/O Shield
  - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
  Ultrafast Gaming
  - Killer 2.5G LAN, Killer 802.11ax Wi-Fi 6E Module
  - Killer DoubleShot™ Pro
  - ASRock Lightning Gaming Ports
  EZ Update
  - BIOS Flashback Button
  - ASRock Auto Driver Installer


• CPU

  - Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors
  - Supports ASRock Hyper BCLK Engine

• Chipset

  - AMD X670


• Memory

  - Dual Channel DDR5 Memory Technology
  - 4 x DDR5 DIMM Slots
  - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7800+(OC)*
  - Max. capacity of system memory: 192GB
  - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules



  *Please refer to Memory Support List for more information.

• BIOS

  - 256Mb AMI UEFI Legal BIOS with GUI support

• Graphics

  Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 60Hz*



  *Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 7000 processors with embedded graphics.

• Audio

  - 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
  - WIMA Audio Capacitors (For Front Outputs)
  - ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)
  - Individual PCB Layers for R/L Audio Channel
  - Impedance Sensing on Rear Out port
  - Nahimic Audio

• LAN

  - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  - Killer E3100G
  - Supports Killer LAN Software
  - Supports Killer DoubleShot™ Pro

• Wireless LAN

  - 802.11ax Wi-Fi 6E Module
  - Supports IEEE 802.11a/b/g/n/ac/ax
  - Supports Dual-Band 2x2 160MHz with extended 6GHz band support*
  - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  - Supports Bluetooth 5.3 + High speed class II
  - Supports MU-MIMO
  - Supports Killer LAN Software
  - Supports Killer DoubleShot™ Pro



  *Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
  A 6GHz compatible router is required for 6E functionality.


• Slots

  CPU:
  - 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*
  Chipset:
  - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

  - Supports AMD CrossFire™
  - 15μ Gold Contact in VGA PCIe Slot (PCIE1)



  *Supports NVMe SSD as boot disks

• Storage

  CPU:
  - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
  Chipset:
  - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
  - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 4 x SATA3 6.0 Gb/s Connectors
  ASMedia ASM1061:
  - 4 x SATA3 6.0 Gb/s Connectors**



  *Supports NVMe SSD as boot disks
  Supports ASRock U.2 Kit

  ** If M2_2 is occupied by a SATA-type M.2 device, SATA3_A1 will be disabled.

• USB

  - 2 x USB4 Type-C (Rear)
  - 1 x USB 3.2 Gen2x2 Type-C (Front)
  - 5 x USB 3.2 Gen2 Type-A (Rear)
  - 7 x USB 3.2 Gen1 (3 Rear, 4 Front)
  - 4 x USB 2.0 (Front)



  *All USB ports support ESD Protection

• Connector

  - 1 x Power LED and Speaker Header
  - 1 x RGB LED Header*
  - 3 x Addressable LED Headers**
  - 1 x CPU Fan Connector (4-pin)***
  - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  - 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
  - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
  - 1 x Dr. Debug with LED
  - 1 x Power Button with LED
  - 1 x Reset Button with LED



  *Supports in total up to 12V/3A, 36W LED Strip

  **Support in total up to 5V/3A, 15W LED Strip

  ***CPU_FAN1 supports the fan power up to 1A (12W).

  ****CPU_FAN2/WP_3A supports the fan power up to 3A (36W).

  *****CHA_FAN1~6/WP support the fan power up to 2A (24W).
  CPU_FAN2/WP_3A and CHA_FAN1~6/WP can auto detect if 3-pin or 4-pin fan is in use.


• Rear Panel I/O

  - 2 x Antenna Ports
  - 1 x HDMI Port
  - 1 x Optical SPDIF Out Port
  - 2 x USB4 Type-C Ports (40 Gb/s)*
  - 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (USB32_12 are Lightning Gaming Ports. USB32_3 supports Ultra USB Power.)
  - 3 x USB 3.2 Gen1 Ports
  - 1 x RJ-45 LAN Port
  - 1 x Clear CMOS Button
  - 1 x BIOS Flashback Button
  - 1 x Line Out Jack (Gold Audio Jack)
  - 1 x Microphone Input Jack (Gold Audio Jack)



  *Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging

• Software and UEFI

  Software
  - ASRock Motherboard Utility (A-Tuning)
  - Killer Control Center
  - ASRock Polychrome SYNC
  UEFI
  - ASRock Full HD UEFI
  - ASRock Auto Driver Installer
  - ASRock Instant Flash

• Accessories

  - 1 x User Manual
  - 4 x SATA Data Cables
  - 1 x Wireless Dongle USB Bracket
  - 1 x Blazing M.2 Gen5 Fan Heatsink
  - 1 x ASRock WiFi 2.4/5/6 GHz Antenna
  - 4 x Screws for M.2 Sockets
  - 1 x Standoff for M.2 Socket


• Form Factor

  - EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
  - 8 Layer PCB

• OS

  - Microsoft Windows® 10 64-bit / 11 64-bit
