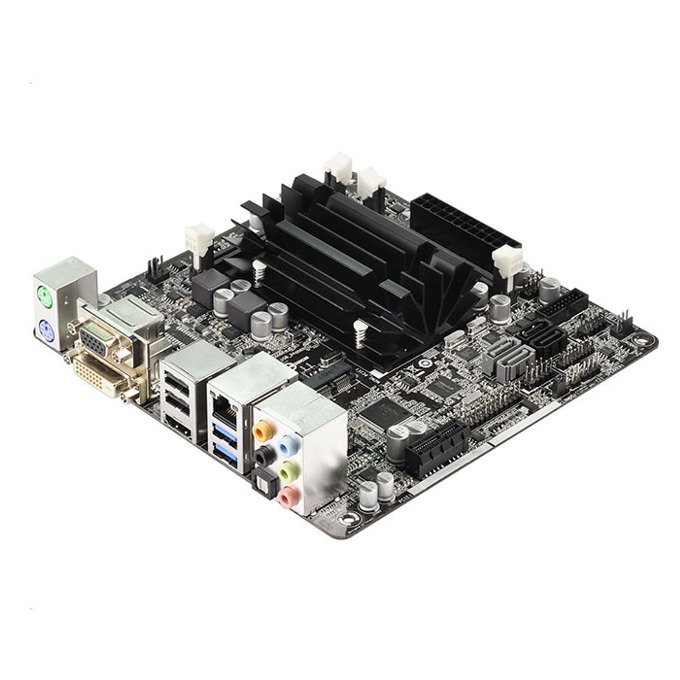

Дънна платка ASRock Q2900-ITX, вграден четири-ядрен Intel Pentium J2900 2.41/2.66 GHz, поддържа So-DiMM DDR3/DDR3L, HDMI & DVI, Lan1000, 2x SATA 6Gb/s, 2x USB3.0, mini-ITX

Q2900-ITX
A compact motherboard with Intel Pentium CPU and 3 graphics outputs!

- Intel® Quad-Core Pentium® Processor J2900
- All Solid Capacitor design
- Supports DDR3 1333 memory, 2 SO-DIMM slots
- 1 PCIe 2.0 x1, 1 mini-PCIe
- Graphics Output Options : D-Sub, DVI-D, HDMI
- Built-in Intel® 7th generation (Gen 7) graphics, DirectX 11.0, Pixel Shader 5.0
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- 2 SATA3, 2 SATA2, 4 USB 3.0 (2 Front, 2 Rear), 4 USB 2.0 (2 Front, 2 Rear)
- 1 x Print Port Header, 1 x COM Port Header
- Supports ASRock Cloud, APP Shop, Full Spike Protection

Unique Feature:
ASRock Full Spike Protection
ASRock Cloud
ASRock APP Shop

CPU
- Intel® Quad-Core Pentium® Processor J2900 (2.41 GHz)

Memory
- Dual Channel DDR3/DDR3L Memory Technology
- 2 x DDR3/DDR3L SO-DIMM Slots
- Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB** If only one SO-DIMM module is installed, please install it into DDR3_A1.
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports Plug and Play
- ACPI 1.1 compliant wake up events
- Supports jumperfree
- SMBIOS 2.3.1 support

Audio, Video and Networking

Graphics
- Intel® 7th generation (Gen 7) graphics
- DirectX 11.0, Pixel Shader 5.0
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D and HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)

LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Supports Wake-On-WAN
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Expansion / Connectivity

Slots
- 1 x PCI Express 2.0 x1 Slot
- 1 x mini-PCI Express Slot

Storage
- 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug

Connector
- 1 x Print Port Header
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (3-pin)
- 1 x Chassis Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.0 Header by ASMedia ASM1074 (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

Rear Panel I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Other Features / Miscellaneous

Software and BIOS

Software
- ASRock A-Tuning
- ASRock USB Key
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Restart to UEFI
UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS

Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), Orbweb.ME Professional (Win 8.1 / 7)

Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 1 x WiFi Module Screw

Hardware Monitor
- CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
- Mini-ITX Form Factor
- All Solid Capacitor design
- High Density Glass Fabric PCB

OS
- Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

Certifications
- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
