Дънна платка ASRock N3150M, вграден четири-ядрен Intel Celeron N3150 1.6/2.08GHz, PCI-Е (HDMI&DVI), поддържа 2x DDR3/DDR3L U-DIMM, Lan1000, 2x SATA 6Gb/s, 2x USB3.0, mATX

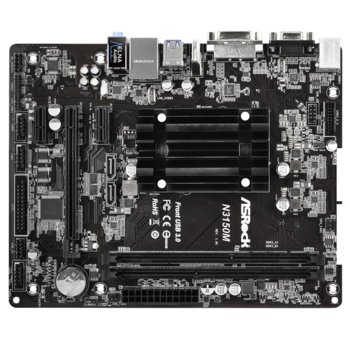

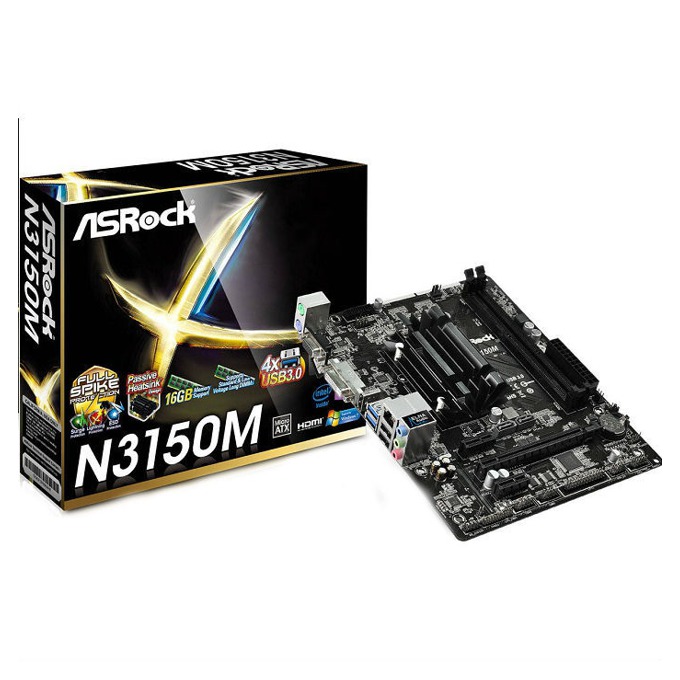

ASROCK N3150M

• CPU
Intel® Dual-Core Processor N3150 (up to 2.16 GHz)

• Memory
Dual Channel DDR3/DDR3L Memory Technology
2 x DDR3/DDR3L DIMM Slots
Supports DDR3/DDR3L 1600/1066 non-ECC, un-buffered memory
Max. capacity of system memory: 16GB

• VGA
Intel® 8th generation (Gen 8) graphics: up to 12 EUs inside
DirectX 11.1, Pixel Shader 5.0
Three graphics output options: D-Sub, DVI-D and HDMI

• Expansion Slots
1 x PCI Express 2.0 x16 Slot (PCIE2 @ x1 mode)
2 x PCI Express 2.0 x1 Slots

• Connectors
1 x Print Port Header
2 x COM Port Headers
1 x TPM Header
1 x Chassis Intrusion Header
1 x CPU Fan Connector (3-pin)
1 x Chassis Fan Connector (3-pin)
1 x 24 pin ATX Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

• Audio
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
Supports Surge Protection (ASRock Full Spike Protection)
ELNA Audio Caps

• LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111GR
Supports Wake-On-WAN
Supports Wake-On-LAN
Supports Lightning/ESD Protection (ASRock Full Spike Protection)
Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
Supports PXE

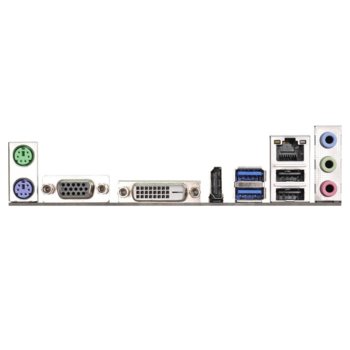

• Rear Panel I/O Ports
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

• BIOS
64Mb AMI UEFI Legal BIOS with GUI support
Supports Plug and Play
ACPI 5.0 Compliant wake up events
Supports jumperfree
SMBIOS 2.7 Support

• Form Factor
Micro ATX
22.6 cm x 17.8 cm

• Package
Box
