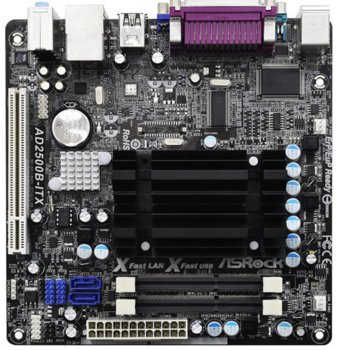

Дънна платка ASRock AD2550B, Intel D 2550B, двуядрен Intel D2500, DDR3, PCI-E(VGA), 2x SATA 6.0Gb/s, 6x USB 2.0, Mini-ITX, Bulk

ASROCK MINI ITX INTEL D 2550B
AD2550B-ITX-BULK

Процесор - Intel Dual-Core Atom Processor D2500 (1.86 GHz)
Чипсет - Southbridge: Intel NM10 Express
Памет - 2 x DDR3 SO-DIMM slots
- Supports DDR3 1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 4GB*

*Due to the chipset limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows OS.
BIOS - 16Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
Аудио, Видео и Мрежа
Графика - Intel PowerVR SGX545
- DirectX 9.0, Pixel Shader 3.0
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Аудио - 5.1 CH HD Audio (VIA VT1705 Audio Codec)
LAN - Realtek PCIE x1 LAN RTL8105E
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
- Supports PXE
Разширение / Свързване
Слотове - 1 x PCI slot
Конектор - 2 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
- 1 x IR header
- 1 x CIR header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

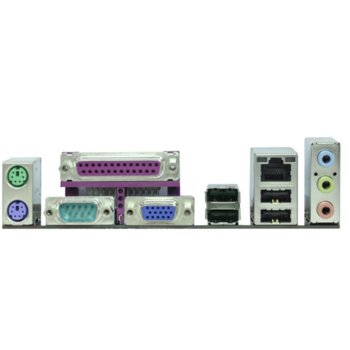

Заден панел с входове и изходи I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Parallel Port (ECP/EPP Support)
- 1 x Serial Port: COM1
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Други функции / Разни
Уникални функции - ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
CD с поддръжка - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial; ASRock MAGIX Multimedia Suite - OEM)
Аксесоари - Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
Хардуерен монитор - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU/Chassis Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Форм фактор - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- Solid Capacitor for CPU Power
OC - Microsoft Windows 7 32-bit compliant

*Due to lack of Intel 64-bit VGA driver support, this motherboard does not support 64-bit OS.
