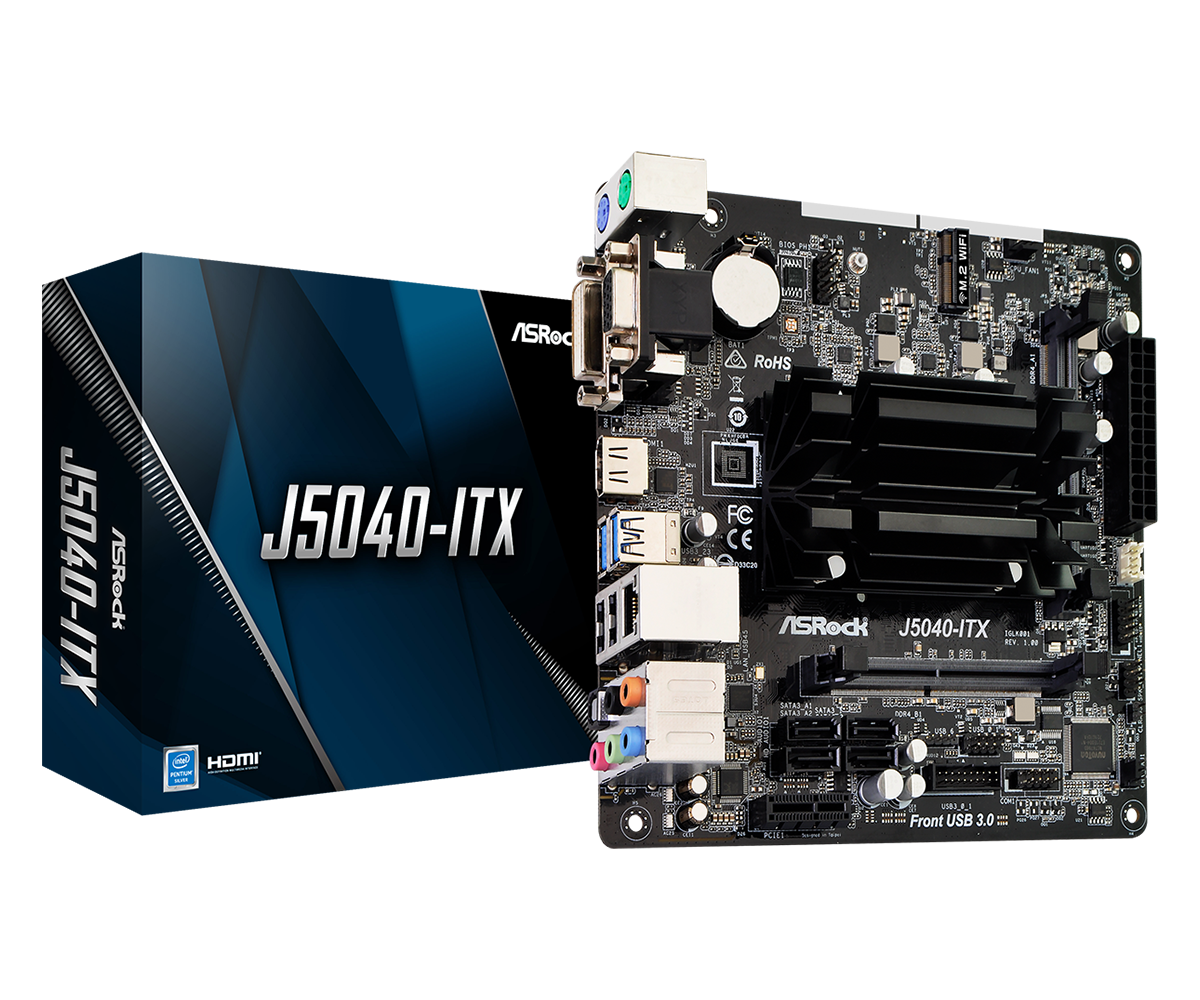

Дънна платка ASRock J5040-ITX, вграден четириядрен Gemini Lake Refresh Intel Pentium Silver J5040 2.0/3.2 GHz, PCI-E (HDMI/DVI/VGA), DDR4, LAN, 4x SATA 6Gb/s, 2x USB 3.2 Gen 1, Mini ITX

id 199118 Код: MBCPUASROCKJ5040ITX
  • Модел: J5040-ITX
  • Марка: ASRock
  • Код на продукта: J5040-ITX
  • Процесор сокет: 1090
  • Гаранция: 24 месеца
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / ВъпросиДокументация

    J5040-ITX

    • ASRock Super Alloy
    • Intel® Quad-Core Pentium® Processor J5040 (up to 3.2 GHz)
    • Supports DDR4 2133/2400 SO-DIMM
    • 1 PCIe 2.0 x1, 1 M.2 (Key E)
    • Graphics Output Options: D-Sub, HDMI, DVI-D
    • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
    • 4 SATA3
    • 4 USB 3.2 Gen1 (2 Front, 2 Rear)
    • Supports Full Spike Protection, ASRock Live Update & APP Shop









    Specifications:

    • Unique Feature
      ASRock Super Alloy
      - Sapphire Black PCB
      - High Density Glass Fabric PCB
      ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
      ASRock Live Update & APP Shop
    • CPU
      - Intel® Quad-Core Pentium® Silver Processor J5040 (up to 3.2 GHz)
    • Memory
      - Dual Channel DDR4 Memory Technology
      - 2 x DDR4 SO-DIMM Slots*
      - Supports DDR4 2400 / 2133 non-ECC, un-buffered memory
      - Max. capacity of system memory: 8GB**

      *2GB DRAM per module is not supported.

      **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
    • BIOS
      - 128Mb AMI UEFI Legal BIOS with GUI support
      - Supports Plug and Play
      - ACPI 5.0 compliant wake up events
      - Supports jumperfree
      - SMBIOS 3.0 support
    • Graphics
      - Integrated Intel® UHD Graphics 605: 18 EUs inside (Up to 800MHz)
      - DX12, OpenGL 4.4, OGL ES 3.1, OpenCL 1.2
      - HW Acceleration Decode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit, VP9 10 bit
      - HW Acceleration Encode: HEVC (H.265) 8 bit, HEVC (H.265)10 bit, H.264 @ Lvl5.2 (AVC), JPEG/MJPEG, VP8, VP9 8bit
      - Three graphics output options: D-Sub, DVI-D and HDMI
      - Supports Triple Monitor
      - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
      - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
      - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
      - Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
      - Supports HDCP 2.2 with DVI-D and HDMI Ports
      - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
    • Audio
      - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
      - Premium Blu-ray Audio support
      - Supports Surge Protection
      - ELNA Audio Caps
    • LAN
      - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
      - Realtek RTL8111H
      - Supports Wake-On-LAN
      - Supports Lightning/ESD Protection
      - Supports Energy Efficient Ethernet 802.3az
      - Supports PXE
    • Slots
      - 1 x PCI Express 2.0 x1 Slot
      - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT)
    • Storage
      - 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
      - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
    • Connector
      - 1 x COM Port Header
      - 1 x Chassis Intrusion and Speaker Header
      - 1 x CPU Fan Connector (3-pin)
      - 1 x Chassis Fan Connector (3-pin)
      - 1 x 24 pin ATX Power Connector
      - 1 x Front Panel Audio Connector
      - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
      - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)*

      *USB3_0_1 is shared with USB_0_1.
    • Rear Panel I/O
      - 1 x PS/2 Mouse Port
      - 1 x PS/2 Keyboard Port
      - 1 x D-Sub Port
      - 1 x DVI-D Port
      - 1 x HDMI Port
      - 1 x Optical SPDIF Out Port
      - 2 x USB 2.0 Ports (Supports ESD Protection)
      - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
      - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
      - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
    • Software and UEFI
      Software
      - ASRock XFast LAN
      UEFI
      - ASRock Instant Flash
      - ASRock Internet Flash

      *These utilities can be downloaded from ASRock Live Update & APP Shop.
    • Support CD
      - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
    • Accessories
      - Quick Installation Guide, Support CD, I/O Shield
      - 2 x SATA Data Cables
      - 1 x Screw for M.2 Socket
    • Hardware Monitor
      - CPU/Chassis temperature sensing
      - CPU/Chassis Fan Tachometer
      - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
      - CPU/Chassis Fan multi-speed control
      - CASE OPEN detection
      - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
    • Form Factor
      - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
      - Solid Capacitor design
    • OS
      - Microsoft® Windows® 10 64-bit
    • Certifications
      - FCC, CE
      - ErP/EuP ready (ErP/EuP ready power supply is required)
