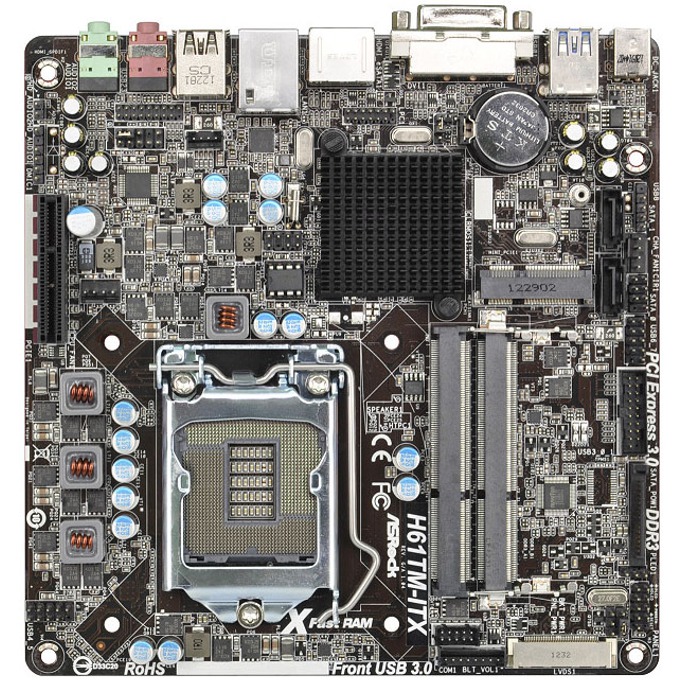

ASRock H61TM-ITX
- Solid Capacitors for CPU power
- Supports Dual Channel DDR3 1600 memory, 2 x SO-DIMM slots
- 1 x PCIe 3.0 x4 slot, 1 x mini-PCIe slot
- Supports Intel® HD Graphics with Built-in Visuals
- Graphics Output Options: HDMI, DVI-I and LVDS
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- 4 x USB 3.0 ports (2 front, 2 rear), 2 x SATA2 connectors, 1 x eSATA connector
- 1 x Digital MIC header
- Supports ASRock XFast 555, Fast Boot, Restart to UEFI, OMG, Internet Flash
- Supports Intel® Smart Connect Technology, Intel® Rapid Start Technology
- Free Bundle : CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar
CPU
- Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 Package
- Supports Intel® Turbo Boost 2.0 Technology
- Supports Hyper-Threading Technology
Chipset
- Intel® H61
- Supports Intel® Rapid Start Technology and Smart Connect Technology
*Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.
Memory
- Dual Channel DDR3 memory technology
- 2 x DDR3 SO-DIMM slots
- Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 32Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment
Audio, Video and Networking
Graphics
- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video 2.0, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 2500/4000 with Intel® Ivy Bridge CPU
- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX) with Intel® Sandy Bridge CPU
- Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge CPU
- Max. shared memory 1760MB with Intel® Ivy Bridge CPU. Max. shared memory 1759MB with Intel® Sandy Bridge CPU
- Multi VGA Output options: HDMI, DVI-I and LVDS
- Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz
- Supports DVI-I with max. resolution up to 1920x1200 @ 75Hz
- Supports LVDS with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI
- Supports HDCP with HDMI
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with HDMI
*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit.
***Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray audio support
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- RTL8111E-VL
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Expansion / Connectivity
Slots
- 1 x PCI Express 3.0 x4 slot (PCIE1: x4 mode)
- 1 x mini-PCI Express slot
*PCIe Gen3 is supported on 3rd Generation of Intel® Core™ i5 and Core™ i7 CPUs.
USB
- 2 x Rear USB 3.0 ports by Etron EJ188, support USB 1.1/2.0/3.0 up to 5Gb/s
- 1 x Front USB 3.0 header by Etron EJ188 (supports 2 USB 3.0 ports), supports USB 1.1/2.0/3.0 up to 5Gb/s
Connector
- 2 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug
- 1 x CIR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x LVDS connector
- 1 x LPC Debug header
- 1 x Home Theater PC header
- 1 x CPU Fan connector (1 x 4-pin)
- 1 x Chassis Fan connector (1 x 4-pin)
- 1 x Front panel audio connector
- 1 x Analog Surround Audio header
- 1 x Digital MIC header
- 1 x 3W Audio AMP Output Wafer header
- 1 x SATA Power connector
- 3 x USB 2.0 headers (support 5 USB 2.0 ports)
- 1 x USB 3.0 header (supports 2 USB 3.0 ports)

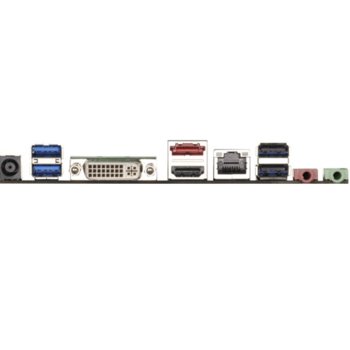

Rear Panel I/O
I/O Panel
- 1 x DC Jack
- 1 x DVI-I Port
- 1 x HDMI Port
- 1 x eSATA Connector
- 2 x Ready-to-Use USB 3.0 Ports
- 2 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature
- ASRock Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock Fast Boot
- ASRock Restart to UEFI
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Good Night LED
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar
Accessories
- Quick Installation Guide, Support CD, I/O Shields
- 2 x SATA Data Cables
- 1 x SATA 1 to 2 Power Cable
Hardware Monitor
- CPU/Chassis Temperature Sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- Thin Mini-ITX Form Factor (Compatible with Mini-ITX)
- Solid Capacitors for CPU power
OS
- Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Certifications - FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
