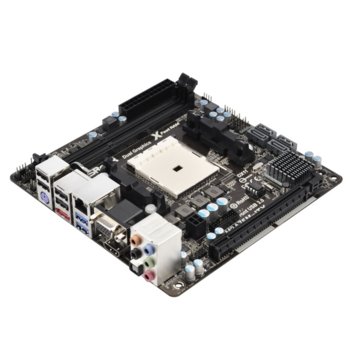

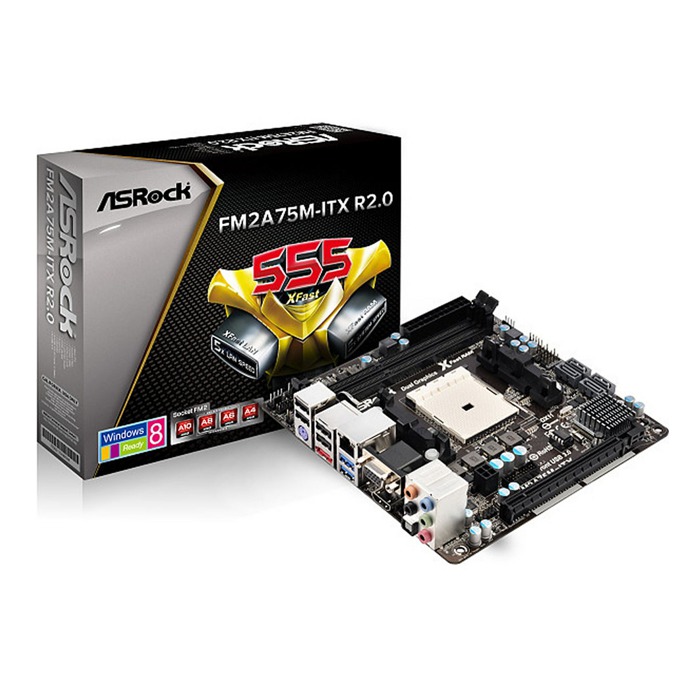

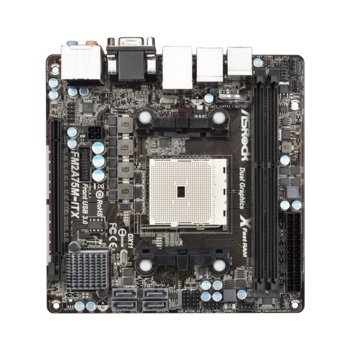

Дънна платка ASRock FM2A75M-ITX R2.0, AMD A75, FM2 (до 100W), DDR3, PCI-E (HDMI), SB7.1, Lan1000, 4x SATA 6Gb/s RAID 0,1,10, eSATA 6Gb/s, 2x USB3.0, miniITX

FM2A75M-ITX R2.0
Behold the Massive Computing Power of the Mini Sized Motherboard

- Support for Socket FM2 100W processors
- Supports Dual Channel DDR3 1866
- Supports Intel® XMP 1.3/1.2 and AMD Memory Profile
- Supports AMD Dual Graphics
- Integrated AMD Radeon HD 7000 series graphics in A-series APU
- Dual VGA Output : D-Sub, HDMI
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Supports ASRock X-Boost, XFast 555, Fast Boot, Restart to UEFI, OMG, Dehumidifier, Interactive UEFI, Easy RAID Installer, AMD Steady Video 2.0
- Free Bundle : Google Chrome Browser and Toolbar, CyberLink MediaEspresso 6.5 Trial

CPU

- Support for Socket FM2 100W processors
- Supports AMD's Cool 'n' Quiet Technology
- UMI-Link GEN2

Chipset

- AMD A75 FCH (Hudson-D3)

Memory

- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1866/1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB*
- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
- Supports AMD Memory Profile (AMP)
*To reach the maximum 32GB of system memory, memory modules with 16GB capacity or above are required. ASRock will update the memory support list on the official website once these memory modules are available on the market.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS

- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- DRAM, APU PCIE VDDP, SB, CPU and CPU NB/GFX Voltage Multi-adjustment

Audio, Video and Networking

Graphics

- Integrated AMD Radeon HD 7000 series graphics in A-series APU
- DirectX 11, Pixel Shader 5.0
- Max. shared memory 2GB
- Dual VGA Output: support HDMI and D-Sub ports by independent display controllers
- Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1600 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
- Supports Blu-ray Stereoscopic 3D with HDMI
- Supports AMD Steady Video™ 2.0: New video post processing capability for automatic jitter reduction on home/online video
- Supports HDCP function with HDMI port
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with HDMI port

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray audio support

LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Expansion / Connectivity

Slots

- 1 x PCI Express 2.0 x16 slot
- Supports AMD Dual Graphics

SATA3

- 4 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug functions

USB 3.0

- 2 x Rear USB 3.0 ports, support USB 1.1/2.0/3.0 up to 5Gb/s
- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports), supports USB 1.1/2.0/3.0 up to 5Gb/s

Connector

- 4 x SATA3 6.0 Gb/s connectors
- 1 x CIR header
- 1 x HDMI_SPDIF header
- 1 x Chassis Intrusion header
- 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
- 1 x Chassis Fan connector (4-pin)
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 1 x USB 3.0 header (supports 2 USB 3.0 ports)

Rear Panel I/O

I/O Panel
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x eSATA3 Connector
- 2 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Other Features / Miscellaneous

Unique Feature

- ASRock Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock UEFI System Browser
- ASRock On/Off Play Technology
- ASRock Dehumidifier Function
- ASRock Easy RAID Installer
- ASRock Interactive UEFI
- ASRock Fast Boot
- ASRock X-Boost
- ASRock Restart to UEFI
- Hybrid Booster:
- ASRock U-COP

Support CD

- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar

Accessories

- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables

Hardware Monitor

- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- CASE OPEN detection
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Form Factor

- Mini-ITX Form Factor
- All Solid Capacitor design

OS

- Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit

Certifications

- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
