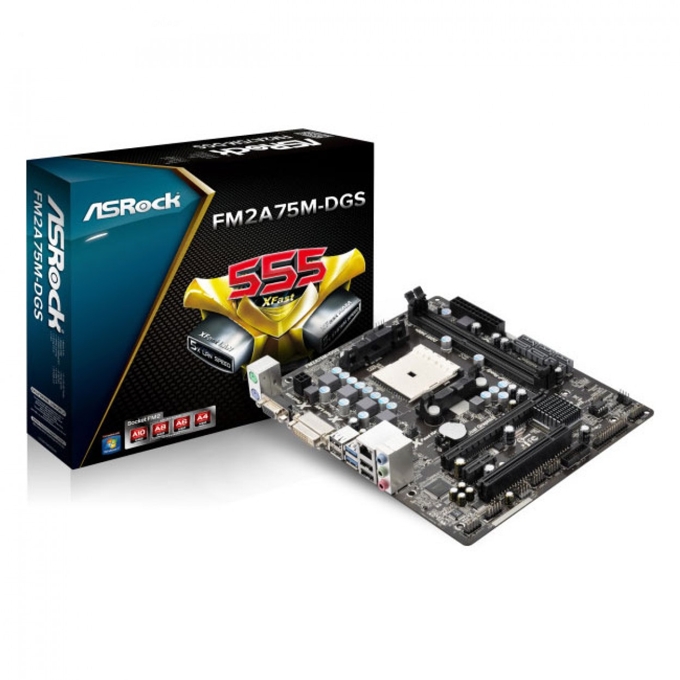

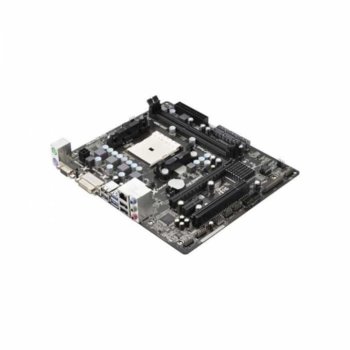

ASRock FM2A75M-DGS
CPU
- Support for Socket FM2 100W processors
- Supports AMD's Cool 'n' Quiet Technology
- UMI-Link GEN2
Chipset
- AMD A75 FCH (Hudson-D3)
Memory
- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 2400+(OC)/2133(OC)/1866/1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB*
- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
- Supports AMD Memory Profile (AMP)
*To reach the maximum 32GB of system memory, memory modules with 16GB capacity or above are required. ASRock will update the memory support list on the official website once these memory modules are available on the market.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- DRAM, VDDP, VDDR, SB Voltage Multi-adjustment
Audio, Video and Networking
Graphics
- Integrated AMD Radeon HD 7000 series graphics in A-series APU
- DirectX 11, Pixel Shader 5.0
- Max. shared memory 2GB
- Dual VGA Output: Support DVI and D-Sub ports by independent display controllers
- Supports Dual-link DVI with max. resolution up to 2560x1600 @ 75Hz
- Supports D-Sub with max. resolution up to 1920x1600 @ 60Hz
- Supports AMD Steady Video™ 2.0: New video post processing capability for automatic jitter reduction on home/online video
- Supports HDCP function with DVI port
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI port
Audio
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Expansion / Connectivity
Slots
- 1 x PCI Express 2.0 x16 slot (PCIE1 @ x16 mode)
- 1 x PCI Express 2.0 x1 slot
- 1 x PCI slot
- Supports AMD Dual Graphics
SATA3
- 6 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug functions
USB 3.0
- 2 x Rear USB 3.0 ports, support USB 1.1/2.0/3.0 up to 5Gb/s
- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports), supports USB 1.1/2.0/3.0 up to 5Gb/s
Connector
- 6 x SATA3 6.0 Gb/s connectors
- 1 x IR header
- 1 x CIR header
- 1 x Print port header
- 1 x COM port header
- 1 x CPU Fan connector (4-pin)
- 1 x Chassis Fan connector (4-pin)
- 1 x Power Fan connector (3-pin)
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
- 1 x USB 3.0 header (supports 2 USB 3.0 ports)
Rear Panel I/O
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 4 x Ready-to-Use USB 2.0 Ports
- 2 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature
- ASRock Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock UEFI System Browser
- ASRock Dehumidifier Function
- ASRock Easy RAID Installer
- ASRock Interactive UEFI
- Hybrid Booster:
- ASRock U-COP
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
- Micro ATX Form Factor
- Solid Capacitor for CPU power
OS
- Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
Виж още Дънни платки за AMD процесори ASRock
Виж всички Дънни платки за AMD процесори в категорията
CPU
- Support for Socket FM2 100W processors
- Supports AMD's Cool 'n' Quiet Technology
- UMI-Link GEN2
Chipset
- AMD A75 FCH (Hudson-D3)
Memory
- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 2400+(OC)/2133(OC)/1866/1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB*
- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
- Supports AMD Memory Profile (AMP)
*To reach the maximum 32GB of system memory, memory modules with 16GB capacity or above are required. ASRock will update the memory support list on the official website once these memory modules are available on the market.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- DRAM, VDDP, VDDR, SB Voltage Multi-adjustment
Audio, Video and Networking
Graphics
- Integrated AMD Radeon HD 7000 series graphics in A-series APU
- DirectX 11, Pixel Shader 5.0
- Max. shared memory 2GB
- Dual VGA Output: Support DVI and D-Sub ports by independent display controllers
- Supports Dual-link DVI with max. resolution up to 2560x1600 @ 75Hz
- Supports D-Sub with max. resolution up to 1920x1600 @ 60Hz
- Supports AMD Steady Video™ 2.0: New video post processing capability for automatic jitter reduction on home/online video
- Supports HDCP function with DVI port
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI port
Audio
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Expansion / Connectivity
Slots
- 1 x PCI Express 2.0 x16 slot (PCIE1 @ x16 mode)
- 1 x PCI Express 2.0 x1 slot
- 1 x PCI slot
- Supports AMD Dual Graphics
SATA3
- 6 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug functions
USB 3.0
- 2 x Rear USB 3.0 ports, support USB 1.1/2.0/3.0 up to 5Gb/s
- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports), supports USB 1.1/2.0/3.0 up to 5Gb/s
Connector
- 6 x SATA3 6.0 Gb/s connectors
- 1 x IR header
- 1 x CIR header
- 1 x Print port header
- 1 x COM port header
- 1 x CPU Fan connector (4-pin)
- 1 x Chassis Fan connector (4-pin)
- 1 x Power Fan connector (3-pin)
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
- 1 x USB 3.0 header (supports 2 USB 3.0 ports)
Rear Panel I/O
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 4 x Ready-to-Use USB 2.0 Ports
- 2 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature
- ASRock Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock UEFI System Browser
- ASRock Dehumidifier Function
- ASRock Easy RAID Installer
- ASRock Interactive UEFI
- Hybrid Booster:
- ASRock U-COP
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
- Micro ATX Form Factor
- Solid Capacitor for CPU power
OS
- Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
Виж още Дънни платки за AMD процесори ASRock
Виж всички Дънни платки за AMD процесори в категорията
Технически характеристики
| Процесор сокет: | FM2 |
|---|---|
| Чипсет: | A75 |
| Поддържана памет: | DDR3 |
| Брой слотове за RAM памет: | 4 |
| Storage интерфейси: | SATA 6Gbit/s |
| RAID: | Да |
| Безжични мрежи: | Не |
| Bluetooth: | Не |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | DVI |
| Форм фактор: | Micro ATX |
| Видеокарта: | Вградена |
