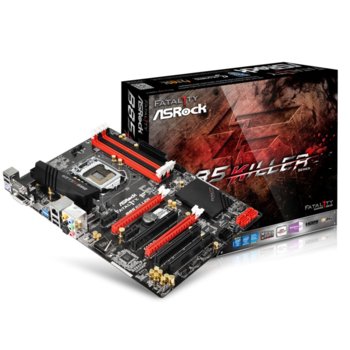

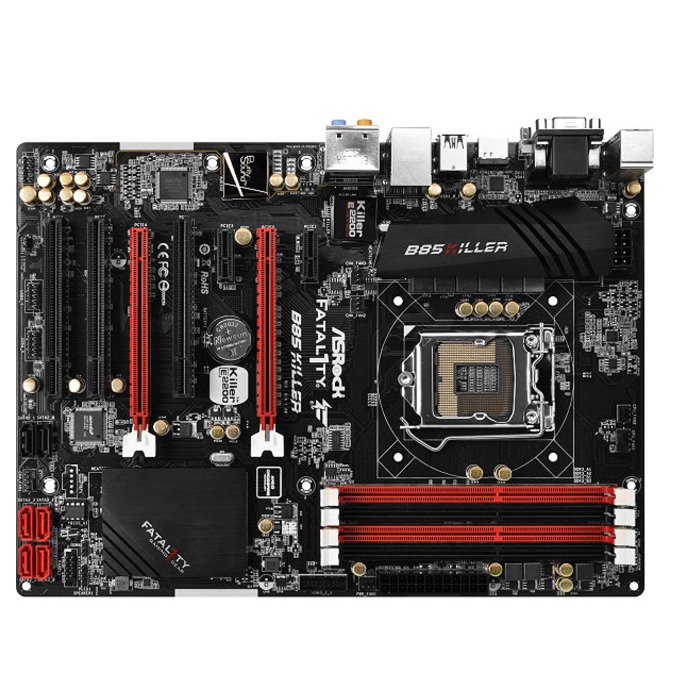

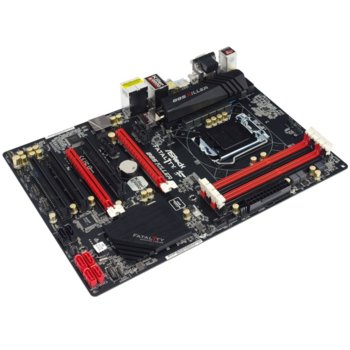

Дънна платка ASRock Fatal1ty B85 Killer, B85, LGA1150, DDR3, PCI-E (HDMI&DVI&VGA)(CF), 4x SATA 6Gb/s, 2x USB 3.0, ATX

Fatal1ty B85 Killer
Another Killer with Gaming Armor, Key Master and XSplit on the loose!

- A-Style : Purity Sound™
- Gaming Armor
» CPU Power - Hi-Density Power Connector
» VGA Card - 15μ Gold Finger
» Internet - Qualcomm Atheros Killer™ LAN
» Audio - Purity Sound™
- Supports 4th Gen Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1150 Package
- Premium Gold Capacitor Design, Digi Power
- Supports Dual Channel DDR3 1600
- 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 2 PCIe 2.0 x1, 3 PCI
- Supports AMD Quad CrossFireX™, CrossFireX
- VGA Output Options : D-Sub, DVI-D, HDMI
- 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Supports DTS Connect
- Qualcomm Atheros Killer™ E2200 Series Gigabit LAN
- Supports A-Style, F-Stream, Key Master, Easy Driver Installer, FAN-Tastic Tuning, USB Key
- 4 SATA3, 2 SATA2, 4 USB 3.0 (2 Front, 2 Rear), 8 USB 2.0 (4 Front, 3 Rear, 1 Fatal1ty Mouse Port)
- Free Bundle : XSplit 3 Months Premium License

A-Style

- Purity Sound™

CPU

- Supports 4th generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1150 package
- Digi Power design
- 6 Power Phase design
- Supports Intel® Turbo Boost 2.0 Technology

Chipset

- Intel® B85
- Supports Intel® Small Business Advantage 2.0

Memory

- Dual Channel DDR3 Memory Technology
- 4 x DDR3 DIMM Slots
- Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB*
- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS

- 64Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 1.1 Compliant wake up events
- SMBIOS 2.3.1 support
- CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjustment

Audio, Video and Networking

Graphics

- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600
- Pixel Shader 5.0, DirectX 11.1
- Max. shared memory 1792MB
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI Technology with max. resolution up to 4K x 2K (4096x2304) @ 24Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D and HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit.
***Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
- Premium Blu-ray Audio support
- Supports Purity Sound™
- 115dB SNR DAC with differential amplifier
- TI NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
- Direct Drive Technology
- EMI shielding cover
- PCB isolate shielding
- Supports DTS Connect

LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Qualcomm Atheros KillerTM E2200 Series
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Expansion / Connectivity

Slots

- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
- 1 x PCI Express 2.0 x16 Slot (PCIE4: x4 mode)
- 2 x PCI Express 2.0 x1 Slots
- 3 x PCI Slots
- Supports AMD Quad CrossFireX™ and CrossFireX™

Storage

- 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
- 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Connector

- 1 x Power LED Header
- 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
- 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
- 1 x Power Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.0 Header (Supports 2 USB 3.0 ports)

Rear Panel I/O

- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 3 x USB 2.0 Ports
- 1 x Fatal1ty Mouse Port (USB 2.0)
- 2 x USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Other Features / Miscellaneous

Unique Feature

- ASRock F-Stream
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock System Browser
- ASRock UEFI Tech Service
- ASRock Dehumidifier
- ASRock Easy Driver Installer
- ASRock Interactive UEFI
- ASRock Fast Boot
- ASRock Restart to UEFI
- ASRock USB Key
- ASRock Key Master
- ASRock FAN-Tastic Tuning
- Hybrid Booster:
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Good Night LED

Support CD

- Drivers, Utilities, AntiVirus Software (Trial version), Google Chrome Browser and Toolbar, Start8 (30 days trial), XSplit, Killer Network Manager

Accessories

- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables

Hardware Monitor

- CPU/Chassis temperature sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor

- ATX Form Factor
- Premium Gold Capacitor design (100% Japan-made high-quality conductive polymer capacitors)

OS

- Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

Certifications

- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
