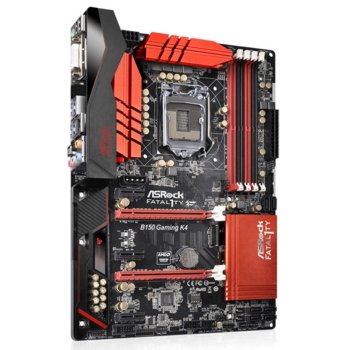

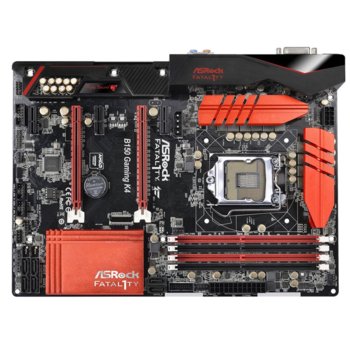

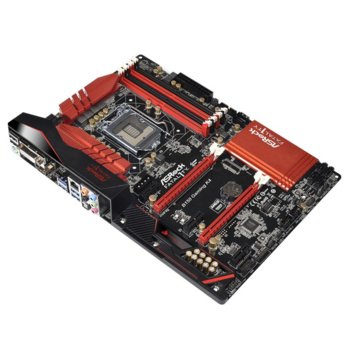

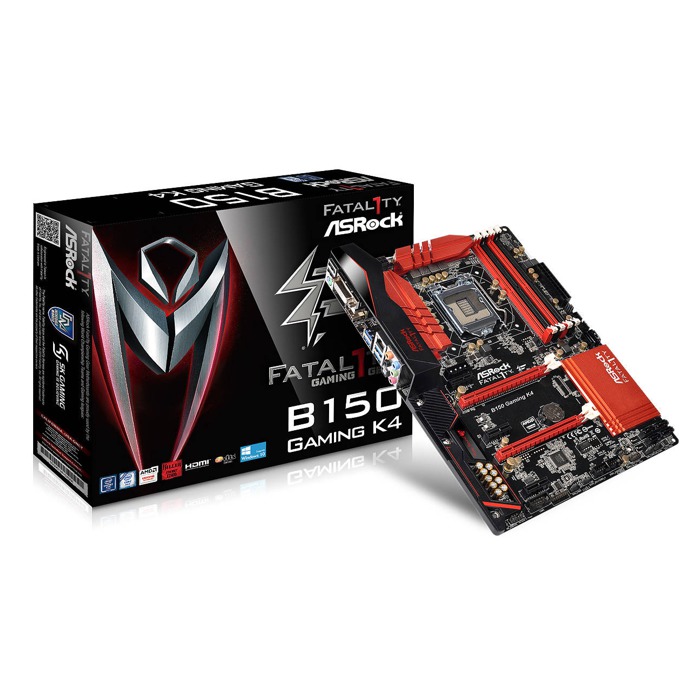

AsRock Fatal1ty B150 Gaming K4
Икона в кампания
НазадAsRock Fatal1ty B150 Gaming K4AsRock Fatal1ty B150 Gaming K4AsRock Fatal1ty B150 Gaming K4AsRock Fatal1ty B150 Gaming K4Напред

Дънна платка AsRock Fatal1ty Gaming K4, B150, 1151, DDR4, PCI-E (HDMI&DVI), 6x SATA 6Gb/s, 2x SATA Express, 1x Ultra M.2, 4x USB 3.0, ATX

id 89897 Код: MBIASROCKASRMBB150GAMINGK4
  • Модел: Fatal1ty Gaming K4
  • Марка: ASRock
  • Код на продукта: ASR-MB-B150-GAMING K4
  • Поддържана памет: DDR4
  • RAID: Да
  • Безжични мрежи: Не
  • Bluetooth: Не
  • Видео слот: PCI-E
  • Multi-Graphics технология: CrossFireX
  • Гаранция: 36 месеца
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / Въпроси
    Gaming Armor Memory
    - 15μ Gold Contact in DIMM Slots
    VGA Card
    - 15μ Gold Contact in VGA PCIe Slot (PCIE2)
    - PCIe Power Connector
    Internet
    - Killer™ E2400 LAN
    Cooling
    - XXL Aluminum Alloy Heatsink
    Audio
    - Purity Sound™ 3
    Unique Feature ASRock Super Alloy
    - XXL Aluminum Alloy Heatsink
    - Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
    - I/O Armor
    - Matte Black PCB
    - High Density Glass Fabric PCB
    ASRock Full Spike Protection
    ASRock Live Update & APP Shop
    CPU - Supports 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151)
    - Digi Power design
    - 10 Power Phase design
    - Supports Intel® Turbo Boost 2.0 Technology
    Chipset - Intel® B150
    - Supports Intel® Small Business Advantage 4.0
    Memory - Dual Channel DDR4 Memory Technology
    - 4 x DDR4 DIMM Slots
    - Supports DDR4 2133 non-ECC, un-buffered memory
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 64GB*
    - Supports Intel® Extreme Memory Profile (XMP) 2.0
    - 15μ Gold Contact in DIMM Slots

    *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
    BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 5.0 Compliant wake up events
    - SMBIOS 2.7 Support
    - CPU, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCPLL, VCCSA Voltage Multi-adjustment
     Audio, Video and Networking
    Graphics - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel®HD Graphics 510/530
    - Pixel Shader 5.0, DirectX 12
    - Max. shared memory 1024MB*
    - Dual graphics output: Support DVI-D and HDMI ports by independent display controllers
    - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
    - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
    - Supports Accelerated Media Codecs: HEVC, VP8, VP9
    - Supports HDCP with DVI-D and HDMI Ports
    - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

    *The size of maximum shared memory may vary from different operating systems.

    **Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

    ***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

    ****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.
    Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
    - Premium Blu-ray Audio support
    - Supports Surge Protection (ASRock Full Spike Protection)
    - Supports Purity Sound™ 3
    - Nichicon Fine Gold Series Audio Caps
    - 115dB SNR DAC with differential amplifier
    - TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
    - Pure Power-In
    - Direct Drive Technology
    - PCB isolate shielding
    - Supports DTS Connect
    LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    - Killer™ E2400 Series
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection (ASRock Full Spike Protection)
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
     Expansion / Connectivity
    Slots - 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*
    - 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
    - Supports AMD Quad CrossFireX™ and CrossFireX™
    - 15μ Gold Contact in VGA PCIe Slot (PCIE2)

    *Supports NVMe SSD as boot disks
    Storage - 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
    Connector - 1 x COM Port Header
    - 1 x TPM Header
    - 1 x Power LED and Speaker Header
    - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
    - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x PCIe Power Connector
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
    - 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

    *CPU_FAN1 and CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use.
    The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

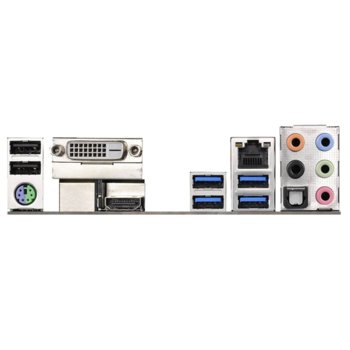

    Rear Panel I/O - 1 x PS/2 Mouse/Keyboard Port
    - 1 x DVI-D Port
    - 1 x HDMI Port
    - 1 x Optical SPDIF Out Port
    - 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
    - 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
    - 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
     Other Features / Miscellaneous
    Software and BIOS Software
    - ASRock F-Stream
    - ASRock Disk Health Report
    - ASRock USB Key
    - ASRock Key Master
    - ASRock APP Charger
    - ASRock XFast RAM
    - ASRock Fast Boot (Fast Boot, Restart to UEFI)*
    UEFI
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash
    - ASRock Crashless BIOS
    - ASRock OMG (Online Management Guard)
    - ASRock UEFI Tech Service
    - ASRock Easy Driver Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
    Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, XSplit, Killer Network Manager
    Accessories - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
    Hardware Monitor - CPU/Chassis temperature sensing
    - CPU/Chassis Fan Tachometer
    - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
    - CPU/Chassis Fan multi-speed control
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA
    Form Factor - ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm




    Виж още Дънни платки за Intel процесори ASRock
    Виж всички Дънни платки за Intel процесори в категорията
    Технически характеристики
    Процесор сокет:  LGA 1151
    Чипсет:  B150
    Поддържана памет:  DDR4
    Брой слотове за RAM памет:  4
    Storage интерфейси:  SATA 6Gbit/s, M.2
    RAID:  Да
    Безжични мрежи:  Не
    Bluetooth:  Не
    Видео слот:  PCI-E
    Multi-Graphics технология:  CrossFireX
    Видео изход:  HDMI DVI
    Форм фактор:  ATX
