Дънна платка ASRock E350M1, вграден двуядрен AMD E350, DDR3, PCI-E x4 (HDMI & DVI), Lan1000, 4x SATA 6Gb/s, mini-ITX

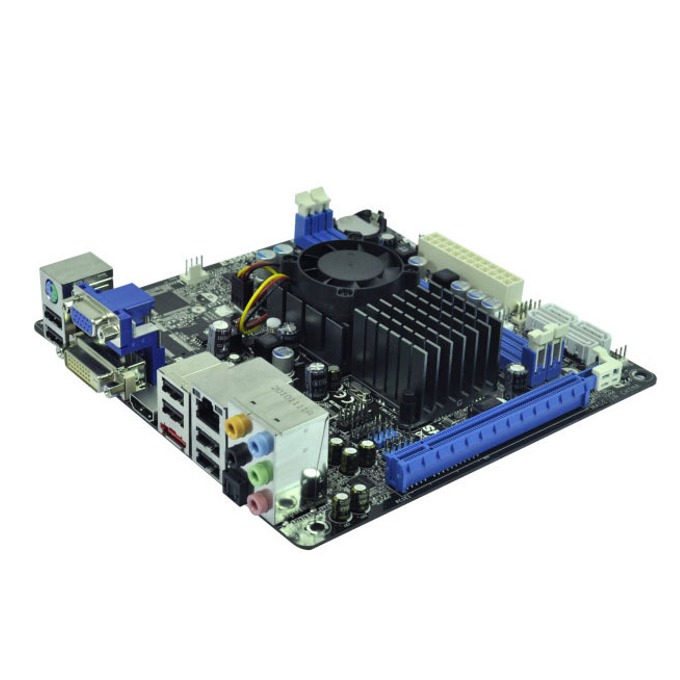

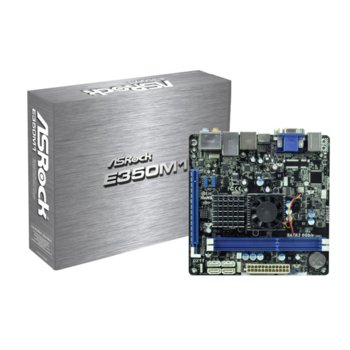

ASRock E350M1

- AMD Dual-Core Processor E350/E350D
- Solid Capacitor for CPU Power
- Supports DDR3 1066, 2 DIMM slots, Max. capacity up to 16GB
- Integrated AMD Radeon HD 6310 graphics, DX11 class iGPU, Pixel Shader 5.0
- 1 x PCI Express 2.0 x16 slot (@ x4)
- Graphics Output Options: D-Sub, DVI-D and HDMI
- 4 x SATA3 connectors
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), Premium Blu-ray audio support
- Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies
- Supports Instant Boot, Instant Flash, Multi-Speed Fan Control, APP Charger

CPU
- AMD Dual-Core Zacate E350/E350D APU
- Supports AMD's Cool 'n' Quiet Technology
- UMI 2.5 GT/s

Chipset
- AMD A50M Chipset

Memory
- 2 x DDR3 DIMM slots
- Supports DDR3 1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
- 32Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- DRAM, FCH, +1V, +1.8V Voltage Multi-adjustment

Audio, Video and Networking

Graphics
- Integrated AMD Radeon HD 6310 graphics
- DX11 class iGPU, Pixel Shader 5.0
- Max. shared memory 512MB
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports HDMI Technology with max. resolution up to 1920x1200 (1080P)
- Supports DVI with max. resolution up to 1920x1200 @ 75Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 85Hz
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports
- Supports Dolby® TrueHD and DTS-HD Master Audio through HDMI port

Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray audio support

LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az

Expansion / Connectivity

Slots
- 1 x PCI Express 2.0 x16 slot (blue @ x4 mode)

SATA3
- 4 x SATA3 6.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions

Connector
- 4 x SATA3 6.0 Gb/s connectors
- 1 x CIR header
- 1 x COM port header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

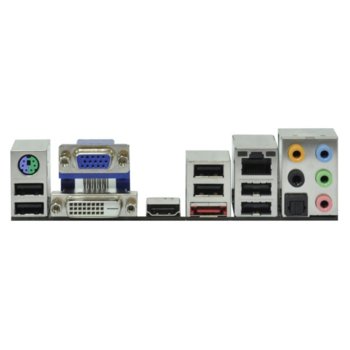

Rear Panel I/O
I/O Panel
- 1 x PS/2 Keyboard/Mouse Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x eSATA3 Connector
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Other Features / Miscellaneous

Unique Feature
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- Hybrid Booster:
- ASRock U-COP
- Boot Failure Guard (B.F.G.)

Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar

Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables

Hardware Monitor
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU or MB Temperature)
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
- Mini-ITX Form Factor
- Solid Capacitor for CPU power

OS
- Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP Media Center / XP 64-bit compliant

Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
