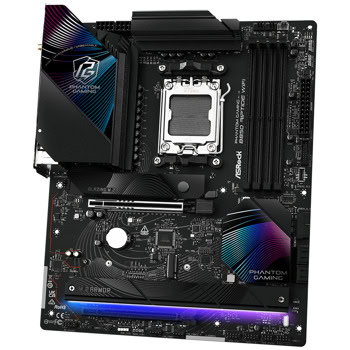

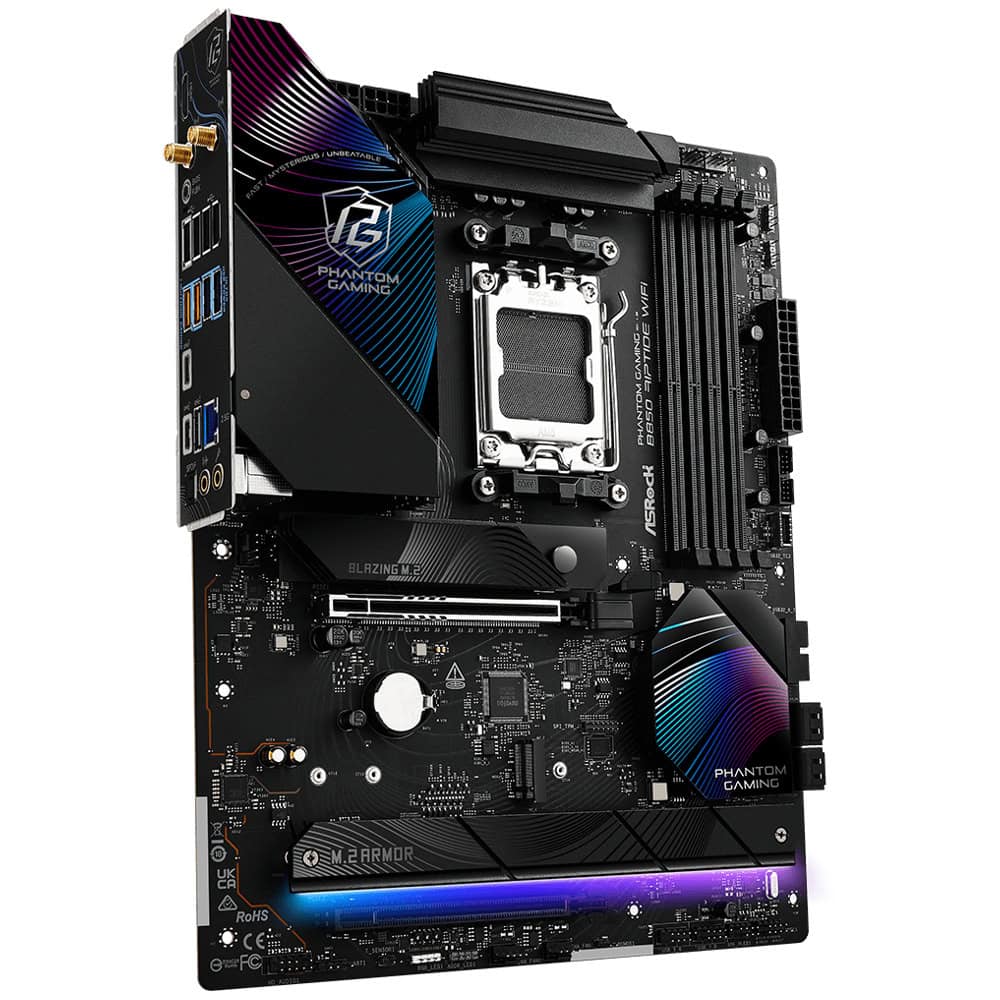

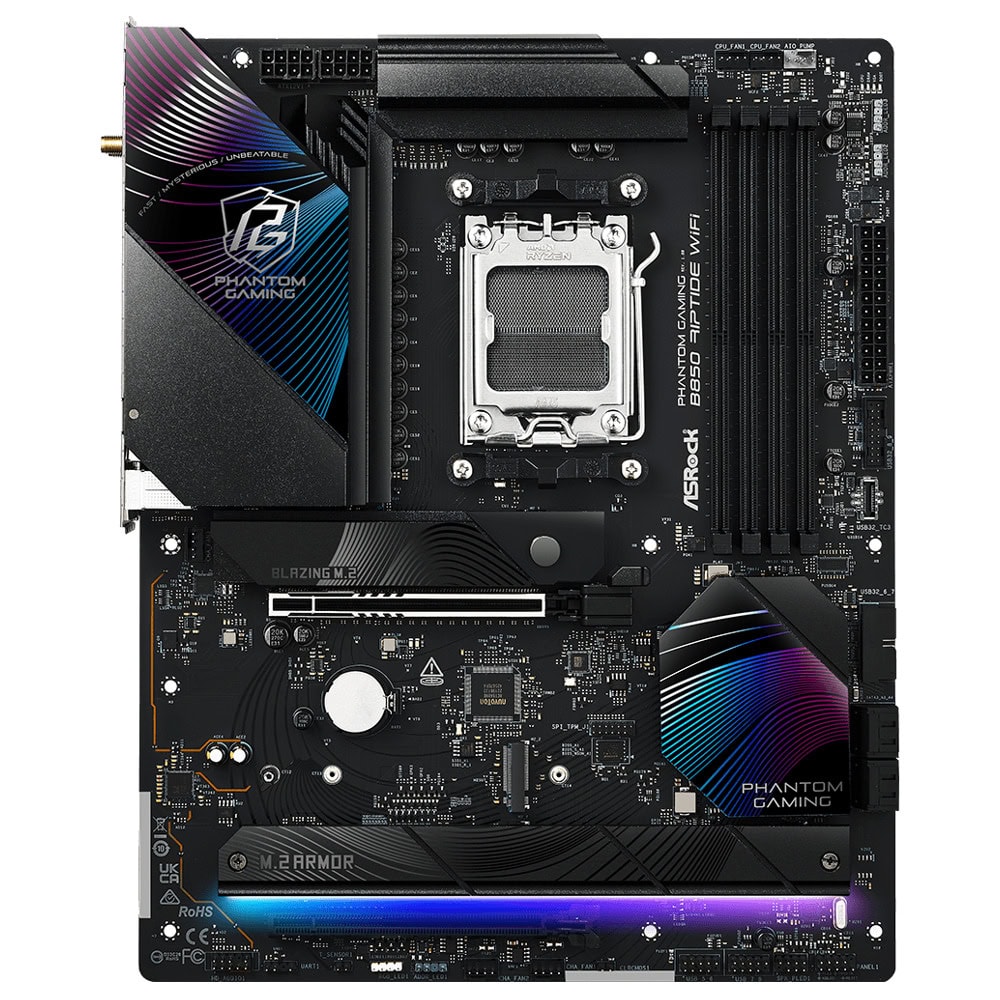

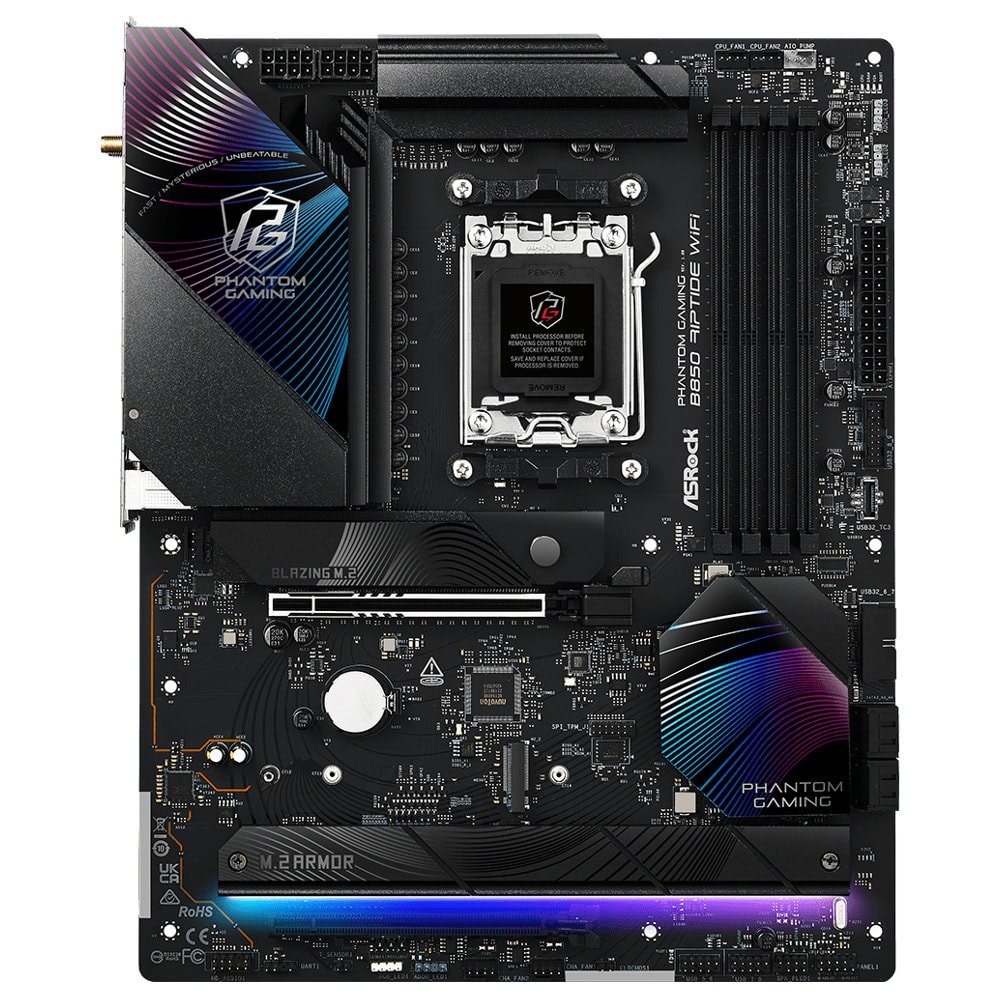

Дънна платка ASRock B850 Riptide WIFI, B850, AM5, DDR5, PCI-E 5.0 (HDMI), 4x SATA 6Gb/s, 4x M.2 slots, 2x USB 3.2 Gen 2 Type-C, .5GbE LAN, Wi-Fi 7, Bluetooth 5.4, ATX

PHANTOM GAMING

B850 Riptide WiFi

Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea’s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.

• Unique Feature

  Superb Productivity
  - PCIe Gen5 (Graphics, M.2)
  - Dual Channel DDR5
  Rock-Solid Durability
  - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor
  - Flexible Integrated I/O Shield
  - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
  Ultrafast Gaming
  - Killer 2.5G LAN, 802.11be Wi-Fi 7 Module
  - ASRock Lightning Gaming Ports
  EZ Update
  - BIOS Flashback Button
  - ASRock Auto Driver Installer

• CPU

  - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*



  * The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.

• Chipset

  - AMD B850

• Memory

  - Dual Channel DDR5 Memory Technology
  - 4 x DDR5 DIMM Slots
  - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
  - Max. capacity of system memory: 256GB
  - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

• BIOS

  - 256Mb AMI UEFI Legal BIOS with GUI support

• Graphics

  Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

• Audio

  - 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
  - Individual PCB Layers for R/L Audio Channel
  - Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
  - Nahimic Audio

• LAN

  - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  - Killer E3100G
  - Supports Killer LAN Software

• Wireless LAN

  - 802.11be 2x2 Wi-Fi 7 Module
  - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
  - Supports 2.4GHz/5GHz/6GHz* frequency band
  - Supports 160MHz channel bandwidth with 6GHz* frequency band
  - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
  - Supports Bluetooth 5.4
  - Supports MU-MIMO



  *The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.

• Slots

  CPU:
  - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
  Chipset:
  - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
  - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  - 15μ Gold Contact in VGA PCIe Slot (PCIE1)



  * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
  If M2_4 is occupied, PCIE2 will be disabled.
  Supports NVMe SSD as boot disks

• Storage

  CPU:
  - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
  - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  Chipset:
  - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  ASMedia ASM1061:
  - 4 x SATA3 6.0 Gb/s Connectors



  * Supports NVMe SSD as boot disks
  M2_1 is the first priority for M.2 installation.
  M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
  M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors.
  If M2_4 is occupied, PCIE2 will be disabled.

• RAID

  - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

• USB

  CPU:
  - 2 x USB 3.2 Gen2 Type-C (Rear)
  - 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3))
  - 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1))
  Chipset:
  - 1 x USB 3.2 Gen2x2 Type-C (Front)
  - 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4))
  - 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front)
  - 8 x USB 2.0 (4 Rear, 4 Front)



  * All USB ports support ESD Protection

• Connector

  - 1 x SPI TPM Header
  - 1 x Thermistor Cable Header
  - 1 x Power LED and Speaker Header
  - 1 x RGB LED Header*
  - 3 x Addressable LED Headers**
  - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
  - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
  - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
  - 1 x Front Panel Audio Connector
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)



  * Supports in total up to 12V/3A, 36W LED Strip
  ** Support in total up to 5V/3A, 15W LED Strip
  *** CPU_FAN1 supports the fan power up to 1A (12W).
  CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W).
  CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

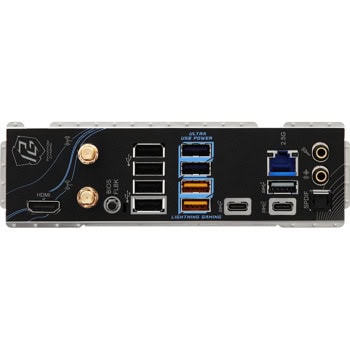

• Rear Panel I/O

  - 2 x Antenna Ports
  - 1 x HDMI Port
  - 1 x Optical SPDIF Out Port
  - 2 x USB 3.2 Gen2 Type-C Ports (10 Gb/s)
  - 3 x USB 3.2 Gen1 Type-A Ports*
  - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)**
  - 4 x USB 2.0 Ports
  - 1 x RJ-45 LAN Port
  - 1 x BIOS Flashback Button
  - 1 x Line Out Jack (Gold Audio Jack)
  - 1 x Microphone Input Jack (Gold Audio Jack)



  * USB32_12 are Lightning Gaming Ports.
  ** USB32_34 supports Ultra USB Power.

• Software and UEFI

  Software
  - ASRock Motherboard Utility (Phantom Gaming Tuning)
  - Killer Control Center
  - ASRock Polychrome SYNC*
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock Auto Driver Installer
  - ASRock Instant Flash



  *These utilities can be downloaded from ASRock Live Update & APP Shop.

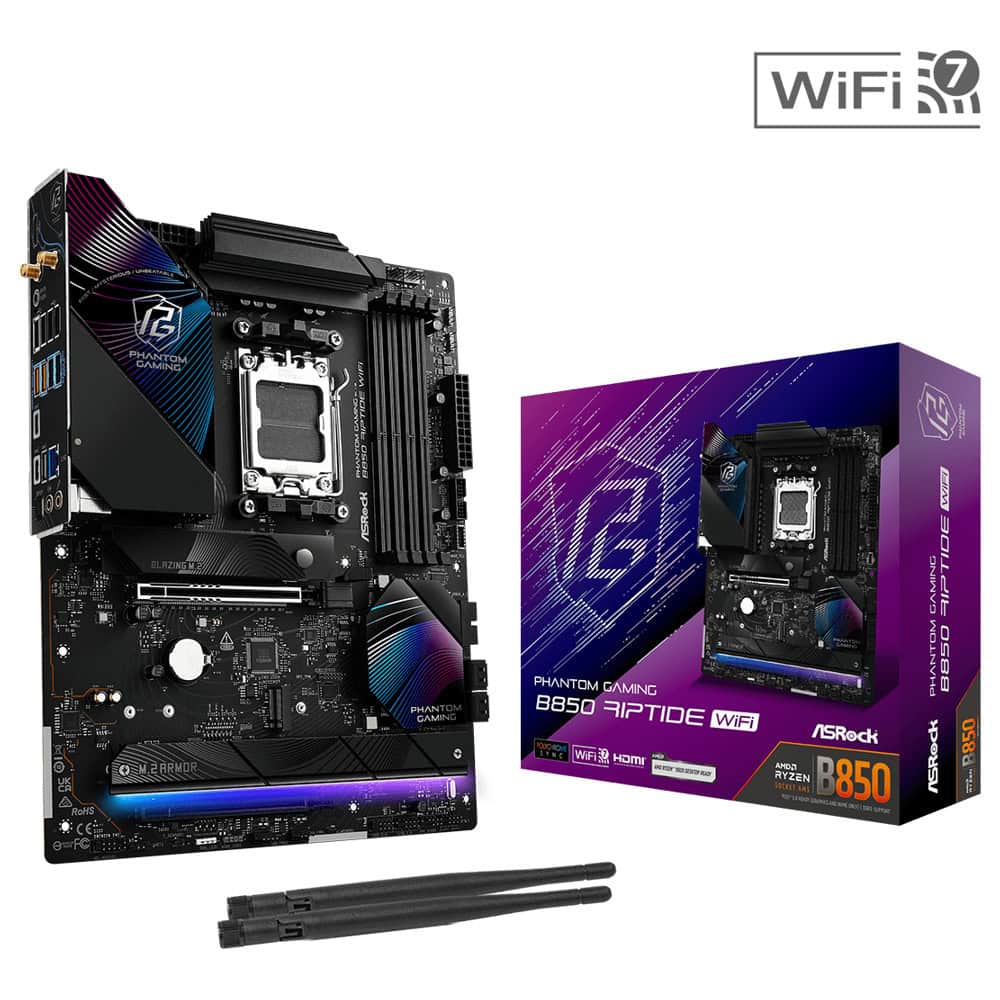

• Accessories

  - 2 x SATA Data Cables
  - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
  - 1 x ARGB Splitter Cable
  - 1 x Thermistor Cable

• Form Factor

  - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
  - 8 Layer PCB

• OS

  - Microsoft Windows® 10 64-bit / 11 64-bit

• Certifications

  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
