Дънна платка ASRock B650E Taichi Lite, B650, AM5, DDR5, PCIe 5.0 (HDMI), 3x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Gen2 Type-C, 10x USB 3.2 Gen2, Wi-Fi, Bluetooth, E-ATX

SIMPLY BRILLIANT

B650E Taichi Lite

Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task – with style! Become like water. Shapeless, formless, versatile for any situation.

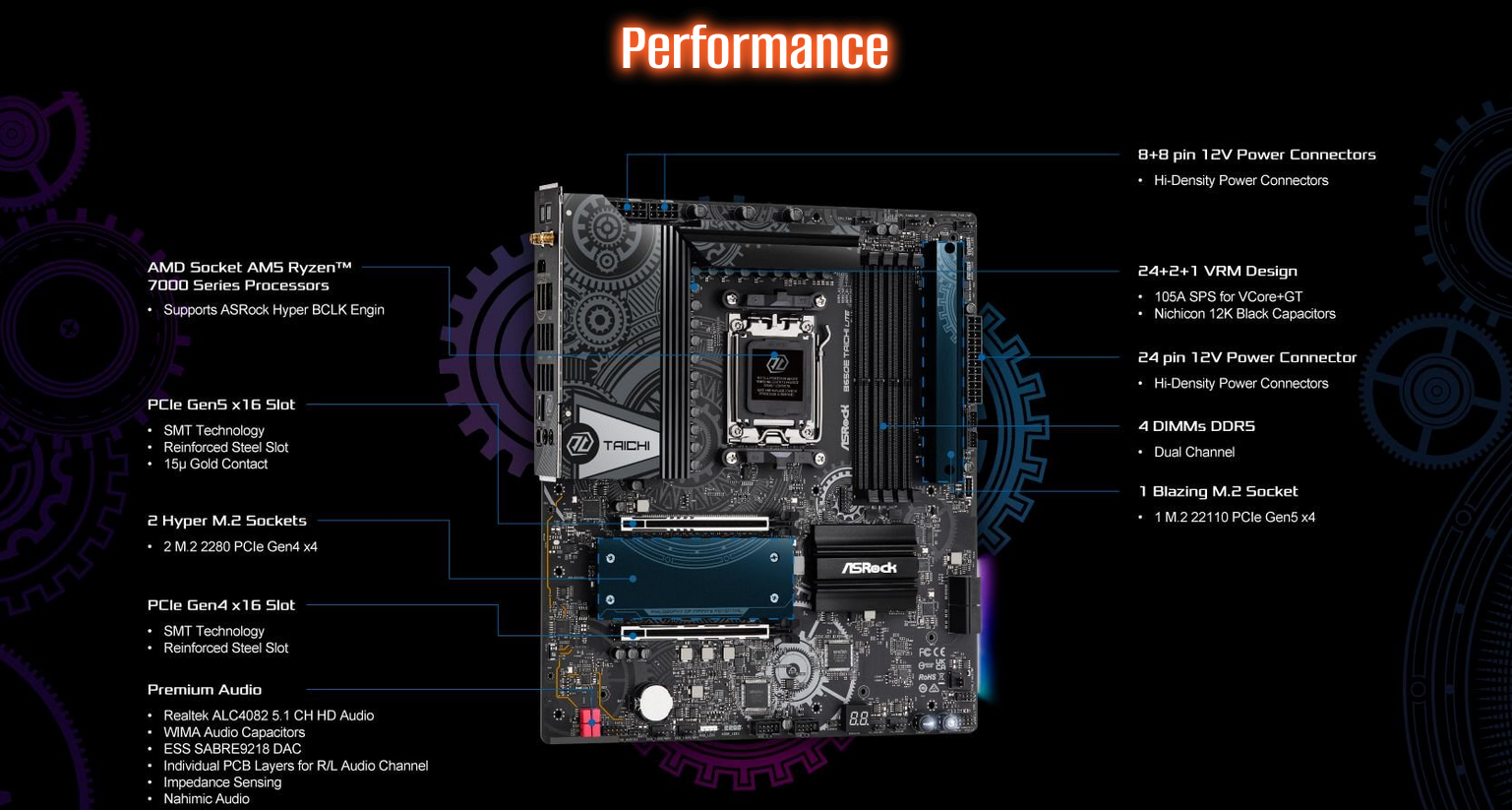

PRODUCT BRIEF:

• Supports AMD Ryzen™ 7000 Series Processors
• 24+2+1 Phase Power Design, SPS for VCore+GT
• 4 x DDR5 DIMMs, supports up to 6600+(OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
• Graphics Output Options: 1 USB4 Type-C, 1 HDMI
• Realtek ALC4082 5.1 CH HD Audio Codec,
  ESS SABRE9218 DAC, WIMA Audio Caps
• 1 Blazing M.2 (PCIe Gen5x4),
  2 Hyper M.2 (PCIe Gen4x4),
  4 SATA3
• 1 USB4 Type-C (Rear),
  1 USB 3.2 Gen2x2 Type-C (Front),
  3 USB 3.2 Gen2 Type-A (Rear),
  10 USB 3.2 Gen1 (8 Rear, 2 Front)
• Killer 2.5G LAN
• Killer 802.11ax Wi-Fi 6E + Bluetooth 5.3

PHILOSOPHY OF
INFINITE POTENTIAL

Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task – with style! Become like water. Shapeless, formless, versatile for any situation.

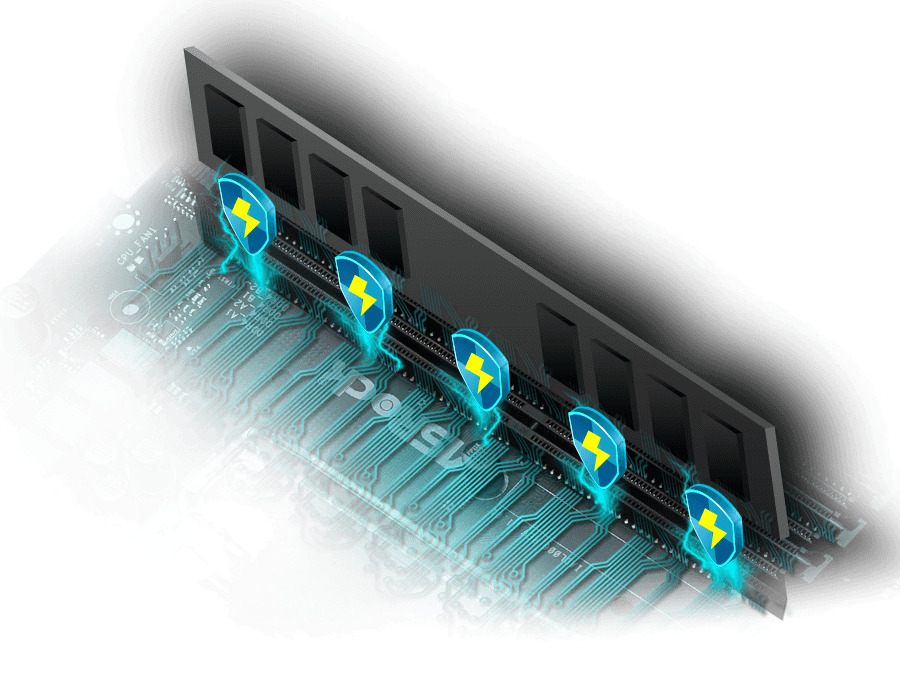

DDR5 DIY Friendly Design

Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.



Specifications:

• Unique Feature

  Superb Productivity
  - PCIe Gen5 (Graphics, M.2)
  - Dual Channel DDR5
  - USB4 Type-C Port (40 Gb/s)
  Rock-Solid Durability
  - Server-Grade Low-Loss PCB
  - 24+2+1 Power Phase, 105A SPS for VCore+GT with Enlarged Heatsink Armor
  - Flexible Integrated I/O Shield
  - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
  Ultrafast Gaming
  - Killer 2.5G LAN, Killer
  802.11ax Wi-Fi 6EModule
  - Killer DoubleShot™ Pro
  - ASRock Lightning Gaming Ports
  EZ Update
  - BIOS Flashback Button
  - ASRock Auto Driver Installer

• CPU

  - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
  - Supports ASRock Hyper BCLK Engine

• Chipset

  - AMD B650

• Memory

  - Dual Channel DDR5 Memory Technology
  - 4 x DDR5 DIMM Slots
  - Supports DDR5 non-ECC, un-buffered memory up to 6600+(OC)
  - Max. capacity of system memory: 192GB
  - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

• BIOS

  - 256Mb AMI UEFI Legal BIOS with GUI support

• Graphics

  Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
  - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  - 1 x USB4, supports HDCP 2.3 and max. resolution up to 8K 60Hz

  Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use CPU models with embedded graphics.
  USB4 graphics output may not be compatible with certain Type-C monitors. Please use graphics card outputs instead.

• Audio

  - 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
  - WIMA Audio Capacitors (For Front Outputs)
  - ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)
  - Individual PCB Layers for R/L Audio Channel
  - Impedance Sensing on Rear Out port
  - Nahimic Audio

• LAN

  - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  - Killer E3100G
  - Supports Killer LAN Software
  - Supports Killer DoubleShot™ Pro

• Wireless LAN

  - 802.11ax Wi-Fi 6E Module
  - Supports IEEE 802.11a/b/g/n/ac/ax
  - Supports Dual-Band 2x2 160MHz with extended 6GHz band support
  - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  - Supports Bluetooth 5.3 + High speed class II
  - Supports MU-MIMO
  - Supports Killer LAN Software
  - Supports Killer DoubleShot™ Pro

  Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
  A 6GHz compatible router is required for 6E functionality.

• Slots

  CPU:
  - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
  Chipset:
  - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
  - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

  - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

  If M2_3 is occupied, PCIE2 will be disabled.
  Supports NVMe SSD as boot disks

• Storage

  CPU:
  - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2230/2242/2260/2280/22110 PCIe Gen5x4 (128 Gb/s) mode
  Chipset:
  - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
  - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
  ASMedia ASM1061:
  - 4 x SATA3 6.0 Gb/s Connectors

  Supports NVMe SSD as boot disks
  If M2_3 is occupied, PCIE2 will be disabled.

• RAID

  - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

  Requires additional M.2 NVMe expansion cards to support RAID 10

• USB

  - 1 x USB4 Type-C (Rear)
  - 1 x USB 3.2 Gen2x2 Type-C (Front)
  - 3 x USB 3.2 Gen2 Type-A (Rear)
  - 10 x USB 3.2 Gen1 (8 Rear, 2 Front)
  - 4 x USB 2.0 (Front)

  All USB ports support ESD Protection

• Connector

  - 1 x SPI TPM Header
  - 1 x Power LED and Speaker Header
  - 1 x RGB LED Header
  - 3 x Addressable LED Headers

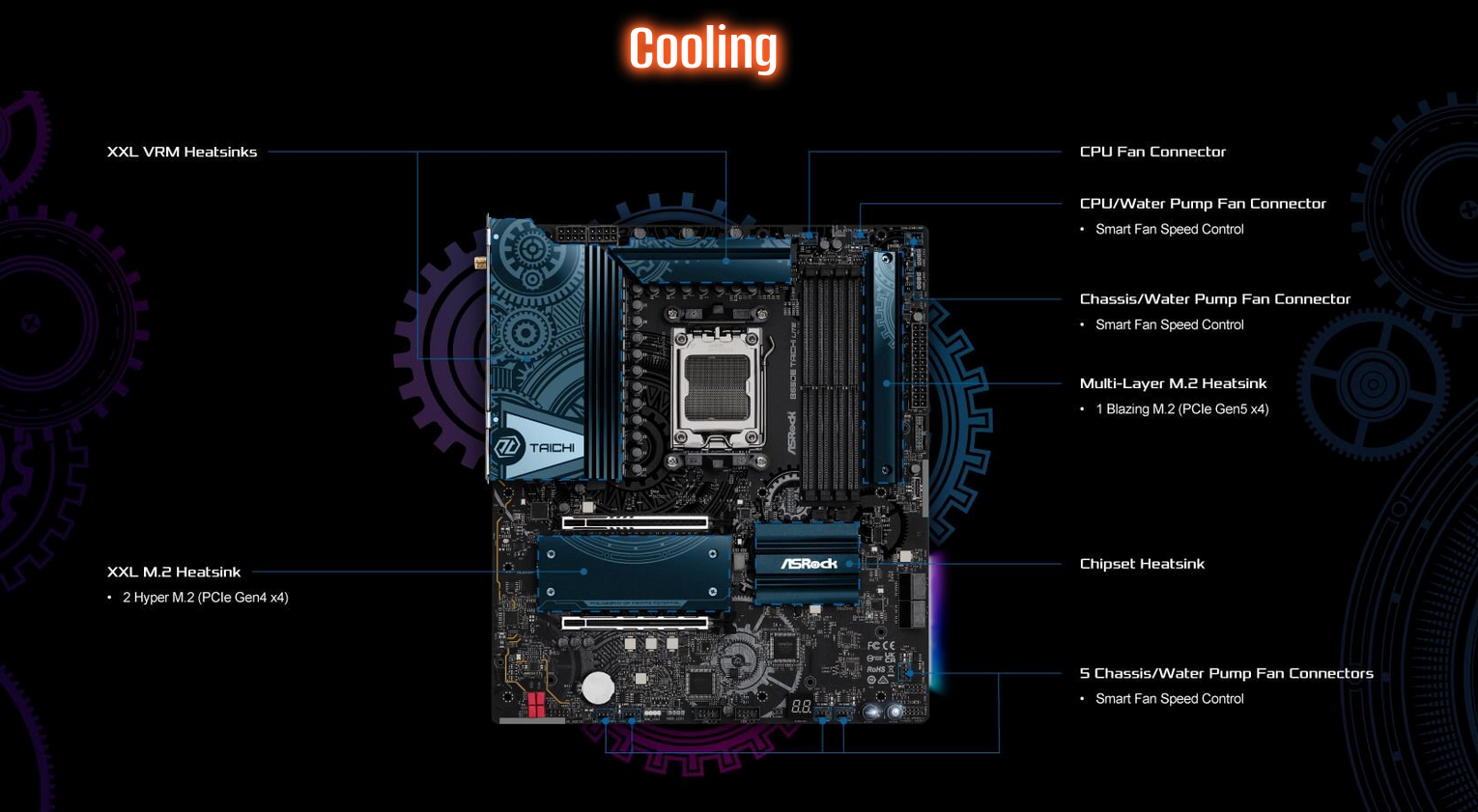

  - 1 x CPU Fan Connector (4-pin)
  - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  - 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
  - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
  - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)
  - 1 x Dr. Debug with LED
  - 1 x Power Button with LED
  - 1 x Reset Button with LED

  Supports in total up to 12V/3A, 36W LED Strip


  Support in total up to 5V/3A, 15W LED Strip

  CPU_FAN1 supports the fan power up to 1A (12W).

  CPU_FAN2/WP_3A supports the fan power up to 3A (36W).

  CHA_FAN1~6/WP support the fan power up to 2A (24W).

  CPU_FAN2/WP_3A and CHA_FAN1~6/WP can auto detect if 3-pin or 4-pin fan is in use.

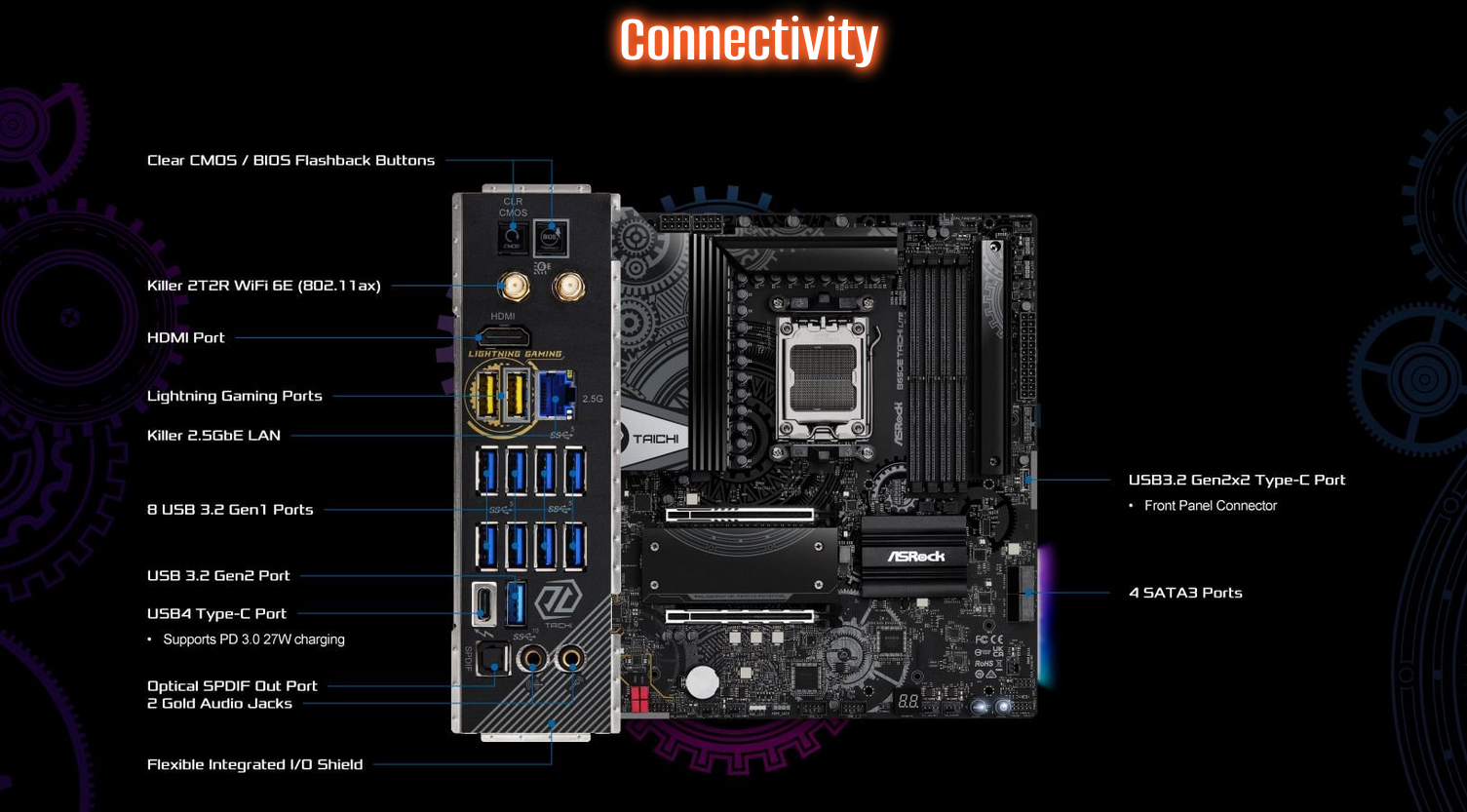

• Rear Panel I/O

  - 2 x Antenna Ports
  - 1 x HDMI Port
  - 1 x Optical SPDIF Out Port
  - 1 x USB4 Type-C Port (40 Gb/s)
  - 3 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (USB32_12 are Lightning Gaming Ports. USB32_11 supports Ultra USB Power.)
  - 8 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub)
  - 1 x RJ-45 LAN Port
  - 1 x Clear CMOS Button
  - 1 x BIOS Flashback Button
  - 1 x Line Out Jack (Gold Audio Jack)
  - 1 x Microphone Input Jack (Gold Audio Jack)

  Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging

• Software and UEFI

  Software
  - ASRock Motherboard Utility (A-Tuning)
  - Killer Control Center
  - ASRock Polychrome SYNC
  UEFI
  - ASRock Full HD UEFI
  - ASRock Auto Driver Installer
  - ASRock Instant Flash

  These utilities can be downloaded from ASRock Live Update & APP Shop.

• Accessories

  - 1 x User Manual
  - 4 x SATA Data Cables
  - 1 x Wireless Dongle USB Bracket
  - 1 x ASRock WiFi 2.4/5/6 GHz Antenna
  - 3 x Screws for M.2 Sockets
  - 1 x Standoff for M.2 Socket

• Form Factor

  - EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
  - 8 Layer PCB

• OS

  - Microsoft® Windows® 10 64-bit / 11 64-bit

• Certifications

  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
