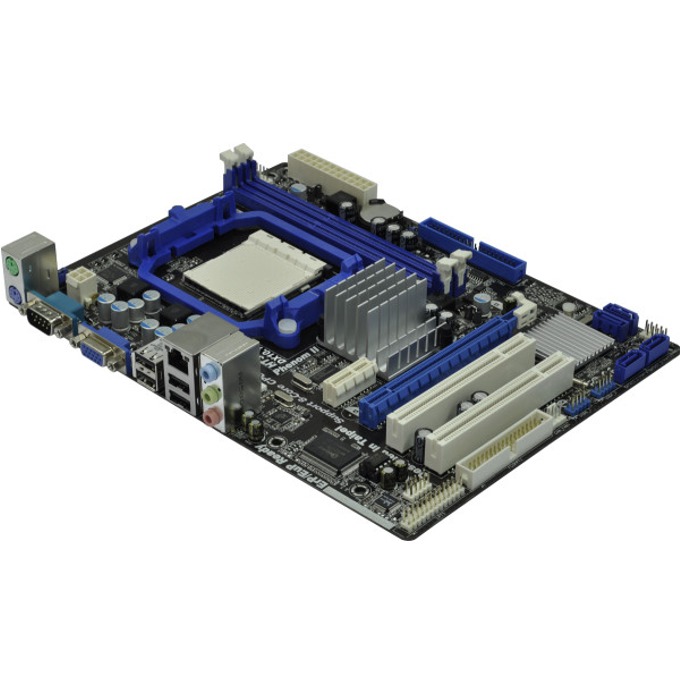

Дънна платка ASrock 960GM-GS3 FX, AM3+, DDR3 1800(OC, PCI-E(D-Sub), SB5.1, LAN1000 Mb/s, 4 x SATA2, USB 2.0, mATX

ASrock 960GM-GS3 FX

- Supports AM3+ Processor, 8-Core CPU
- Solid Capacitor for CPU Power
- Supports Dual Channel DDR3 1800(OC)
- 1 x PCI Express 2.0 x16 slot
- Integrated AMD Radeon 3000 graphics, DX10, PS 4.0
- Gigabit LAN 10/100/1000 Mb/s
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies
- Supports ASRock Instant Boot, Instant Flash, OC DNA, APP Charger
- Free Bundle : CyberLink MediaEspresso 6.5 Trial

Процесор

- Support up to 95W Socket AM3+ processors
- Support for Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
- Supports 8-Core CPU
- Supports AMD OverDrive™ with ACC feature (Advanced Clock Calibration)
- AMD LIVE!™ Ready
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology

Чипсет

- Northbridge: AMD 760G
- Southbridge: AMD SB710

Памет

- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1800(OC)/1600(OC)/1333/1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB*

(*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.)

BIOS

- 8Mb AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, VCCM, NB Voltage Multi-adjustment

Аудио, Видео и Мрежа

Графика

- Integrated AMD Radeon 3000 graphics
- DX10 class iGPU, Pixel Shader 4.0
- Max. shared memory 512MB
- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz

Аудио

- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports PXE

Разширение / Свързване
Слотове - 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)
- 1 x PCI Express 2.0 x1 slot
- 2 x PCI slots

Конектор

- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x Print port header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

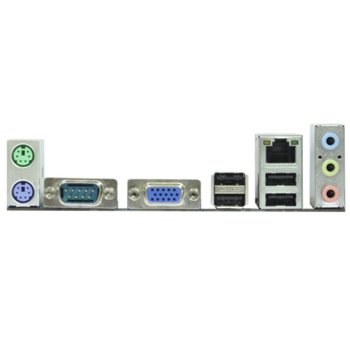

Заден панел с входове и изходи I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone

Други функции / Разни

Уникални функции

- ASRock OC Tuner
- ASRock Intelligent Energy Saver
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
CD с поддръжка - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial

Аксесоари

- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables

Хардуерен монитор

- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Форм фактор

- Micro ATX Form Factor: 9.6-in x 7.2-in, 24.4 cm x 18.3 cm
- Solid Capacitor for CPU Power

OC

- Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP Media Center / XP 64-bit compliant

Сертификати
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
