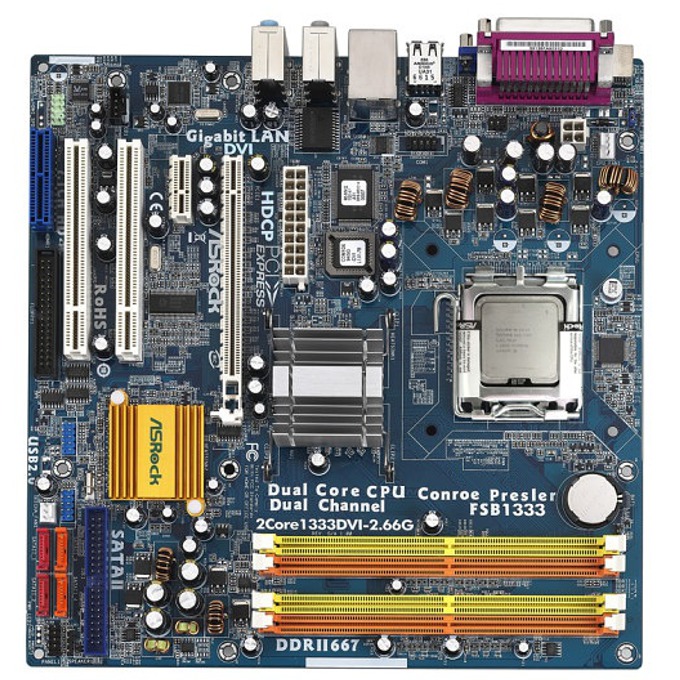

Дънна платка ASRock 2CORE1333DVI-2.66G +процесор дву-ядрен Intel E2140, 945GC, LGA775, PCI-E, DDR2, Lan1000, IDE, mATX

2Core1333DVI-2.66G

- LGA 775 for Intel® Dual Core Core™ 2 Extreme / Core™ 2 Duo / Pentium® D / Pentium® Dual Core / Pentium® 4 / Celeron® / Celeron® D
- Compatible with all FSB1333/1066/800/533 MHz CPUs except Quad Core
- Supports Hyper-Threading Technology
Intel® 945GC A2 Chipset
Supports Dual Channel DDR2 667/533 x 4 DIMM slots with max. capacity up to 4GB
Intel® Graphics Media Accelerator 950, DirectX 9.0 and Max. shared memory 224MB
1 x PCI Express x16 slot
Hybrid Booster - Safe Overclocking Technology
Untied Overclocking : During overclocking, FSB enjoys better margin due to fixed PCIE/ PCI Buses
Graphics Output Options: Support D-Sub and DVI-D ports with DVI Graphics-HDCP Card by independent display controllers
Supports HDCP function with DVI Graphics-HDCP Card, to enjoy better quality with High Definition HDCP Encryption contents
Supports PCIE Gigabit LAN 10/100/1000 Mb/s
4 x SATA2 3.0 Gb/s connectors
7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
Windows® Vista™ Premium 2007 Logo Ready
Free Bundle: 1 x DVI Graphics-HDCP Card
HD 8CH I/O: 4 ready-to-use USB Ports, HD 7.1 channel audio jacks

CPU

- LGA 775 for Intel® Dual Core Core™ 2 Extreme / Core™ 2 Duo / Pentium® D / Pentium® Dual Core / Pentium® 4 / Celeron® / Celeron® D
- Compatible with all FSB1333/1066/800/533 MHz CPUs except Quad Core
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU

** FSB1333-CPU will operate in overclocking mode. Under this situation, PCIE frequency will also be overclocked to 115MHz.

Chipset

- Northbridge: Intel® 945GC A2
- Southbridge: Intel® ICH7

Memory

- Dual Channel DDR2 memory technology
- 4 x DDR2 DIMM slots*
- Supports DDR2 667/533 non-ECC, un-buffered memory
- Max. capacity of system memory: 4GB**

*Before you install memory module on this motherboard, please read below message to avoid any improper installation:

» Due to chipset limitation, if you plan to install three or four memory modules on this motherboard, please install only single-sided memory modules.
» To install two memory modules on this motherboard, please install them on DDRII_1 and DDRII_3 DIMM sockets.

For the detailed installation information, please refer to the user manual or quick installation guide.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.

BIOS

- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports Jumperfree
- SMBIOS 2.3.1 Support

Audio, Video and Networking

Graphics

- Intel® Graphics Media Accelerator 950
- Pixel Shader 2.0, DirectX 9.0
- Max. shared memory 224MB
- Two graphics output options: Support D-Sub and DVI-D ports with DVI Graphics-HDCP Card by independent display controllers
- Supports HDCP function with DVI Graphics-HDCP Card

Audio

- 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)

LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111B
- Supports Wake-On-LAN
- Supports PXE

Expansion / Connectivity

Slots

- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
- 1 x HDMR slot

Connector

- 4 x SATA2 3.0 Gb/s connectors (No support for RAID and Hot Plug functions)
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1x COM port header
- CPU/Chassis FAN connector
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

Rear Panel I/O
HD 8CH I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA Port
- 1 x Parallel Port (ECP/EPP support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Other Features / Miscellaneous

Unique Feature
Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)

Support CD

- Drivers, Utilities, AntiVirus Software (Trial Version)

Accessories

- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 100 Cables
- 1 x SATA Data Cable
- 1 x SATA 1 to 1 Power Cable
- 1 x COM Port Bracket
- 1 x DVI Graphics-HDCP Card

Hardware Monitor

- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor

- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

OS
- Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant

Certifications

- FCC, CE, WHQL
