Описание Характеристики Ревюта / Въпроси

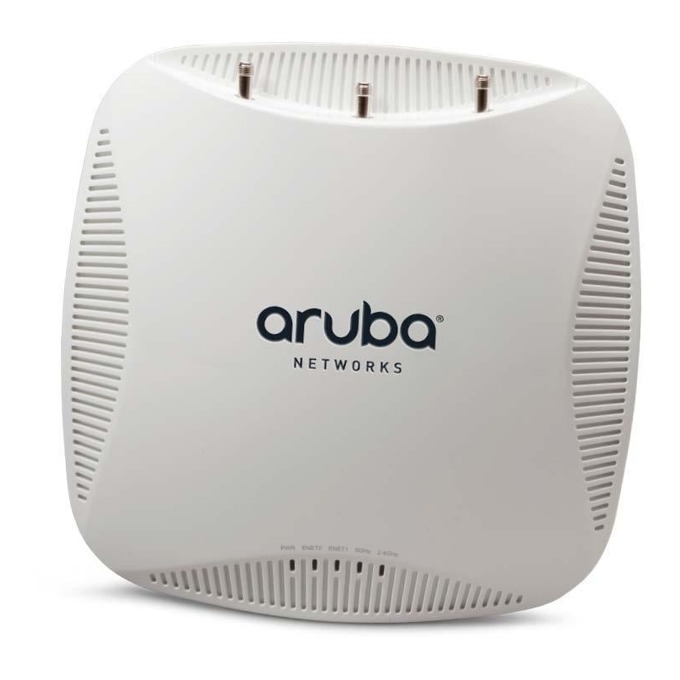

Aruba IAP-224
JW234A

Брой портове LAN : 2x10/100/1000 Base-T, Serial console interface (RJ-45), USB 2.0 port (Type A connector)

WLANстандарт : 802.3, 802.3u, 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.3af, 802.3at, 802.3az

Антена : Three RP-SMA connectors for external dualband antennas. Internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 1.5 dB in 2.4 GHz and 3.0 dB in 5 GHz.

Сигурност : Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys; SecureJack-capable for secure tunneling of wired Ethernet traffic; Integrated wireless intrusion protection; Encrypted IPsec VPN tunnels; Kensington security slot

Wi-FiСкорост : Up to 1.3 Gb/s on the 5 GHz 802.11ac radio and 600 Mb/s on the 2.4 GHz 802.11n radio
Захранване: Power over Ethernet: 48 Vdc (nominal) 802.3af/802.3at compliant source (Unrestricted functionality with 802.3at PoE+); Direct DC source: 12 Vdc nominal (Power sources sold separately)
Управление: Integrated Adaptive Radio Management technology manages the 2.4-GHz and 5-GHz radio bands and ensures that APs stay clear of RF interference

Dimensions(WxDxH) : 203 x 203 x 54 mm

Виж още Аксеспойнт/Репитер Безжични HPE
Виж всички Аксеспойнт/Репитер Безжични в категорията

Технически характеристики

Тип:	Аксес пойнт
Монтаж:	За вътрешен монтаж
Безжична скорост:	1300 Mbps
Wi-Fi Стандарт:	Wi-Fi 5 (802.11ac)
Честота:	2.4 & 5 GHz
Антени:	3 Изхода
dBi на антена/и:	3
PoE:	In & Out
Интерфейс:	2x 1000 + USB 2.0
Други:	Няма
