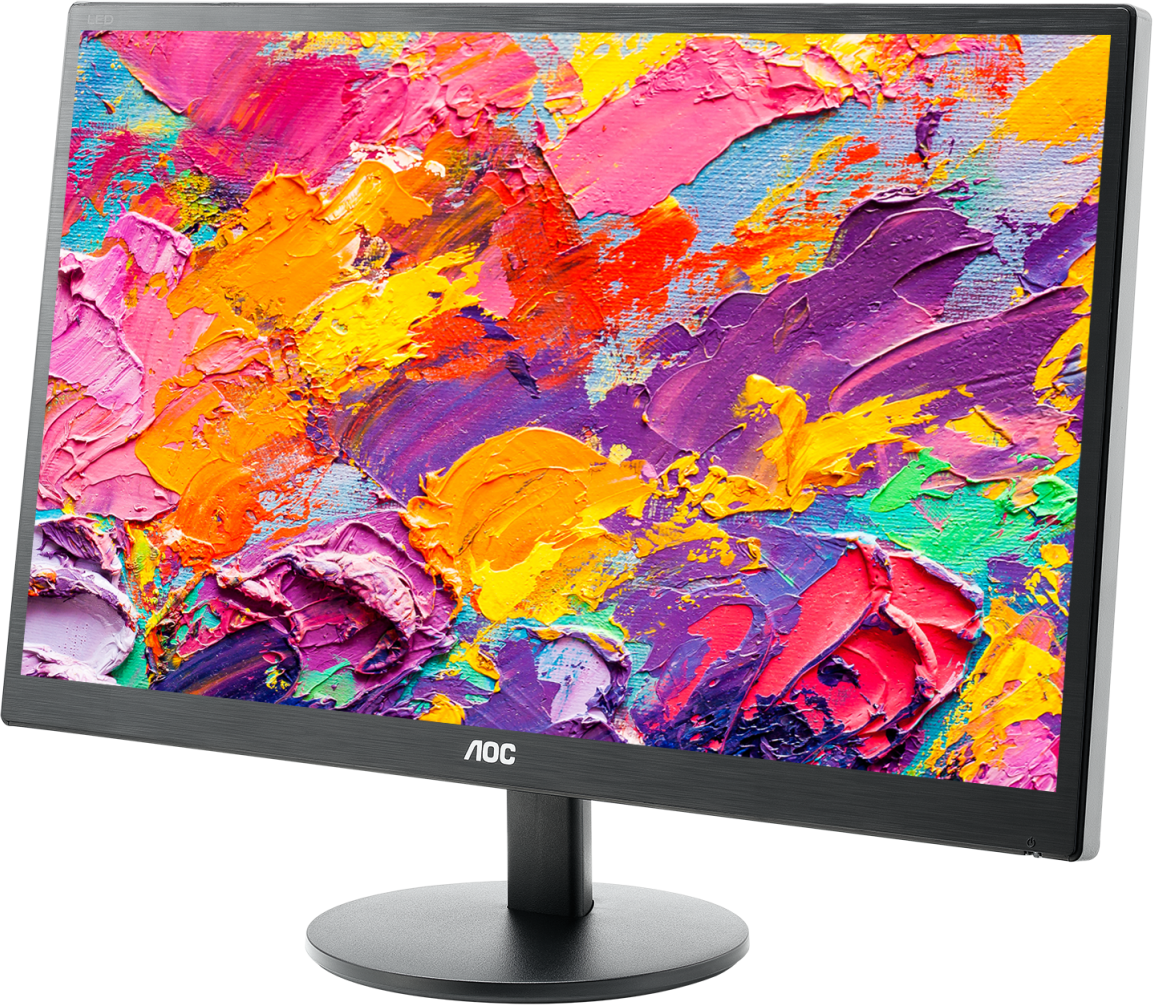

Monitor E2270SWHN Intelligent performance, streamlined design

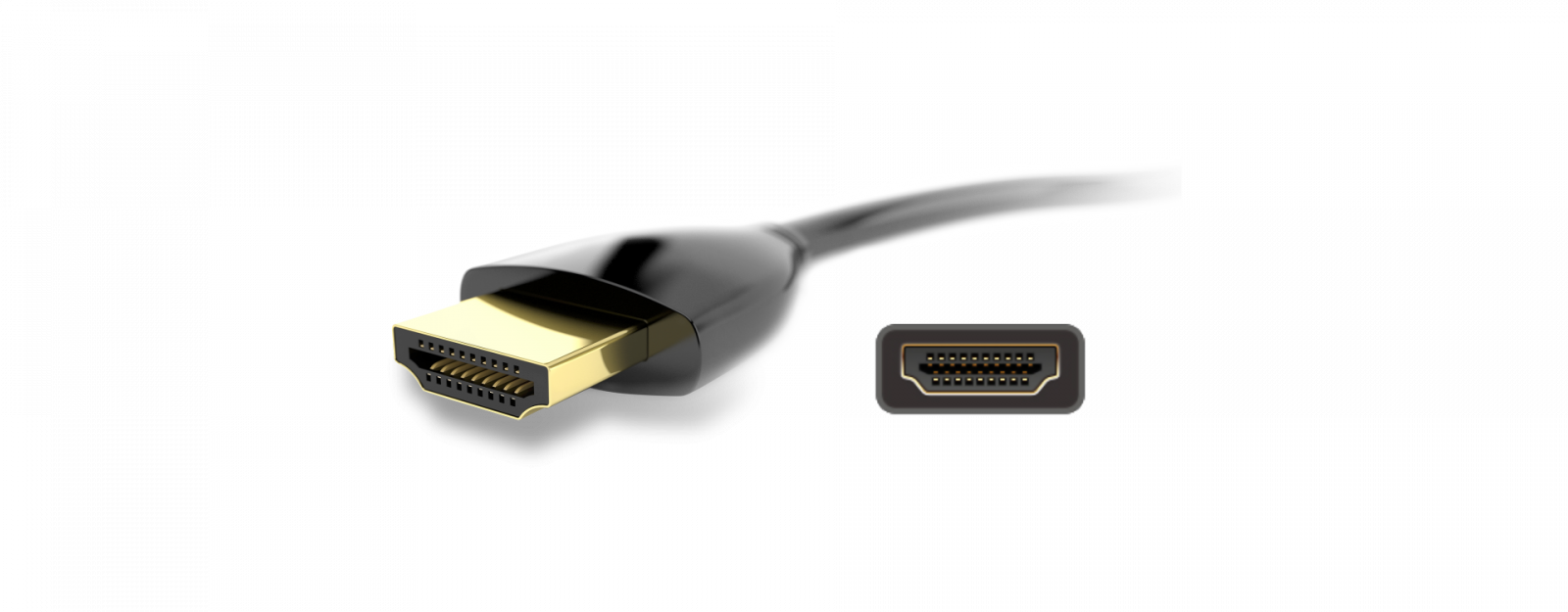

	HDMI HDMI (High-Definition Multimedia Interface) is supported by the current gaming consoles, current GPUs, set-top boxes, supporting the HDCP digital content protection system. HDMI 1.3-1.4b versions support up to 144 Hz refresh rate@1080p and 75 Hz@1440p, while HDMI 2.0-2.0b versions support 240Hz@1080p, 144Hz@1440p and 60 Hz@2160p (4K).

General
Monitor Line Value-line
Monitor Size 21.5 Inch
Visible Screen Size 476.64x268.11
Screen Format 16:9
Brightness 200 cd/m2 (type)
Contrast Ratio 700:1
Dynamic Contrast Ratio 20M:1
Viewing Angle
Response time 5 ms

Scanning Frequency
Scanning Frequency 30-83khz/50-76hz

Resolution
Maximum Resolution 1920x1080@60Hz
Recommended Resolution 1920x1080@60Hz
Colors 16.7 Million
HDCP compatible

Signal Input
Analogue Input: D-Sub
Digital Input: HDMI

Power
Power Source 100 - 240V 50/60Hz
Power Consumption Internal
On: 19W
Standby: 0.5W
Off: 0.5W

Ergonomics
Pivot
Tilt -5/+15

Other Features
Plug and play
Kensington Lock
i-Menu
e-Saver
Vesa Wallmount 100x100
Regulations Energystar 6 , TCO no , EPEAT Silver , TUV-GS , CE , FCC , EAC , Rohs compliant

Виж още Монитори AOC
Виж всички Монитори в категорията

Документация

Технически характеристики

Портове
HDMI:	Да
VGA (D-Sub):	Да

Гама:	Home & Office
Екран размер:	21.5" (54.61 cm)
Разделителна способност (max):	1920 x 1080
Аспект изображение:	16:9
Тип матрица:	TN
Честота на опресняване:	60 Hz
Време за реакция:	5 ms
Яркост:	200 cd/m²
TV Тунер:	Не
Тъчскрийн:	Не
Вградени колони:	Не
3D:	Не
Цвят:	Черен
Формат екран:	Wide
Преносим:	Не
