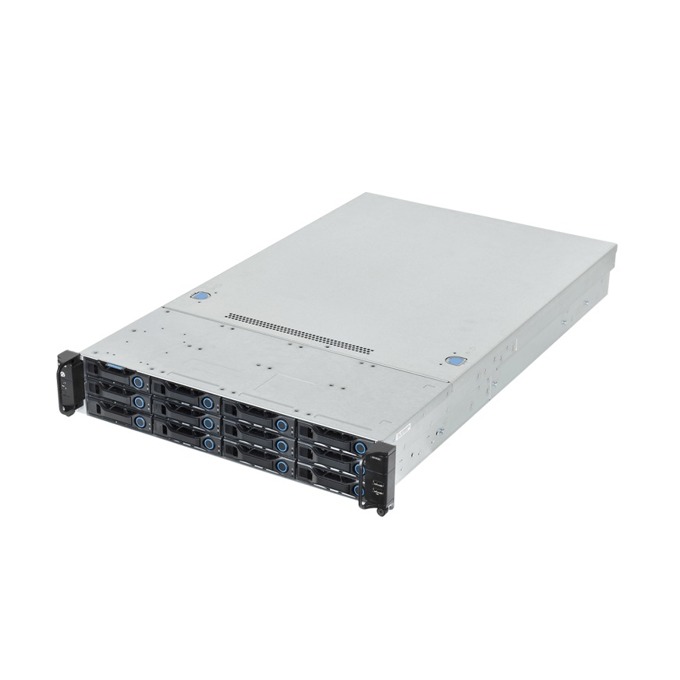

AIS 51B3/HRL

Model AIS-51B3/HRL
Form Factor Rackmount 2U
Processor / max pcs. and model 2x Intel® Xeon® Processor E5-2620 v3 (15M Cache, 2,4 GHz, HT, 8 GT/s Intel® VT-x, Intel® VT-d ) / max. 2 E5-26xxv3
Chipset Intel® C610 chipset
Max Memory Bandwidth 59 GB/s
Memory / max Memory / channels 256 GB DDR4 ECC reg. / max 1.5TB ECC LRDIMM / 4 ch
Slots (1) PCIe Gen3 x8 SAS mezzanine slot; (2) PCIe Gen3 x8, LP MD-2; (1) PCIe Gen3 x8 FHHL; (1) PCIe Gen3 x16 FHHL; (1) PCIe Gen3 x8 OCP LAN mezzanine slot
Bays 12x3.5"/2.5" hotswap
Storage controller QCT LSI 3108 12G RAID6 mezz
HDD / max HDD 12x 4TB SATA / max. 12
Hot plug yes
Networking 2x Intel® GbE LAN RJ45 ports( i350); 2x Intel® 10 GbE LAN RJ45 ports (X540)
Power supply 750W high efficiency 80+ gold redundant PSU, 100-240VAC 50/60Hz
I/O ports (2) USB 3.0 ports; (1) VGA port; (1) RS232 serial Port; (2) 1 GbE or 10G BASE-T RJ45 port; (1) GbE RJ45 management port;
Dimension 19" x 2U x 745mm
Other accessories rail incl.
Management Onboard BMC w/ IPMI and iKVM support on dedicated LAN
Part No. 48531
