Точка за достъп Aerohive AP230, 2.4GHz(450Mbps)/5GHz(1300Mbps), 2x 10/100/1000 Base-T, 1x USB, PoE, 6x вътрешни антени

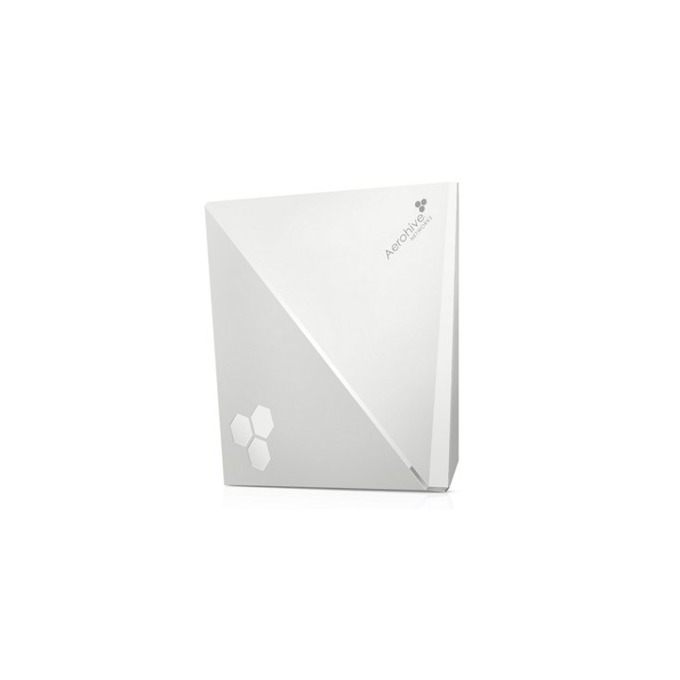

Aerohive AP230 Wireless Access Point
DNAP230I

AP230 sets a new price-to-performance standard for 802.11ac APs.
By combining the latest in 3x3, 3-stream 802.11ac Gigabit Wi-Fi technology
and advanced security and mobility management together
into an economical package it allows you to deploy 802.11ac into
every part of the network infrastructure – from corporate HQ to remote
branches and to every campus and classroom.

The AP230 provides high-performance, dual concurrent 2.4Ghz
802.11n/g/b radio and 5Ghz 802.11ac/n/a radio with beamforming and
interoperates with the rest of the Aerohive Cooperative Control devices
to provide a seamless enterprise-class experience for all connected users.
With HiveOS at its core and the ability to provide full Wi-Fi functionality
on legacy POE infrastructure, the AP230 allows enterprises of all sizes
to broadly deploy 802.11ac for their mobility future.

Radio Specifications—802.11a
• 5.150–5.850 GHz Operating Frequency
• Orthogonal Frequency Division Multiplexing (OFDM) Modulation
• Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback

Radio Specifications—802.11b
• 2.4–2.5GHz Operating Frequency
• Direct-Sequence Spread-Spectrum (DSSS) Modulation
• Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback

Radio Specifications—802.11g
• 2.4–2.5 GHz Operating Frequency
• Orthogonal Frequency Division Multiplexing (OFDM) Modulation
• 20 dBm (100 mW) Transmit Power
• Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback

Radio Specifications—802.11n
• 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency
• 802.11n Modulation
• Rates (Mbps): MCS0–MCS23 (6.5Mbps - 450Mbps)
• 3x3:3 Stream Multiple-In, Multiple-Out (MIMO) Radio
• HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz)
• HT40 High-Throughput (HT) Support for 5 GHz
• A-MPDU and A-MSDU Frame Aggregation

Radio Specifications—802.11ac
• 5.150–5.850 GHz Operating Frequency
• 802.11ac Modulation (256-QAM)
• Rates (Mbps): MCS0–MCS9 (6.5Mbps - 1300Mbps), NSS = 1-3.
• 3x3:3 Stream Multiple-In, Multiple-Out (MIMO) Radio
• VHT20/VHT40/VHT80 support

Included Mounting Options
• Wall Mount
• Ceiling Tile flush 15/16” and Wall Mount locking accessory
included with AP

Mounting
• Desktop
• Ceiling Tile Recessed 15/16”, 3/8”, 9/16” sold as an accessory
• Ceiling Tile flush 3/8”, 9/16” sold as an accessory
• Suspend Mount sold as an accessory
• Plenum Mount sold as an accessory
• Silhouette and Interlude sold as an accessory

Antennas
• 3x Integrated single band, 2.4-2.5 GHz Omni-directional antennas
• 3x Integrated single band, 5.1-5.8 GHz Omni-directional antennas

Interfaces
• Two Autosensing 10/100/1000 Base-T Ethernet ports.
PoE/PoE+ capability on one of the ports
• RJ-45 console port
• Standard USB port

Physical
• WxDxH: 7.25” x 7.25” x 1.87”(18.4 cm x 18.4 cm x 1.87cm)
[plus .25”, mounting hardware – 2.12” (5.4 cm) H total ]
• Weight: 1.6 lb ( 0.73 kg)

Environmental
• Operating: 0 to +40°C, Storage: -40 to +70°C
• Humidity: 95%

Environmental Compliance
• UL2043

Power Options (Sold Separately)
• 802.3af (minimum required) and/ or 802.3at
Power over Ethernet PoE Injector
• 12v DC external power adapter
• Aerohive switch products

Power Specifications
• AC/DC power adapter:
Input: 100–240 VAC, Output: 12v/2.0A
• PoE nominal input voltages:
48V, 0.35A, (802.3af) – 48V, 0.625A (802.3at)
• RJ-45 power input pins: Wires 4,5,7,8 or 1,2,3,6
• Power Draw : Typical 11.41W, Max 16.7W

Certifications
• WPA/WPA2
• Voice-Enterprise
