Name: Докинг станция Dell Pro Dock WD25, от USB-C към 2x USB-C, 4x USB-A, 2x DisplayPort, 1x HDMI, 1x RJ45, черна
Brand: Dell
SKU: DSMDELL210BRFQ
Price: 217.06 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

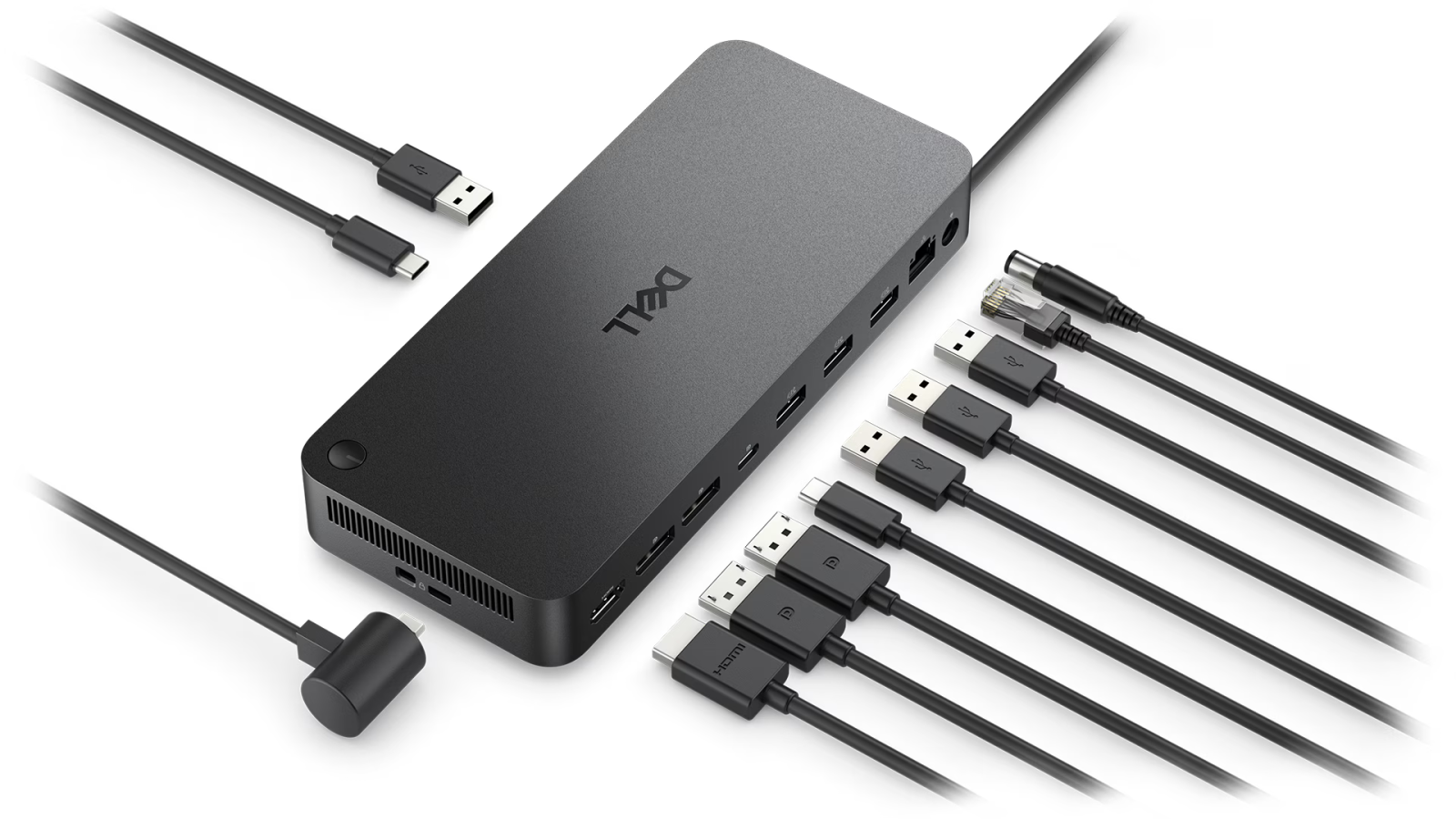

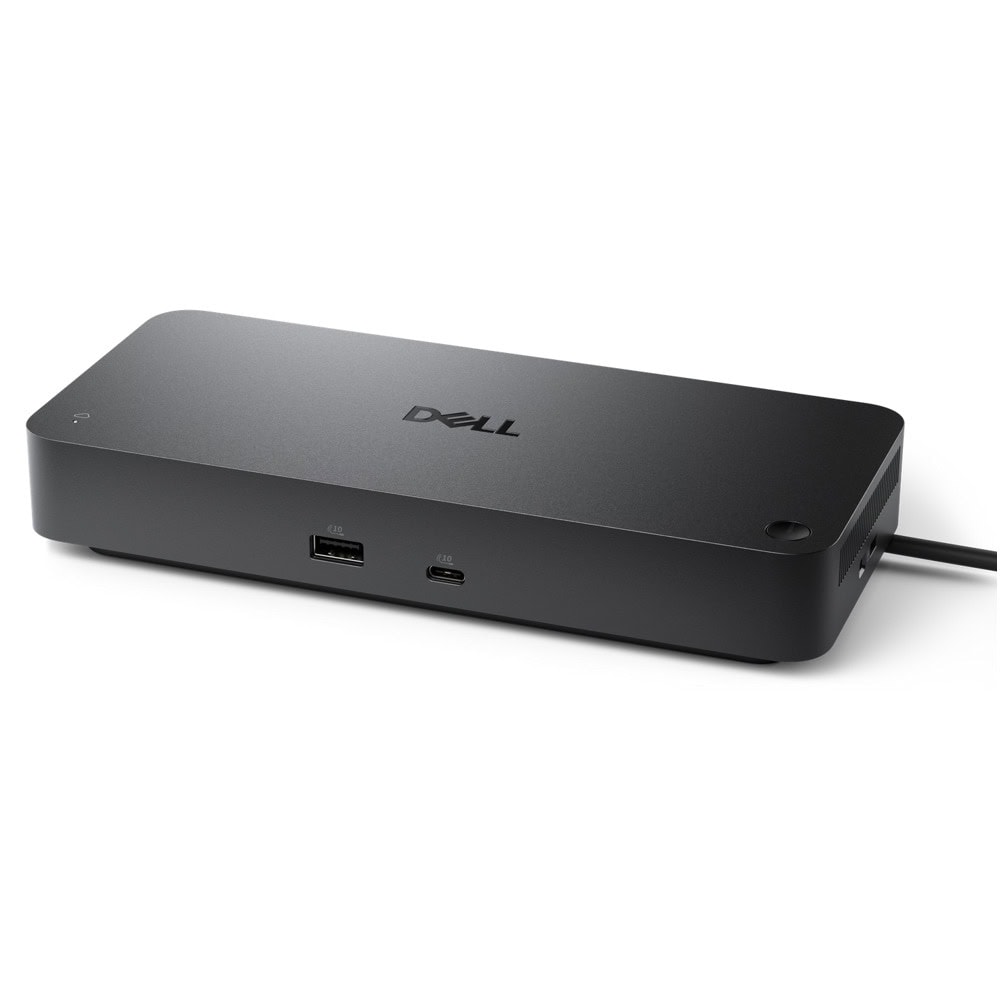

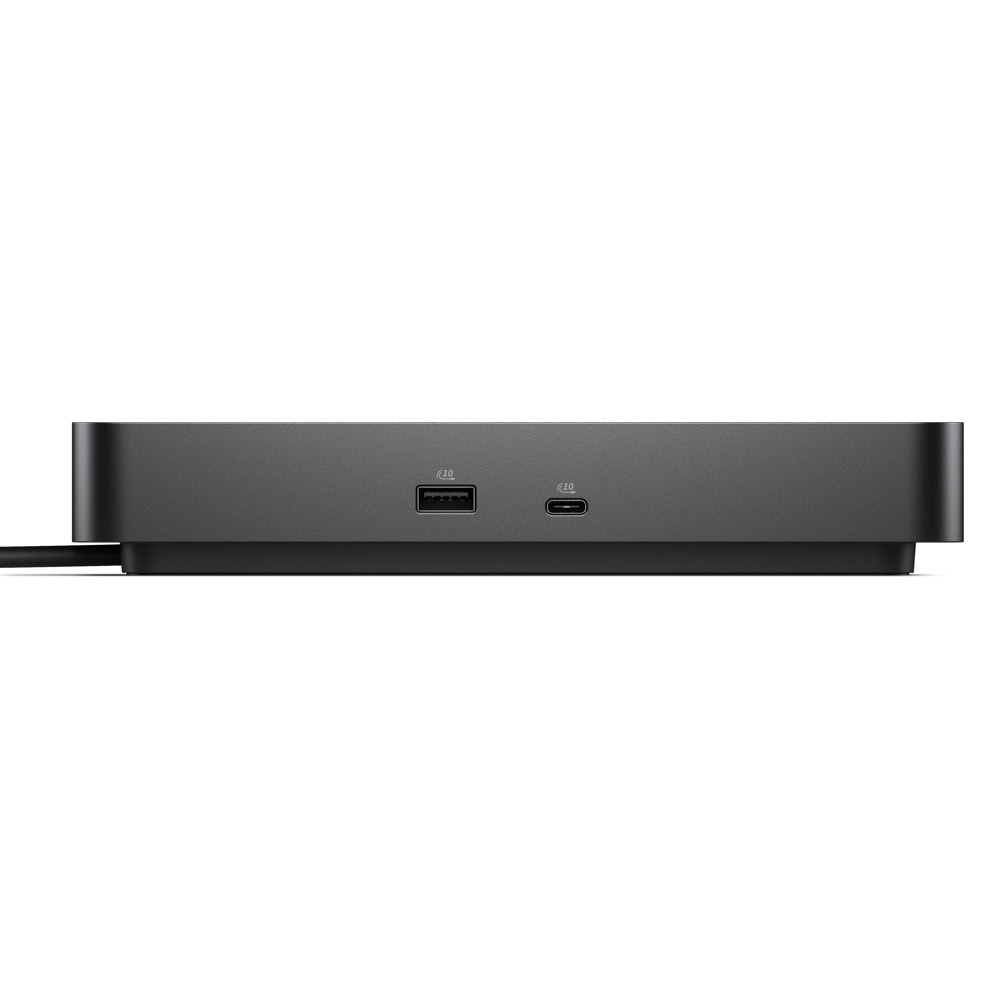

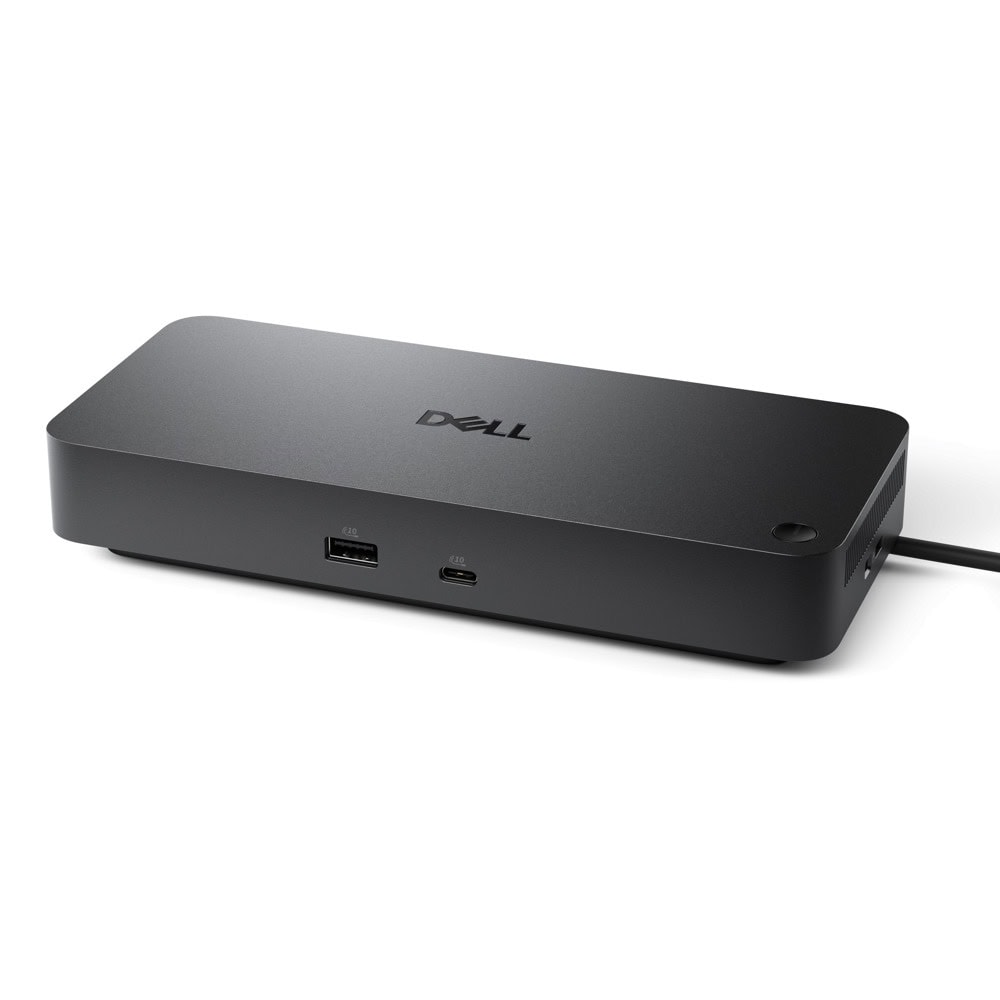

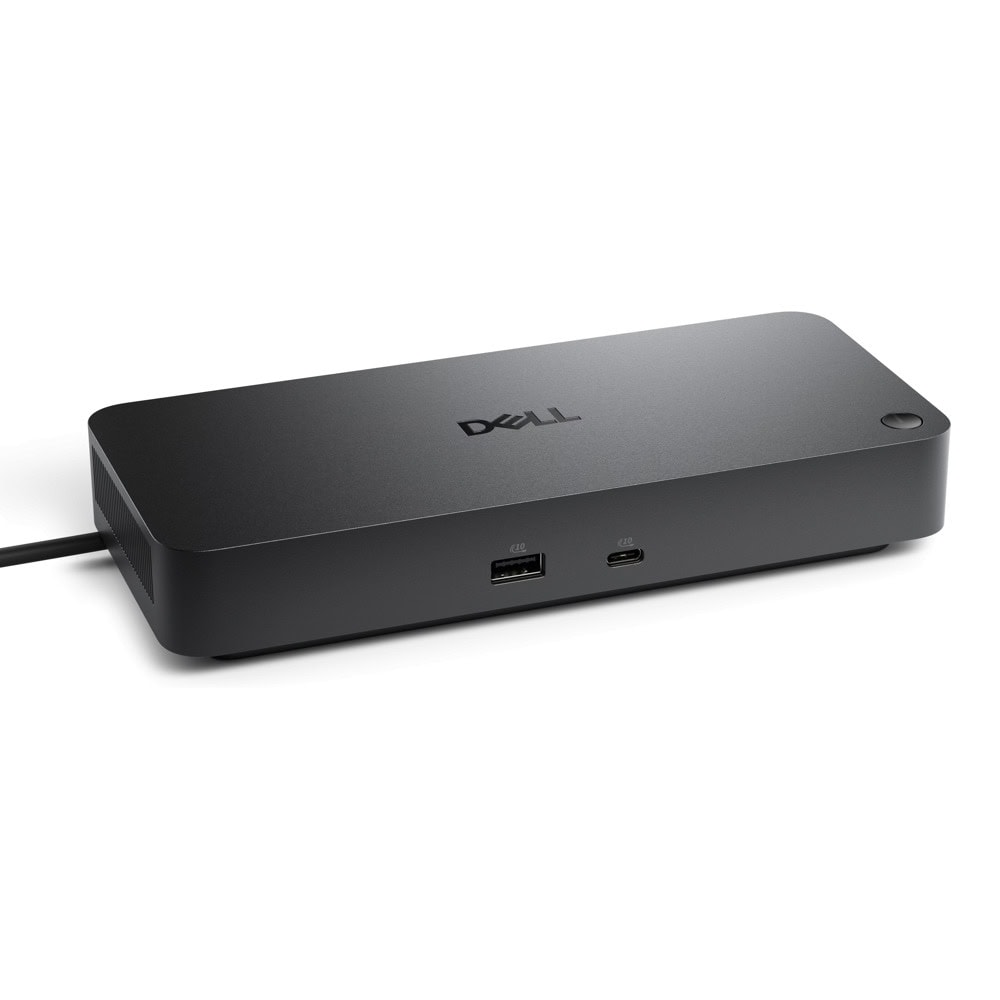

Dell Pro Dock WD25

More manageable

Keep your dock up to date and work without interruption.

Improved manageability
Manage your dock from the Dell Device Management Console by utilising Dell Display and Peripheral Manager installed on your PC.

Simplify firmware updates
Reduce IT complexity by deploying a single firmware file across workspaces.
Minimise end-user disruption with silent firmware updates that are executed upon dock disconnection.

Work with confidence
Enhance your docking experience with universally compatible features including MAC Address Pass-Through and Power Button Sync, for a better docking experience across brands.

Tech Specs

Technical Information

Connectivity Technology

Wired

Number of Displays Supported

Management Features

Host PC Management

MAC address pass-through
PXE Boot
Dock Power Button Sync
Wake-On-LAN
WLAN to LAN switch
Kernel Direct Memory Access (DMA) protection

Dock Management Features

Host PC based firmware update
Firmware update on disconnect
Port Disablement

Device Supported

Notebook

Video Resolution

DP1.4 with Display Stream Compression

4 x WQHD (3440 x 1440) @ 60Hz
3 x WQHD (3440 x 1440) @ 60Hz
2 x 5K (5120 x 2160) @ 60Hz
1 x 6K (6144 x 3456) @ 60Hz

DP1.4 without Display Stream Compression

Up to:

4 x HD (1280x720) @ 60Hz
3 x FHD (1920x1080) @ 60Hz
2 x QHD (2560x1440) @ 60Hz
1 x 4K (3840 x 2160) @ 60Hz

Network & Communication

Ethernet Technology

RJ45 Ethernet port, 2.5GbE

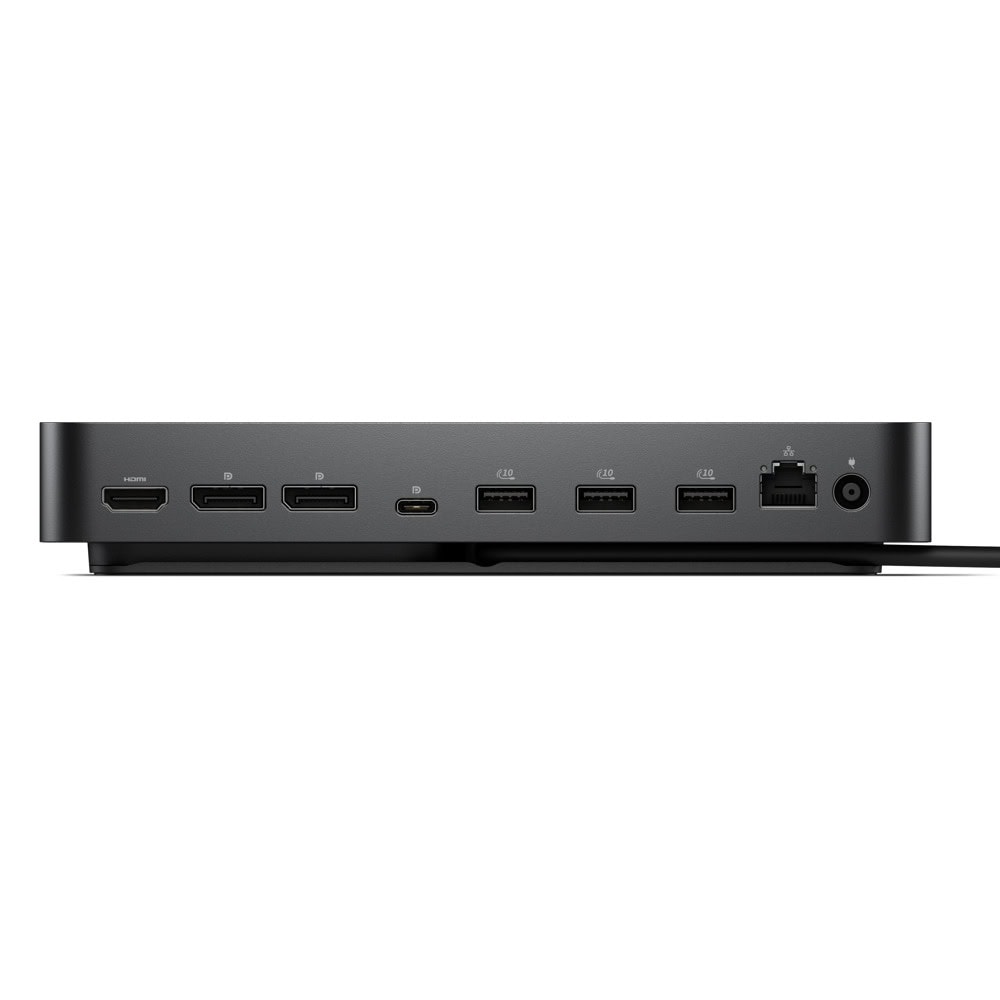

Interfaces/Ports

Interfaces

Video interfaces

2 x DP1.4
1 x HDMI 2.1
1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4

USB Ports (Data Only)

4 x USB-A 3.2 Gen 2 (10 Gbps)
1 x USB-C 3.2 Gen 2 (10 Gbps)

USB Power Delivery

100W (Dell systems)
96W (non-Dell systems)

USB Ports (Power)

4 x USB-A 3.2 Gen 2 (4.5W each)
1 x USB-C 3.2 Gen 2 (15W)
1 x USB-C Multi-function DisplayPort (7.5W)
All deliver power with or without PC

Software

Operating System Supported

Windows 10
Windows 11
Ubuntu
Red Hat Enterprise Linux
ChromeOS

Power Description

Maximum Power Supply Wattage

130W

Physical Characteristics

Height

205mm

Width

90mm

Depth

35.25mm

Weight (Approximate)

550 g

Miscellaneous

Kensington Security Slot

Yes

Виж още Докинг станции Dell
Виж всички Докинг станции в категорията

Документация

Технически характеристики

Изход
USB Type-А:	Да
USB Type-C:	Да
Lightning:	Не
USB 2.0:	Не
USB 3.X:	Да
USB 4.X:	Не
Thunderbolt:	Не
DisplayPort:	Да
Mini DisplayPort:	Не
HDMI:	Да
DVI:	Не
VGA (D-Sub):	Не
RJ45:	Да
Аудио изход:	Не
Четец на карти:	Не
