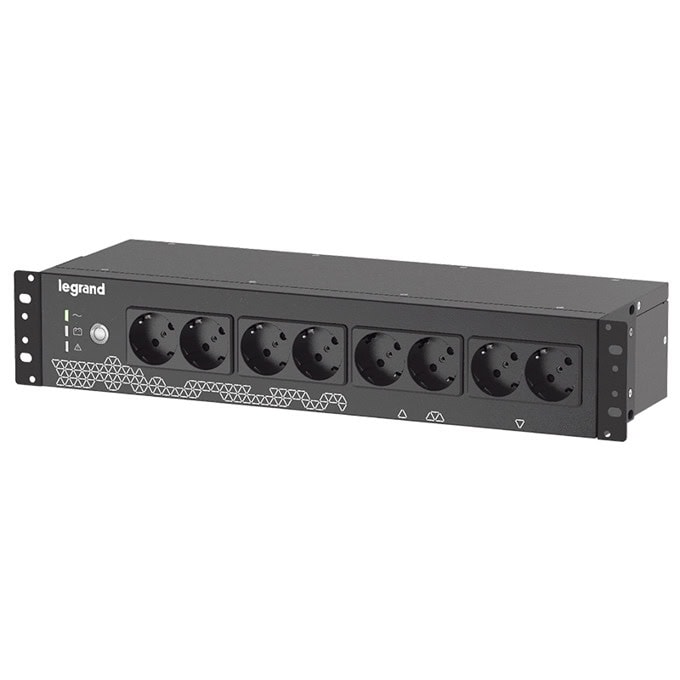

Name: UPS Legrand KEOR PDU 311017, 800VA/480W, Rack
Brand: Legrand
SKU: UPSLEGRAND311017
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси

Продуктови характеристики

- 8 Full - Protected Output
- 19" Rack Type
- USB Port
- High Efficiency

The + product

Инсталационни предимства
Rack compatible and ultra-easy setup

Предимства при употреба
User Friendly LED indicators, Replaceable fuse for overcurrent protection, front easy access to output plugs

Отличителни характеристики
Smart LEDs
Modern Legrand black/white design

Technical characteristics
Input voltage 160-290 V
Primary frequency 50-60 Hz
Number of phases primary 1
Output voltage 210-250 V
Secondary frequency 50-60 Hz
Output effective power 480 W
Output apparent power 800 VA
Number of phases secondary 1
SNMP No
Voltage type AC
Height 86 mm
Width 440 mm
Depth 148 mm
Weight 5.1 kg
Bridging time full load 360 min
Suitable for network-management No
USV- technology Offline
Construction type 482.6 mm (19 inch) device
Output power factor 0.6
Overall efficiency 98.95 %
Efficiency in eco-mode 98.95 %
Potential free switch contact No
Auto shut down function Yes
Number of output connections C13 8
Number of output connections C19 0
Number of output connections with protective contact CEE 7/3 (type F) 0
Number of output connections fixed connection 0
Degree of protection (IP) IP20
Operating / setting temperature 0-40 °C
Storage temperature -20-25 °C
Supply current 3.5-3.5 A
Sound level 40 dB
Terminal marking indication No
Type of load Universal
With socket outlet Yes
Contains Batteries and/or Accumulator Yes
IEC code (Pack1) VRLA
Battery ou Accumulator (Pack1) Accumulator (rechargeable)
Element Composition (Pack1) Lead
Number of Pack 1 1
Number of Single Element (Pack1) 1
Single Element weight (Pack1) 2050 g
Pack1 Location Product includes a battery
Regulation Type (Pack1) I : Industrial (not Portable)
