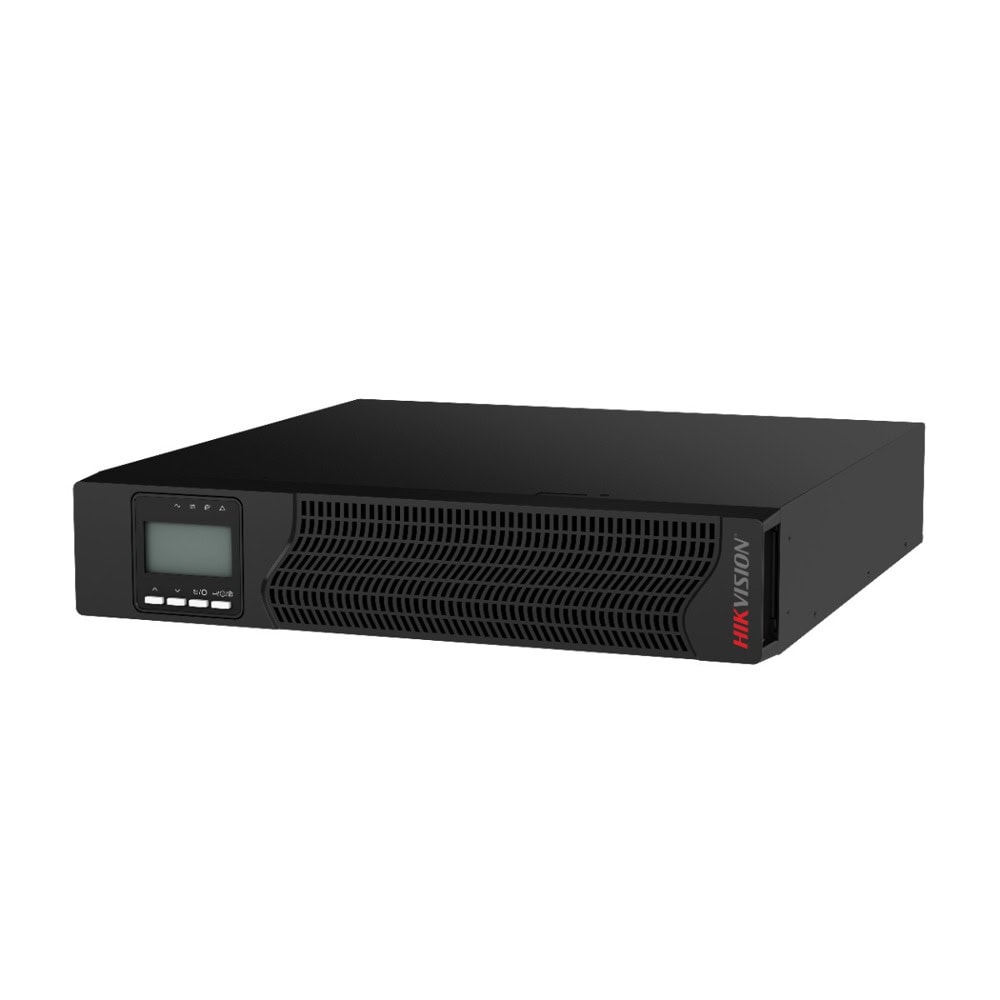

DS-UPS02K48-R/TJS
- Double conversion on-line design with input power factor correction (PFC) technology, achieving an input power factor of up to 0.99.
- Digital control system for enhanced stability and reliability.
- ECO operation mode for improved energy efficiency and reduced user costs.
- Three-stage charging: constant current charging, constant voltage charging, and floating charging stages are intelligently managed.
- Wide voltage input and frequency range for stable operation with different electrical scenario, and suit with various fuel generators.
- Comprehensive protections including output overload, output short-circuit, over-temperature, battery under-voltage warning, battery over-charging protection, and power-on self-diagnostic function;
.jpeg)
| Category | Specification |
|---|---|
| Power | UPS Capacity: 2000 VA / 1800 W |
| Input | Voltage Range: 110300Vac (176264Vac @ 100% load) |
| Frequency: 40~70Hz (50/60Hz Auto-Sensing) | |
| Nominal Voltage: 208/220/230/240Vac | |
| Phase: Single Phase | |
| Power Factor: ≥0.99 | |
| Output | Output Frequency (Online): 4654Hz or 5664Hz |
| Output Frequency (Battery): (50/60 ±0.1%) Hz | |
| Transfer Time (AC to Battery): 0ms | |
| Transfer Time (Inverter to Bypass): 4ms (Typical) | |
| Output Voltage: 208/220/230/240Vac | |
| Power Factor: 0.9 | |
| Output Sockets: IEC panel / EU panel / UK panel / US panel Optional | |
| Crest Factor: 3:1 | |
| Harmonic Distortion (THDv): ≤3% (Linear load), ≤5% (Non-linear load) | |
| Output Waveform: Pure Sinewave | |
| Battery | Type: Valve Regulated Lead Acid (VRLA) |
| Recharging Time: 4 hours (to 90% capacity) | |
| Capacity: 12V / 9Ah | |
| Number of Batteries: 4 | |
| DC System Voltage: 48V | |
| Max Charging Current: 1A | |
| Expandable Runtime: Yes, External battery pack: DS-UPSB0948B-R/TJC | |
| Indicator | Alarm: Battery mode / Battery low voltage / Overload / Fault |
| LCD Display: Input voltage, Input frequency, Output voltage, Output frequency, Load %, Battery voltage, Inner temp, Remaining battery backup time | |
| Efficiency | AC Mode: 91% |
| Battery Mode: 87% | |
| Environment | Operating Temperature: 0°C~40°C |
| Storage Temperature: -25°C~55°C | |
| Humidity: 2095% RH @ 040°C (Non-condensing) | |
| Altitude: <1500m (derating >1500m) | |
| Noise Level: <50dB at 1 meter | |
| Physical | Dimensions (W x D x H): 440 x 460 x 86.5 mm |
| Net Weight: 19.5 kg |
Виж още UPS Hikvision
Виж всички UPS в категорията
Технически характеристики
| Изходяща мощност: | 2000 VA |
|---|---|
| Тип: | ON Line |
| Формфактор: | Rack |
