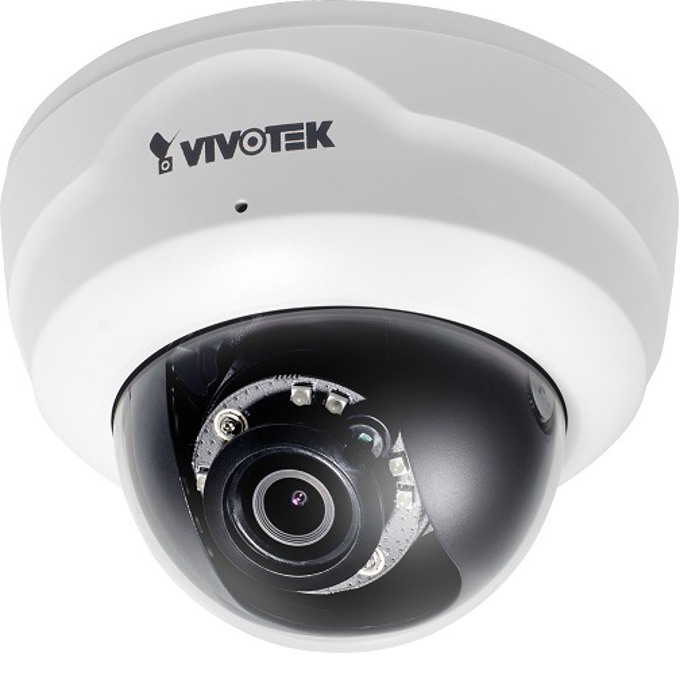

Name: AHD камера Vivotek FD8164-F2, куполна камера, 2Mpix HD 800p, 25 кад./сек., 3.6mm обектив, IR осветителност (до 15 метра), външна
Brand: Vivotek
SKU: SCMANVIVOTEKVVFD8164F2
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси

Specifications

System Information

CPU	Multimedia SoC (System-on-Chip)
Flash	128 MB
RAM	256 MB

Camera Features

Image sensor	1/2.7" Progressive CMOS
Maximum Resolution	1920x1080 (2MP)
Lens Type	Fixed-focal
Focal Length	f = 2.8 mm (FD8164-F2) f = 3.6 mm (FD8164-F3)
Aperture	F 2.0 (FD8164-F2) F 1.8 (FD8164-F3)
Field of View	FD8164-F2 120° (Horizontal) 68° (Vertical) 141° (Diagonal) FD8164-F3 95° (Horizontal) 51° (Vertical) 112° (Diagonal)
Shutter Time	1/5 sec. to 1/32,000 sec.
Day & Night	Removable IR-cut filter for day & night function
Minimum Illumination	FD8164-F2 0.33 Lux @ F2.0 , 50 IRE (Color) 0.001 Lux @ F2.0, 50 IRE (B/W) FD8164-F3 0.28 Lux @ F1.8, 50 IRE (Color) 0.001 Lux @ F1.8, 50 IRE (B/W)
Pan range	350°
Tilt range	60°
Rotation Range	350°
Pan / Tilt / Zoom	ePTZ 48x digital zoom ( 4x on IE plug-in,12x built-in )
IR Illuminators	Built-in IR illuminators, effective up to 15 meters IR LED*8
On-board Storage	MicroSD/SDHC/SDXC card slot

Video

Compression	H.264 & MJPEG
Maximum Frame Rate	30 fps @ 1920x1080 In both compression modes
Maximum Streams	2 simultaneous streams
S/N Ratio	Above 53 dB
Dynamic Range	54.5 dB
Video Streaming	Adjustable resolution, quality and bit rate Configurable video cropping for bandwidth saving
Image Settings	Adjustable image size, quality and bit rate Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings 3D Noise Reduction

Audio

Audio Capability	Audio input
Compression	G.711
Interface	Built-in microphone
Effective Range	5 meters

Network

Users	Live viewing for up to 10 clients
Protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
Interface	10Base-T / 100BaseTX Ethernet (RJ-45) * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.
ONVIF	Supported, specification available at www.onvif.org

Intelligent Video

Video Motion Detection

Triple-window video motion detection

Alarm and Event

Alarm Triggers	Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
Alarm Events	Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server

General

Connectors	RJ-45 cable connector for Network/PoE connection Digital input * 1
LED Indicator	System power and status indicator
Power input	IEEE 802.3af PoE Class 2
Power consumption	Max. 5.1 W
Dimensions	Ø: 127 mm x 91 mm
Weight	Net: 440 g
Safety Certifications	CE C-Tick FCC ( Class B ) LVD VCCI
Operating Temperature	0°C ~ 50°C (32°F~ 122°F)
Warranty	24 Months

System Requirements

Operating System	Microsoft Windows 7 / Vista / XP / 2000
Browser	Mozilla Firefox 7~10 ( Streaming only ) Internet Explorer 7/8/9
Other Players	VLC: 1.1.11 or above QuickTime: 7 or above
